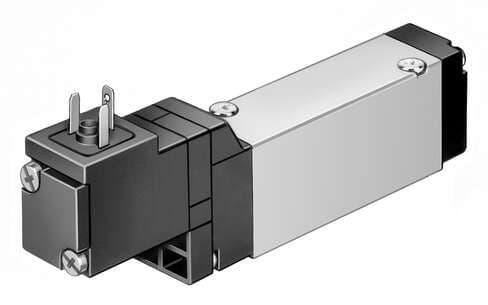

173011 Festo Directional Control Valves

Product Details

• Width
  17.8 mm
• Standard nominal flow rate
  700 l/min
• Nominal width
  5 mm
• Sealing principle
  Soft
• Symbol
  00991023
• On switching time
  15 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot air port 14
  Sub-base
• Pneumatic connection 3
  Sub-base
• Seals material
  HNBR NBR
• Actuation type
  Electrical
• Operating pressure
  2.5 bar ... 8 bar
• Certification
  c UL us - Recognized (OL)
• Manual override
  Detenting via accessory
• Flow direction
  Non-reversible
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Noise level
  75 dB(A)
• Product weight
  105 g
• Valve function
  5/2, monostable
Pneumatic working port
Sub-base
Reset method
Pneumatic spring
Width dimension
18 mm
Mounting position
Any
b-value
0.38
C value
2.75 l/sbar
Storage temperature
-20 °C ... 40 °C
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
Sub-base
Pneumatic connection 1
Sub-base
Pneumatic connection 4
Sub-base
Lap
Overlap
Degree of protection
IP65
Type code
MEBH
Type of control
Pilot-controlled
Pilot pressure
2.5 bar ... 8 bar
Duty cycle
100%
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82/84
Sub-base
Type of mounting
On sub-base
Pneumatic connection 5
Sub-base
Housing material
Die-cast aluminum
Operating voltage
24V DC
Design
Piston gate valve
Exhaust air function
With flow control option
Pilot air supply port
Internal
Switching time off
18 ms
Coil characteristics
24 V DC: 2.5 W
Temperature of medium
-5 °C ... 50 °C
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Form C Rectangular design
Pneumatic connection 2
Sub-base
Note on materials
RoHS-compliant
