173060 Festo Directional Control Valves
Part#:173060
Alt. Part#:MEBH-5/2-1/8-P-S-B-110AC
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

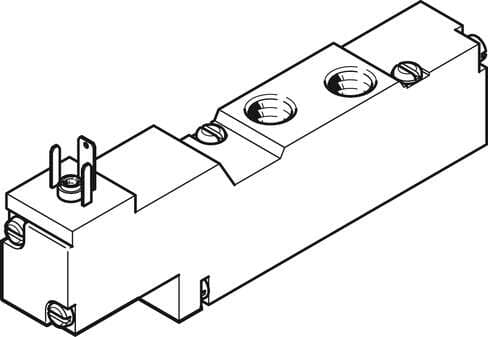

solenoid valve MEBH-5/2-1/8-P-S-B-110AC With solenoid coil and manual override, without plug socket. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 17,8 mm, Standard nominal flow rate: 600 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Width 17.8 mm
- Operating pressure -0.9 bar ... 10 bar
- Certification c UL us - Recognized (OL)
- Sealing principle Soft
- Symbol 00991025
- Switching time off 28 ms
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Pneumatic working port G1/8
- Degree of protection IP65
- Type code MEBH
- Type of control Pilot-controlled
- Manual override Detenting via accessory
- b-value 0.36
- Coil characteristics 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- CE marking (see declaration of conformity) As per EU low voltage directive
- Temperature of medium -5 °C ... 50 °C
- Electrical connection Form C Rectangular design
- Pneumatic connection 1 Sub-base
- Lap Overlap
- Reset method Mechanical spring
- Width dimension 18 mm
- Pilot air supply port External
- Duty cycle 100%
- Storage temperature -20 °C ... 40 °C
- Product weight 105 g
- Note on materials RoHS-compliant
- Seals material HNBR NBR
- Valve function 5/2, monostable
- Standard nominal flow rate 600 l/min
- Design Piston gate valve
- Nominal width 5 mm
- Mounting position Any
- Flow direction Reversible
- C value 2.55 l/sbar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Noise level 75 dB(A)
- Pilot exhaust air port 82/84 Sub-base
- Pneumatic connection 3 Sub-base
- Housing material Die-cast aluminum
- Actuation type Electrical
- Operating voltage 110V AC
- Exhaust air function With flow control option
- Pilot pressure 2.5 bar ... 8 bar
- On switching time 10 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -5 °C ... 50 °C
- Pilot air port 12 M3
- Pneumatic connection 4 G1/8
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting On terminal strip
- Pneumatic connection 2 G1/8
- Pneumatic connection 5 Sub-base
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
