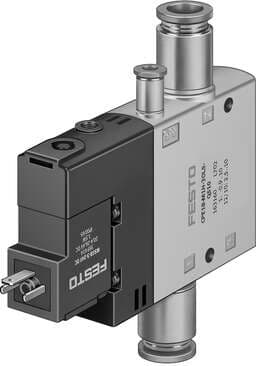

163177 Festo Directional Control Valves

Product Details

• Operating voltage
  24V DC
• Lap
  Overlap
• Standard nominal flow rate
  1250 l/min
• Design
  Piston gate valve
• Type code
  CPE24
• Sealing principle
  Soft
• Valve position ID
  Label holder
• On switching time
  50 ms
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
• Housing material
  Die-cast aluminum
• Maritime classification
  See certificate
• Width
  24 mm
• Degree of protection
  IP65 as per IEC 60529
• Manual override
  Detenting via accessory Non-detenting
• Symbol
  00991405
• Max. positive test pulse with 0 signal
  3300 µs
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
Electrical connection
Form C
Note on materials
RoHS-compliant
Valve function
3/2, closed, monostable
Pneumatic working port
QS-10
Reset method
Pneumatic spring
Mounting position
Any
Pilot air supply port
External
Duty cycle
100%
Coil characteristics
24 V DC: 1.5 W
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
M5
Pneumatic connection 3
G3/8
Pneumatic connection 2
QS-10
Actuation type
Electrical
Operating pressure
-0.9 bar ... 10 bar
Nominal width
11 mm
Flow direction
Non-reversible
Pilot pressure
2.5 bar ... 10 bar
Permissible voltage fluctuations
-15 % / +10 %
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 1
QS-10
Seals material
NBR
Certification
c UL us - Recognized (OL)
Type of control
Pilot-controlled
Switching time off
33 ms
Max. negative test pulse on 1 signal
3100 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
