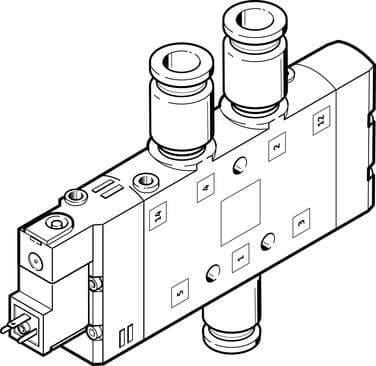

163174 Festo Directional Control Valves

Product Details

• Pneumatic working port
  QS-10
• Reset method
  Pneumatic spring
• Nominal width
  11 mm
• Flow direction
  Non-reversible
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Temperature of medium
  -5 °C ... 50 °C
• Pneumatic connection 2
  QS-10
• Pneumatic connection 5
  G3/8
• Pilot exhaust air port 82
  M5
• Actuation type
  Electrical
• Operating voltage
  24V DC
• Degree of protection
  IP65 as per IEC 60529
• Sealing principle
  Soft
• Pilot air supply port
  Internal
• On switching time
  40 ms
• Max. positive test pulse with 0 signal
  3300 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Type of mounting
  With through-hole
Pilot air port 14
M5
Pneumatic connection 1
QS-10
Valve function
5/2, monostable
Width
24 mm
Standard nominal flow rate
1250 l/min
Type code
CPE24
Manual override
Detenting via accessory Non-detenting
Symbol
00991023
Coil characteristics
24 V DC: 1.5 W
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 84
M5
Pneumatic connection 4
QS-10
Housing material
Die-cast aluminum
Lap
Overlap
Operating pressure
2.5 bar ... 10 bar
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Switching time off
50 ms
Max. negative test pulse on 1 signal
3100 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Seals material
NBR
Maritime classification
See certificate
Design
Piston gate valve
Certification
c UL us - Recognized (OL)
Mounting position
Any
Valve position ID
Label holder
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot air port 12
M5
Pneumatic connection 3
G3/8
Note on materials
RoHS-compliant
