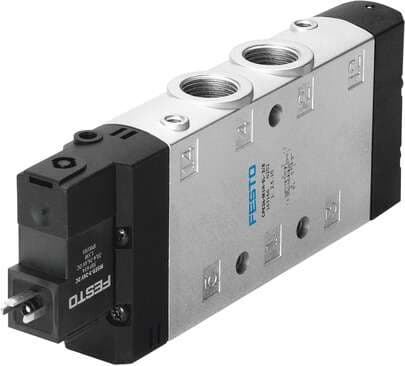

163166 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Width
  24 mm
• Reset method
  Pneumatic spring
• Certification
  c UL us - Recognized (OL)
• Exhaust air function
  With flow control option
• Valve position ID
  Label holder
• Max. negative test pulse on 1 signal
  3100 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Product weight
  360 g
• Pilot air port 12
  M5
• Housing material
  Die-cast aluminum
• Actuation type
  Electrical
• Pneumatic working port
  G3/8
• Degree of protection
  IP65 as per IEC 60529
• Mounting position
  Any
• Pilot air supply port
  Internal
• Symbol
  00991023
• On switching time
  40 ms
• Permissible voltage fluctuations
  -15 % / +10 %
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot air port 14
M5
Pneumatic connection 4
G3/8
Note on materials
RoHS-compliant
Operating voltage
24V DC
Design
Piston gate valve
Type code
CPE24
Type of control
Pilot-controlled
Switching time off
50 ms
Coil characteristics
24 V DC: 1.5 W
Temperature of medium
-5 °C ... 50 °C
Type of mounting
With through-hole
Pilot exhaust air port 84
M5
Pneumatic connection 2
G3/8
Pneumatic connection 5
G3/8
Maritime classification
See certificate
Operating pressure
2.5 bar ... 10 bar
Nominal width
11 mm
Manual override
Detenting via accessory Non-detenting
Max. positive test pulse with 0 signal
3300 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
G3/8
Seals material
NBR
Valve function
5/2, monostable
Standard nominal flow rate
2900 l/min
Sealing principle
Soft
Flow direction
Non-reversible
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
Form C
Pilot exhaust air port 82
M5
Pneumatic connection 3
G3/8
