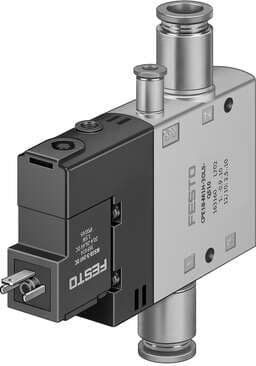

163152 Festo Directional Control Valves

Product Details

• Maritime classification
  See certificate
• Standard nominal flow rate
  850 l/min
• Reset method
  Pneumatic spring
• Sealing principle
  Soft
• Mounting position
  Any
• Max. positive test pulse with 0 signal
  3300 µs
• On switching time
  28 ms
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pneumatic connection 2
  QS-8
• Note on materials
  RoHS-compliant
• Design
  Piston gate valve
• Type code
  CPE18
• Symbol
  00991402
• Duty cycle
  100%
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Electrical connection
  Form C
• Actuation type
  Electrical
• Operating voltage
  24V DC
Nominal width
8 mm
Manual override
Detenting via accessory Non-detenting
Pilot air supply port
External
Switching time off
18 ms
Max. negative test pulse on 1 signal
3100 µs
Coil characteristics
24 V DC: 1.5 W
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
M5
Pneumatic connection 3
G1/4
Seals material
NBR
Certification
c UL us - Recognized (OL)
Valve function
3/2, open, monostable
Pneumatic working port
QS-8
Degree of protection
IP65 as per IEC 60529
Type of control
Pilot-controlled
Valve position ID
Label holder
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Lap
Overlap
Width
18 mm
Operating pressure
-0.9 bar ... 10 bar
Flow direction
Non-reversible
Pilot pressure
2.5 bar ... 10 bar
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Pneumatic connection 1
QS-8
Housing material
Die-cast aluminum
