1132954 Festo Grippers

1132954 on Powermatic Associates
Festo

Part#:1132954

Manufacturer:Festo

Alt. Part#:HGPD-63-A

Product Lifecycle:Active

Get a quick Quote!

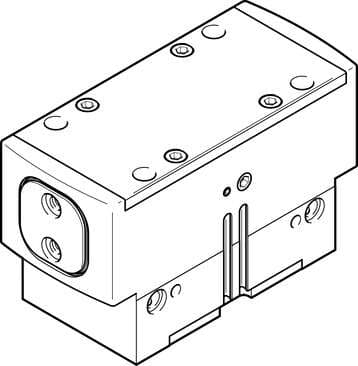

parallel gripper HGPD-63-A Size: 63, Stroke per gripper jaw: 16 mm, Max. replacement accuracy: <: 0,2 mm, Max. angular gripper jaw backlash ax,ay: <: 0,1 deg, Max. gripper jaw backlash Sz: <: 0,02 mm

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1132954 Festo price in the box on the right side or send a quick quote.

Product Details

  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. gripper jaw backlash Sz
    ≤ 0.02 mm
  • Mode of operation
    Double-acting
  • Design
    Inclined plane Positively driven motion sequence
  • Total gripping force at 6 bar, closing
    1856 N
  • Max. interchangeability
    ≤ 0.2 mm
  • Type code
    HGPD
  • Position sensing
    For proximity sensor
  • Operating pressure
    3 bar ... 8 bar
  • Min. opening time at 6 bar
    150 ms
  • Size
    63
  • Max. gripper jaw angular play ax, ay
    ≤ 0.1 deg
  • Stroke per gripper jaw
    16 mm
  • Rotational symmetry
    ≤ 0.2 mm
  • Number of gripper jaws
    2
  • Symbol
    00991894
  • Max. operating frequency of pneumatic gripper
    ≤ 2 Hz
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic gripper repetition accuracy
    ≤ 0.05 mm
  • Mounting position
    Any
  • Gripper function
    Parallel
  • Total gripping force at 6 bar, opening
    1935 N
  • Operating pressure for sealing air
    0 bar ... 0.5 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Ambient temperature
    5 °C ... 60 °C
  • Maximum torque on gripper jaw, My static
    80 Nm
  • Product weight
    3365 g
  • Note on materials
    RoHS-compliant
  • Housing material
    Aluminum Anodized
  • Min. closing time at 6 bar
    162 ms
  • Maximum force on gripper jaw Fz, static
    3000 N
  • Mass moment of inertia
    80.33 kgcm²
  • Sealing air pneumatic connection
    M5
  • Degree of protection
    IP65
  • Gripping force per gripper jaw at 6 bar, closing
    928 N
  • Relubrication interval for guidance elements
    5000000 MioCyc
  • Max. mass per external gripper finger
    1340 g
  • Gripper jaw material
    Steel Hardened
  • Gripping force per gripper jaw at 6 bar, opening
    967 N
  • Maximum torque on gripper jaw, Mz static
    65 Nm
  • Cover cap material
    High-alloy stainless steel
  • Maximum torque on gripper jaw, Mx static
    120 Nm
  • Type of mounting
    Optionally: With internal thread and dowel pin
  • Pneumatic connection
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1132954 Specs

1132954 1132954 DataSheet.pdf
