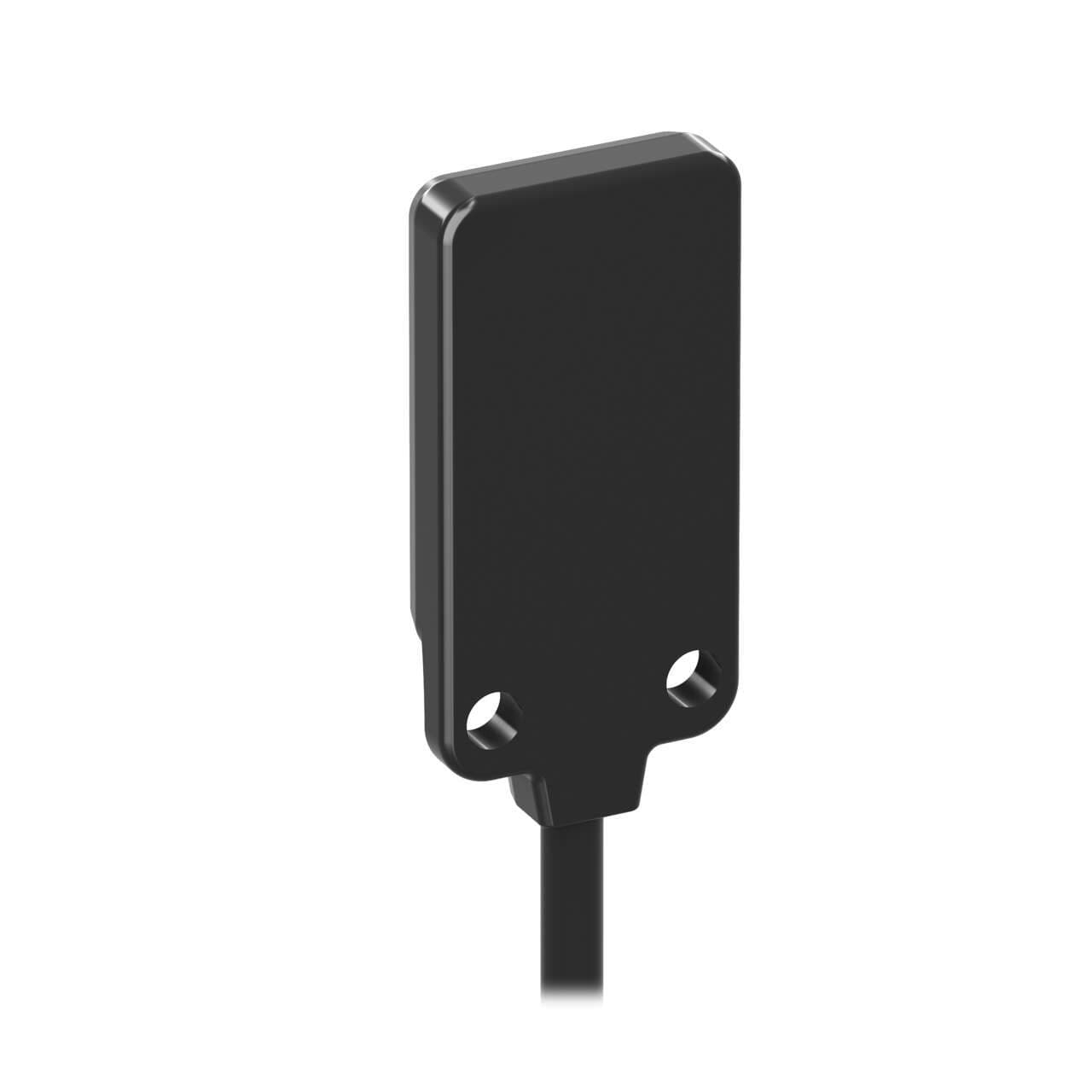

VS2AN5C15 Banner Proximity Sensors
Part#:VS2AN5C15
Alt. Part#:72777
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS2 AN5C15 NPN Light Operate
Product Details
- Weight 54.43104 g
- Country Of Origin MX
- IO Link No
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- DeviceNet No
- Feature: Encapsulated No
- Feature: Audible No
- Indicator LEDs
- Barrel Diameter (mm) N/A
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver N/A
- Adjustments N/A
- Lens Material MABS
- Max Op. Relative Humidity [%] 80% @ 50°C
- NEMA Rating NEMA 6
- Number of Pins 3
- IP Rating IP67
- Repeatability (µs) 100
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Sensing Beam Wavelength 940
- Special Feature: Remote Teach No
- Min Op. Temp. (°C) -20
- Max Op. Temp. (°C) 55
- Quick Disconnect Type No QD
- Special Feature: Intrinsically Safe No
- Output response time (ms) 1 ON/0.5 OFF
- Operation Light Operate
- Connection Cable
- Power Supply/Supply Voltage 10-30 V dc
- Outputs NPN
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 15
- Input/Output Discrete
- Housing Style Rectangular
- Sensing Mode (Detailed) Convergent
- Sensing Mode (General) Proximity
- Cable Length (m) 2
- Sensing Beam Infrared LED
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS2AN5C15 on Powermatic Associates is $111.00. Order now.
About the product
Banner Engineering VS2AN5C15 is a photo-electric sensor constructed with a thermoplastic housing MABS lns. and designed for a sensing distance of 15mm. It operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environmental conditions. This sensor features a light-ON operating mode and is equipped with 1 x digital output (NPN transistor) for signal processing. It boasts a rapid response time of 1ms / 0.001 s and utilizes a pre-wired 6.5ft / 2m cable with bare end flying leads for connection. The rectangular-shaped sensor operates with a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and emits an infrared (IR) light at a wavelength of 660 nm. Its design is based on convergent mode, part of the VS2 series, tailored for precise photo-electric sensing applications.
