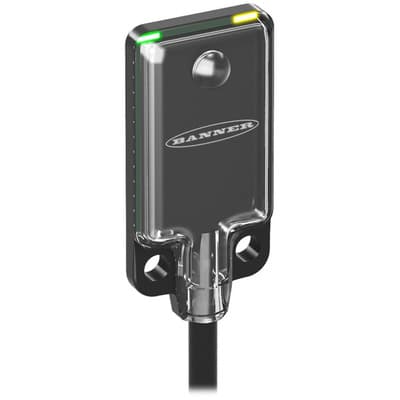

VS2AN5R-75350 Banner Sensors & Transducers

Name: VS2AN5R-75350
Brand: Banner

Part#:VS2AN5R-75350

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

Photo-electric sensor receiver with through-beam system / opposed mode - Banner Engineering (VS2 series) - Part #75350 - Sensing range 3m - Infrared (IR) light (940nm) - 1 x digital output (NPN transistor) (Light-ON operation) (NO (Normally Open) function

Product Details

Primary brand
Banner Engineering
Sensing distance
3m
Shape
Rectangular
Response time
(ON) 1ms / 0.001 s(OFF) 0.5ms / 0.0005 s
Compliant with standard(s)
CE
Sub-range name
VS2 series
Design
through-beam system / opposed mode
Operating mode
Light-ON NO (Normally Open)
Material
thermoplastic housing MABS lns.
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Light Color
Infrared (IR)
Degree of protection
IP67 NEMA 6
Wavelength
940 nm
Digital outputs
1 x digital output (NPN transistor)
Equivalent to
VS2AN5R75350
Main function
Sensor (Photo-electric)
Functions
Photo-electric sensor receiver green LED (power ON) amber LED (light sensed)
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Order code / Manufacturer SKU
75350
Ambient air temperature for operation
-20...+55 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

VS2AN5R-75350 Related Documents

Banner Engineering - VS2 series - Datasheet.pdf

Similar products from: Banner Sensors & Transducers

QM42VT1

Banner

Banner Engineering QM42VT1 is a sensor designed for machine vibration and ambient temperature monitoring. It features a 1-wire serial interface and comes pre-wired with a 3m pigtail that terminates with a 5-pin Euro-style M12 connector. As part of the QM42VT series, this sensor offers a degree of protection rated at IP67 NEMA 6, making it suitable for harsh environments. It operates on a supply voltage range of 3.6Vdc to 5.5Vdc, with a nominal voltage of 5Vdc. The QM42VT1 has a rectangular shape and is constructed with a zinc alloy housing. It is capable of measuring temperatures ranging from -40 to +105°C and includes 1 x digital output (NPN transistor) for signal processing.

3 in stock

Manufacturer warranty

VS2AN5R-75350 Banner

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare VS2AN5R-75350 with other Sensors & Transducers products

Primary brand

Sensing distance

Shape

Response time

Compliant with standard(s...

Sub-range name

Design

Operating mode

Material

Supply voltage (DC)

Selected product

Backordered

VS2AN5R-75350

Banner

Photo-electric sensor receiver with through-beam system / opposed mode - Banner Engineering (VS2 ser...

Primary brandBanner Engineering

Sensing distance3m

ShapeRectangular

Response time(ON) 1ms / 0.001 s(OFF) 0.5m...

Compliant with standard(s)CE

Sub-range nameVS2 series

Designthrough-beam system / oppose...

Operating modeLight-ON NO (Normally Open)

Materialthermoplastic housing MABS l...

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc n...

3 in stock

QM42VT1

Banner

Banner Engineering QM42VT1 is a sensor designed for machine vibration and ambient temperature monito...

Primary brandBanner Engineering

Sensing distance-

ShapeRectangular

Response time-

Compliant with standard(s)-

Sub-range nameQM42VT

Design1-wire serial interface

Operating mode-

Material-

Supply voltage (DC)3.6Vdc-5.5Vdc (5Vdc nom.)

8 in stock

E3X-HD11 2M

Omron

E3X-HD11 2M, Advanced Digital Fiber Amplifier, Amplifier type: Easy usage, Digital, Color mark detec...

Primary brand-

Sensing distance-

Shape-

Response time-

Compliant with standard(s)-

Sub-range name-

Design-

Operating mode-

Material-

Supply voltage (DC)-

About the manufacturer

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Relevant products

VS2AN5CV30Q5

Verified stock: 0

Banner Engineering VS2AN5CV30Q5 is a photo-electric sensor with a thermoplastic housing MABS lns. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environments with an operational ambient air temperature range of -20 to +55 °C. This sensor operates in Light-ON mode and features a single digital output (NPN transistor) with a rapid response time of 1ms / 0.001 s. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for easy installation. The rectangular-shaped sensor operates at a wavelength of 660 nm, emitting visible red light. It is designed for convergent mode operation with a sensing distance of 30mm. The VS2AN5CV30Q5 requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is part of the VS2 series.

Banner

VS2AP5RQ5

Verified stock: 0

Banner VS2AP5RQ5 - VS2 AP5RQ5 6 in 4-PIN M12 PNP Light Operate

Banner

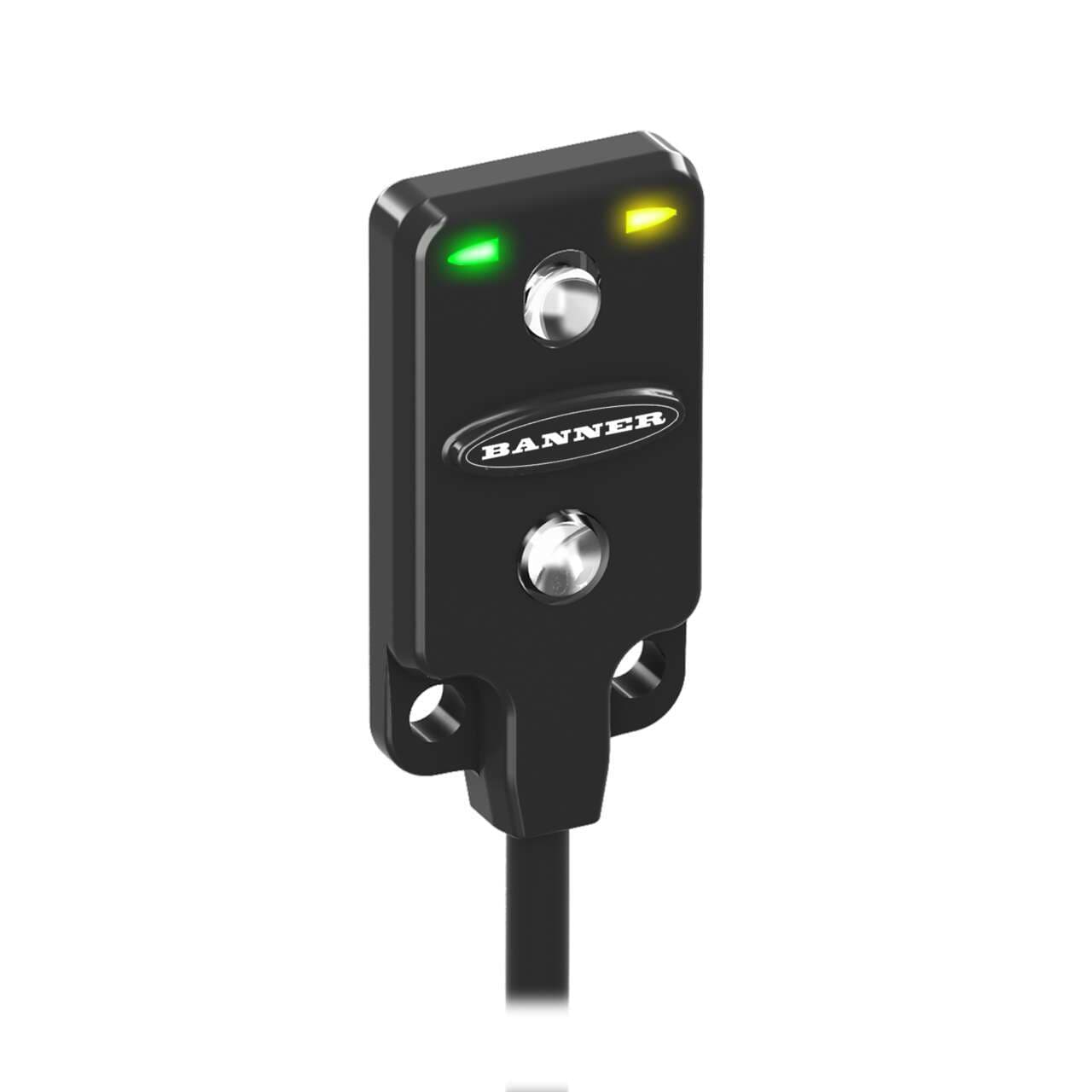

VS2AN5CV15

Verified stock: 0

VS2 Series: Convergent; Focal Point: 15 mm; Input: 10-30 V dc; Output: NPN Light Operate; 2 m (6.5 ft) Cable

Banner

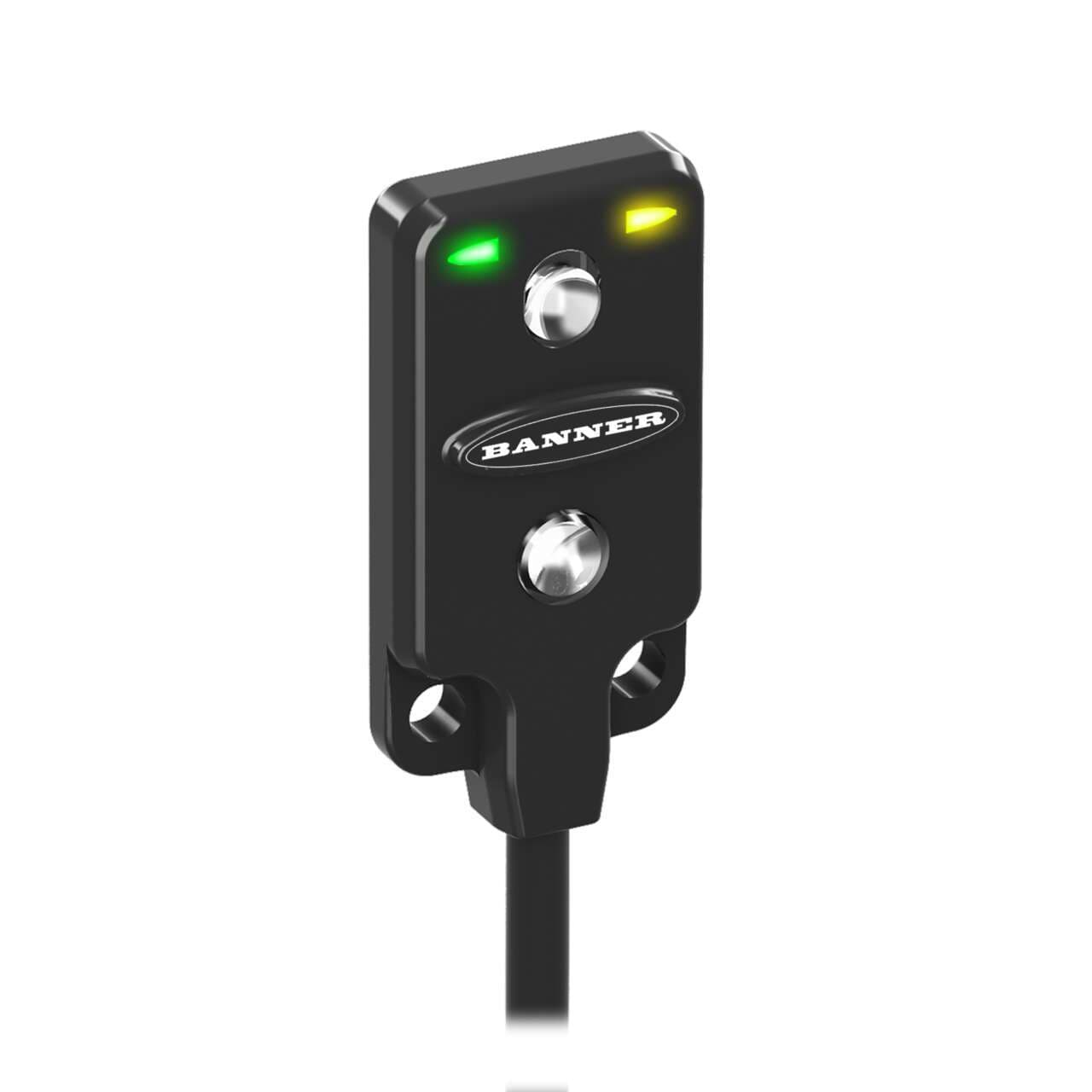

VS2AN5CV30

Verified stock: 0

VS2 Series: Convergent; Focal Point: 30 mm; Input: 10-30 V dc; Output: NPN Light Operate; 2 m (6.5 ft) Cable

Banner

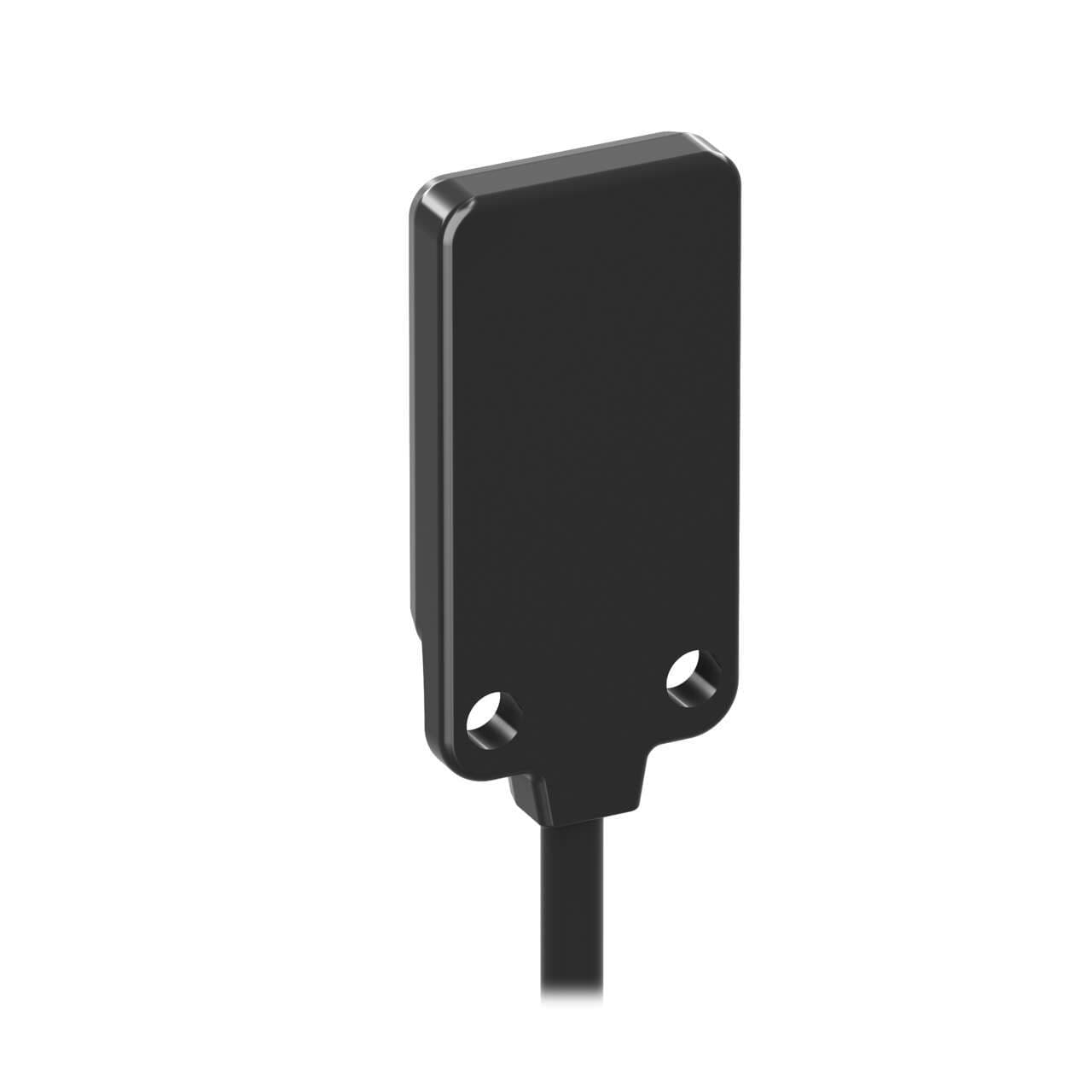

VS2AP5CV15Q5
