VS1AP5C20Q

Banner

Product Lifecycle: Active

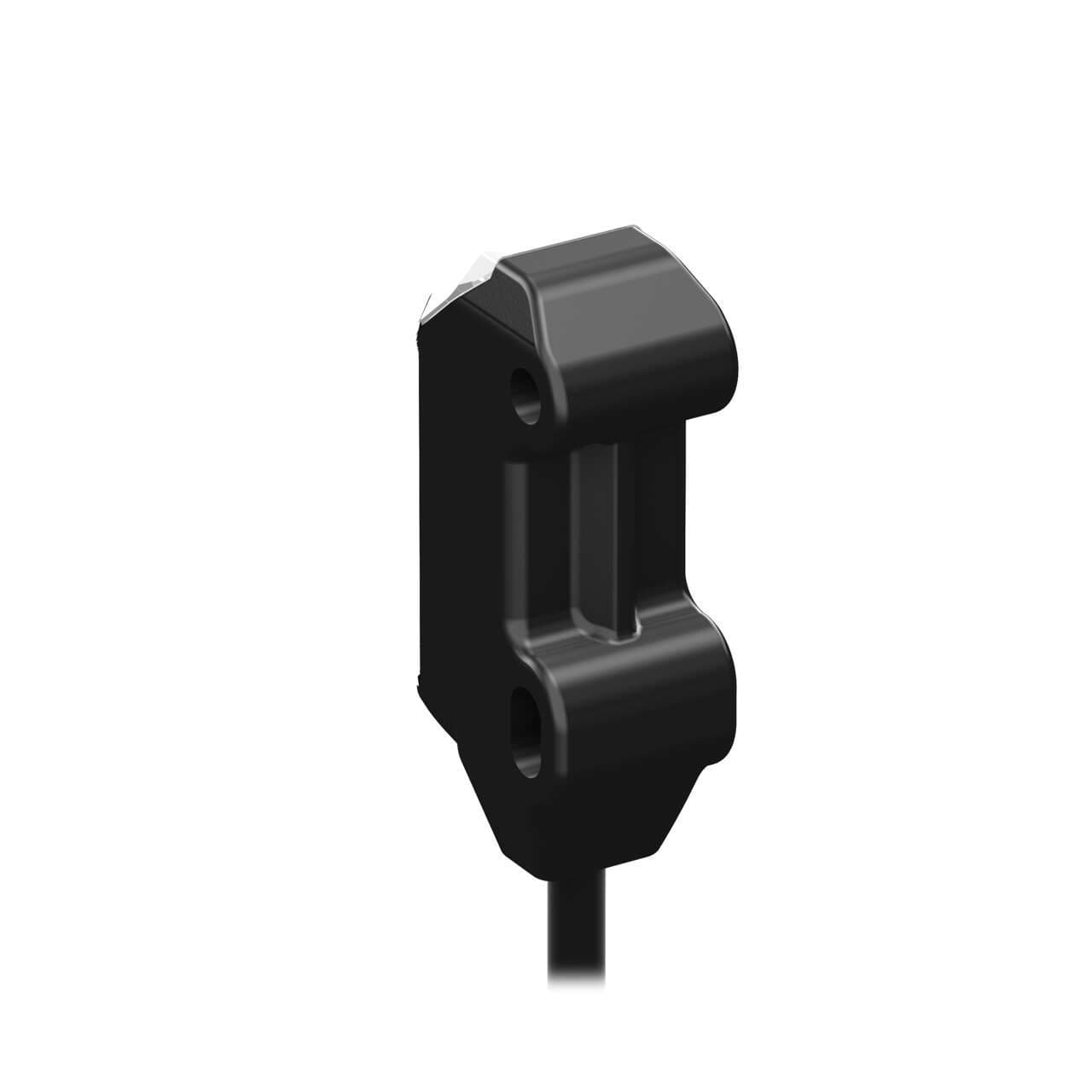

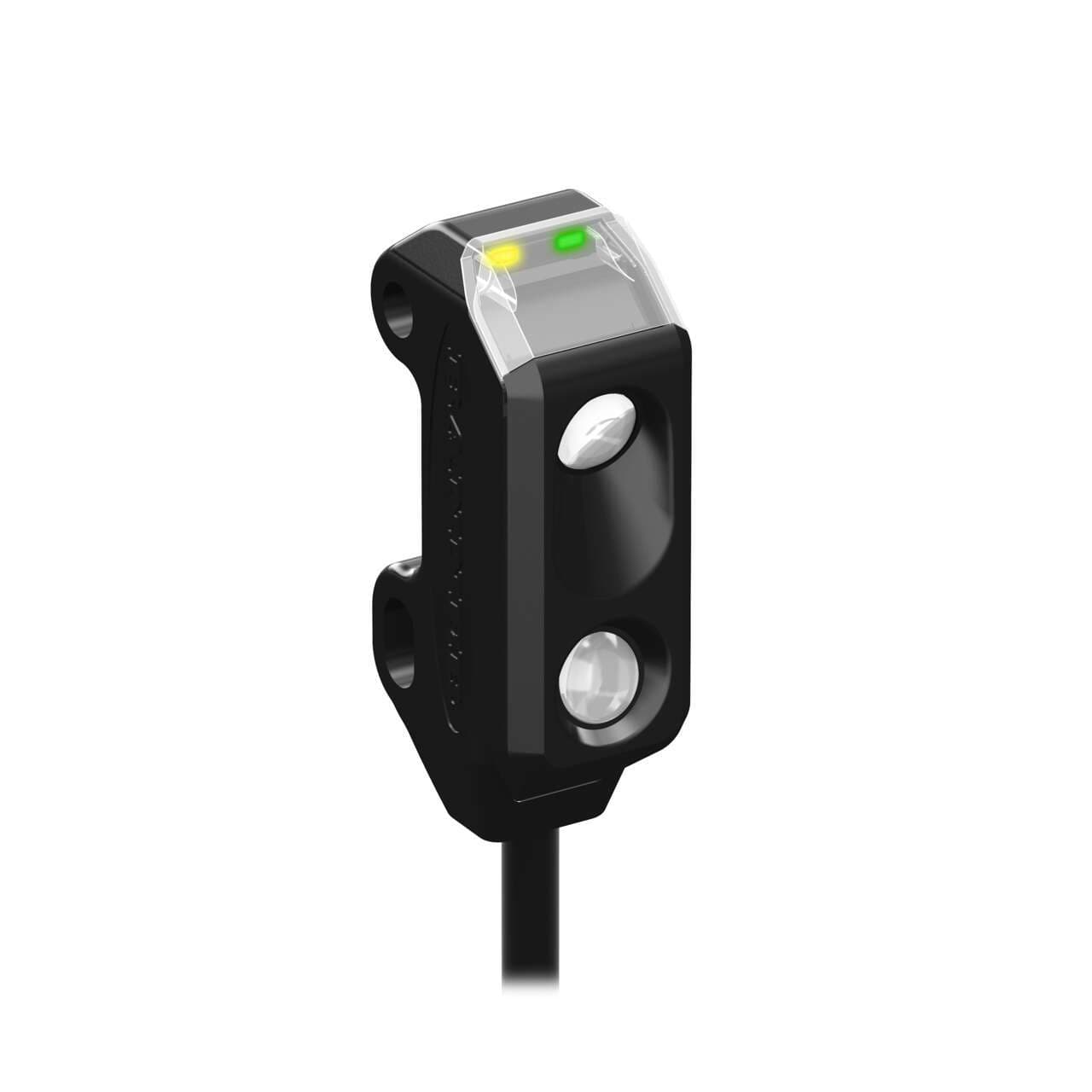

Banner Engineering VS1AP5C20Q is a photo-electric sensor with a thermoplastic housing and an acrylic lens. It offers a degree of protection rated at IP54 NEMA 3, making it suitable for various environments with an operational ambient air temperature range of -20 to +55°C. This sensor operates in Light-ON NO (Normally Open) mode and includes 1 x digital output (PNP transistor) with a rapid response time of 1ms / 0.001 s. It features a pre-wired connection with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor operates at a wavelength of 865 nm, emitting infrared (IR) light, and is designed for convergent mode with a sensing distance of 20mm. It requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is part of the VS1 series.

VS1AP5C20Q

Banner Engineering VS1AP5C20Q is a photo-electric sensor with a thermoplastic housing and an acrylic lens. It offers a degree of protection rated at IP54 NEMA 3, making it suitable for various environments with an operational ambient air temperature range of -20 to +55°C. This sensor operates in Light-ON NO (Normally Open) mode and includes 1 x digital output (PNP transistor) with a rapid response time of 1ms / 0.001 s. It features a pre-wired connection with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor operates at a wavelength of 865 nm, emitting infrared (IR) light, and is designed for convergent mode with a sensing distance of 20mm. It requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is part of the VS1 series.

VS1 CABLE/PIGTAIL.pdf

VS1 Series Datasheet.pdf

VS1 CABLE/PIGTAIL.stp

Product details

VS1 CABLE/PIGTAIL.pdf

VS1 Series Datasheet.pdf

VS1 CABLE/PIGTAIL.stp

IO LinkNo
DeviceNetNo
Feature: AudibleNo
Feature: Chemical ResistantNo
Feature: Hazardous AreaNo
Feature: EncapsulatedNo

Feature: Timing (Hold/Delay)No

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

AdjustmentsN/A

Barrel Diameter (mm)N/A

Lens MaterialAcrylic

Repeatability (µs)250

Max Op. Relative Humidity [%]80% @ 50°C

IP RatingIP54

NEMA RatingNEMA 3

Number of Pins3

Delay at Power-up (ms)N/A

Sensing Beam Wavelength865

Special Feature: Water DetectionNo

Special Feature: Intrinsically SafeNo

Min Op. Temp. (°C)-20

Special Feature: Remote TeachNo

Quick Disconnect TypeM8 (Pico)

Output response time (ms)1

Max Op. Temp. (°C)55

OperationLight Operate

Max Sensing Distance (mm)20

ConnectionPigtail QD

Power Supply/Supply Voltage10-30 V dc

Input/OutputDiscrete

Housing StyleRectangular

Sensing BeamInfrared LED

PowerDC

OutputsPNP

Primary Housing MaterialThermoplastic

Sensing Mode (General)Proximity

Sensing Mode (Detailed)Convergent
