T8RP6D100 Banner Proximity Sensors

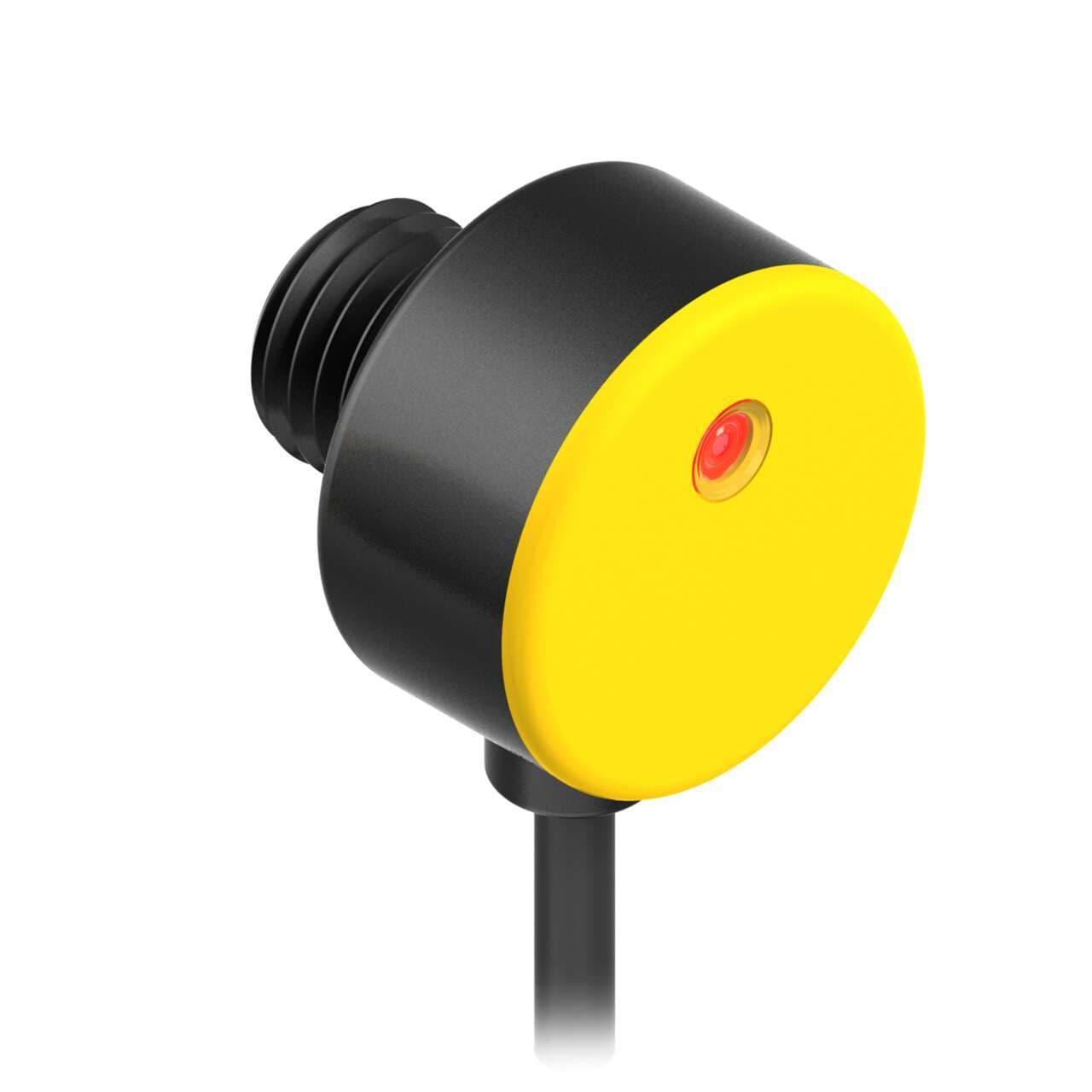

Banner T8RP6D100 T8 Series: Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: PNP Dark Operate; 2 m (6.5 ft) Cable
Banner

Part#:T8RP6D100

Manufacturer:Banner

Alt. Part#:68690

Product Lifecycle:Active

Get a quick Quote!

T8 Series: Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: PNP Dark Operate; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T8RP6D100 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • Feature: Audible
    No
  • Delay at Power-up (ms)
    150
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Lens Material
    Acrylic
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    8
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Number of Pins
    3
  • Repeatability (µs)
    160
  • Special Feature: Remote Teach
    No
  • Special Feature: Water Detection
    No
  • Quick Disconnect Type
    No QD
  • Special Feature: Intrinsically Safe
    No
  • Connection
    Cable
  • Operation
    Dark Operate
  • Output response time (ms)
    1 ON/0.5 OFF
  • Max Op. Temp. (°C)
    55
  • Outputs
    PNP
  • Min Op. Temp. (°C)
    -20
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Style
    Barrel
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    100
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red LED
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T8RP6D100 Description

Banner Engineering T8RP6D100 is a photo-electric sensor from the T8 series designed in a diffuse mode with a thermoplastic housing and an acrylic lens. This sensor features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -20 to +55 °C. The T8RP6D100 offers a degree of protection rated at IP67 NEMA 6 and comes in an M8 cylindrical threaded/barrel shape. It is equipped with one digital output (PNP transistor), has a sensing distance of 100mm, and utilizes visible red light with a wavelength of 680 nm. The sensor's response time is 1ms / 0.001 s, and it operates in a Dark-ON NC (Normally Closed) mode, with a thread size of M8.
