T306E W/30 Banner Proximity Sensors
Part#:T306E W/30
Alt. Part#:33933
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Emitter; Range: 60 m; Input: 10-30 V dc; Output: Not Applicable; 9 m (30 ft) Cable
Product Details
- Weight 491.693728 g
- Country Of Origin US
- Feature: Health/ Marginal Signal Output Yes
- IO Link No
- DeviceNet No
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver Emitter
- Feature: Washdown Rated Yes
- Indicator LEDs
- Barrel Diameter (mm) 30
- Lens Material Acrylic
- Adjustments N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6P
- IP Rating IP69
- Number of Pins 2
- Repeatability (µs) 375
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Special Feature: Remote Teach No
- Output response time (ms) 3 ON/1.5 OFF
- Special Feature: Intrinsically Safe No
- Connection Cable
- Max Op. Temp. (°C) 70
- Operation N/A
- Min Op. Temp. (°C) -40
- Quick Disconnect Type No QD
- Power Supply/Supply Voltage 10-30 V dc
- Power DC
- Sensing Mode (Detailed) Emitter
- Outputs N/A
- Max Sensing Distance (mm) 60000
- Housing Style Barrel
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Opposed
- Sensing Beam Infrared LED
- Cable Length (m) 9
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T306E W/30 on Powermatic Associates is $77.00. Order now.
About the product

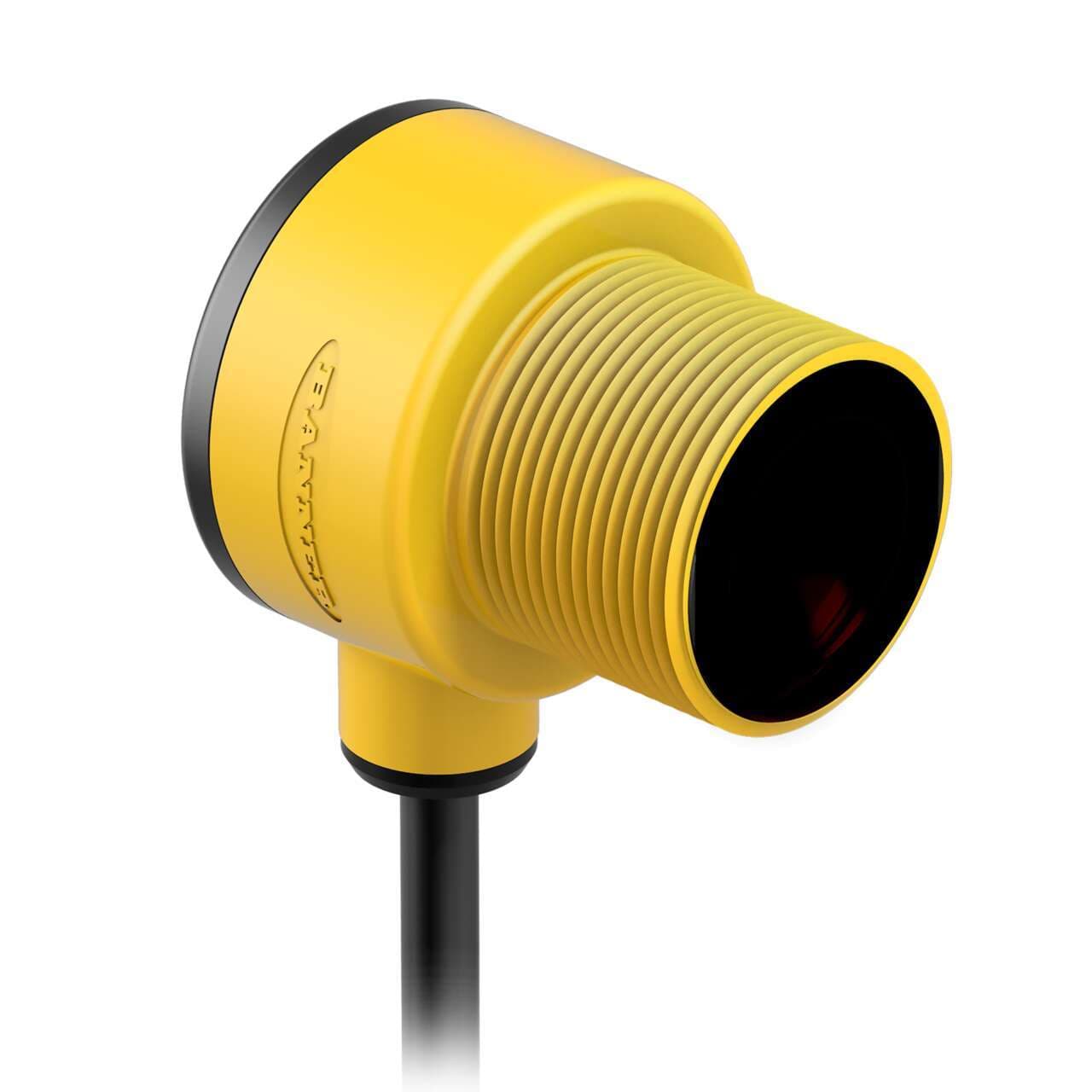

Banner Engineering T306E W/30 is a photo-electric sensor from the T30 series, designed with a through-beam system in an opposed mode configuration. This sensor functions as an emitter alone, housed in a thermoplastic material. It features a pre-wired connection with a 30ft / 9m cable terminated with bare end flying leads. The sensor operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP69K NEMA 6P, ensuring its durability in various environmental conditions. The T306E W/30 has an M30 cylindrical threaded/barrel shape, with a sensing distance of up to 60m. It utilizes infrared (IR) light with a wavelength of 950 nm and has a response time of 3ms (ON) and 1.5ms (OFF). The thread size for this sensor is M30.
