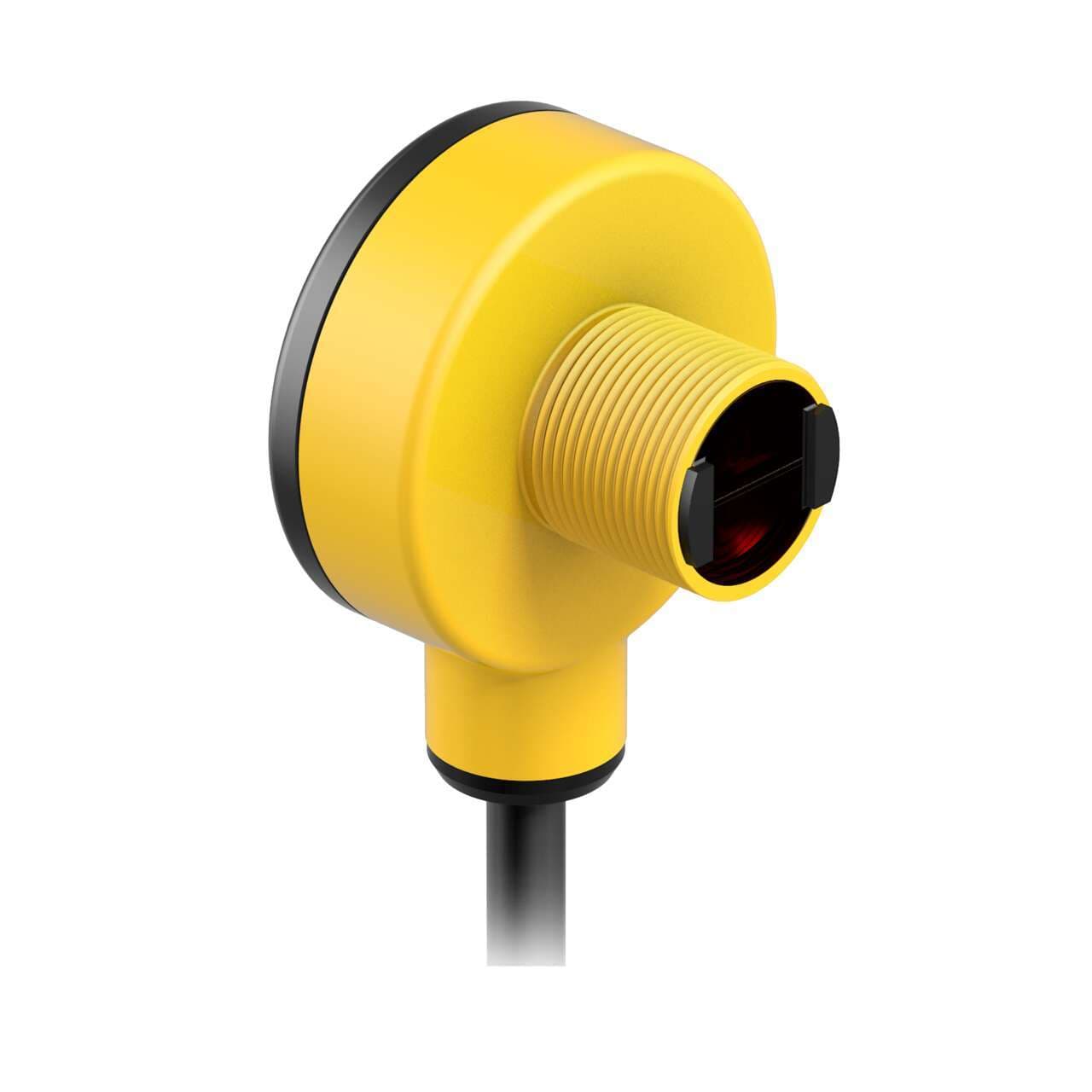

T18AW3FF25 Banner Proximity Sensors

T18AW3FF25 on Powermatic Associates
Banner

Part#:T18AW3FF25

Manufacturer:Banner

Alt. Part#:58386

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM T18 Series: Fixed Field; Range: 25 mm; Input: 20-250 V ac; Light Operate; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T18AW3FF25 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    US
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Encapsulated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67, IP69
  • Number of Pins
    3
  • Repeatability (µs)
    4000
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    16
  • Operation
    Light Operate
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    20-250 V ac
  • Connection
    Cable
  • Outputs
    Solid-State AC Switch
  • Sensing Beam
    Infrared LED
  • Max Sensing Distance (mm)
    25
  • Input/Output
    Solid-State AC Switch
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Cable Length (m)
    2
  • Power
    AC
  • Housing Style
    Barrel
  • Sensing Mode (General)
    Proximity
  • Primary brand
    Banner Engineering
  • Sensing distance
    25mm
  • Diameter
    40mm
  • Supply voltage (AC)
    20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    T18 series
  • Light Color
    Infrared (IR)
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Operating mode
    Light-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    EZ-BEAM series
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
  • Mounting mode
    Threaded mount
  • Digital outputs
    1 x digital output (Solid-state AC output; SPST contact type)
  • Compliant with standard(s)
    cULus CSA CE
  • Design
    background suppression system
  • Shape
    Cylindrical smooth
  • Order code / Manufacturer SKU
    58386
  • Wavelength
    880 nm
  • Thread size
    M18
  • Degree of protection
    IP67 IP69K NEMA 6P
  • Response time
    16ms / 0.016 s
  • Material
    thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T18AW3FF25 Description

Banner Engineering T18AW3FF25 is a fixed-field photo-electric sensor from the T18 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. This sensor is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connectivity. It operates on a supply voltage range of 20Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and can be mounted using a threaded mount. The T18AW3FF25 is designed to work within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. It has a diameter of 40mm and includes 1 x digital output (Solid-state AC output; SPST contact type) with a sensing distance of 25mm. The sensor utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 16ms / 0.016 s. Its operating mode is Light-ON.

Related documents T18AW3FF25 Specs

T18AW3FF25 T18 Series Sensors (AC Voltage) -- Datasheet-1630949903448.pdf
