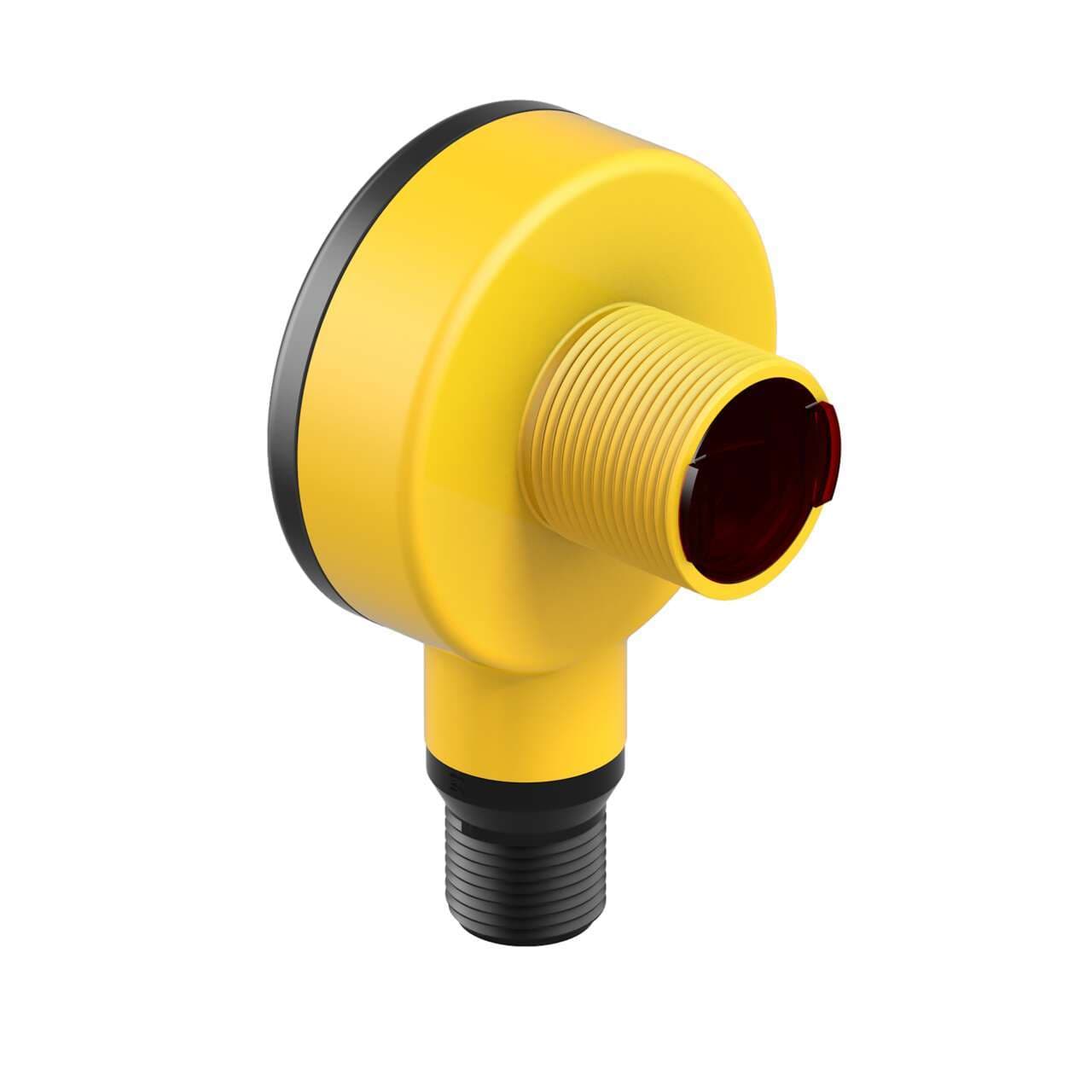

T18AW3FF100Q1 Banner Proximity Sensors
Part#:T18AW3FF100Q1
Alt. Part#:33410
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

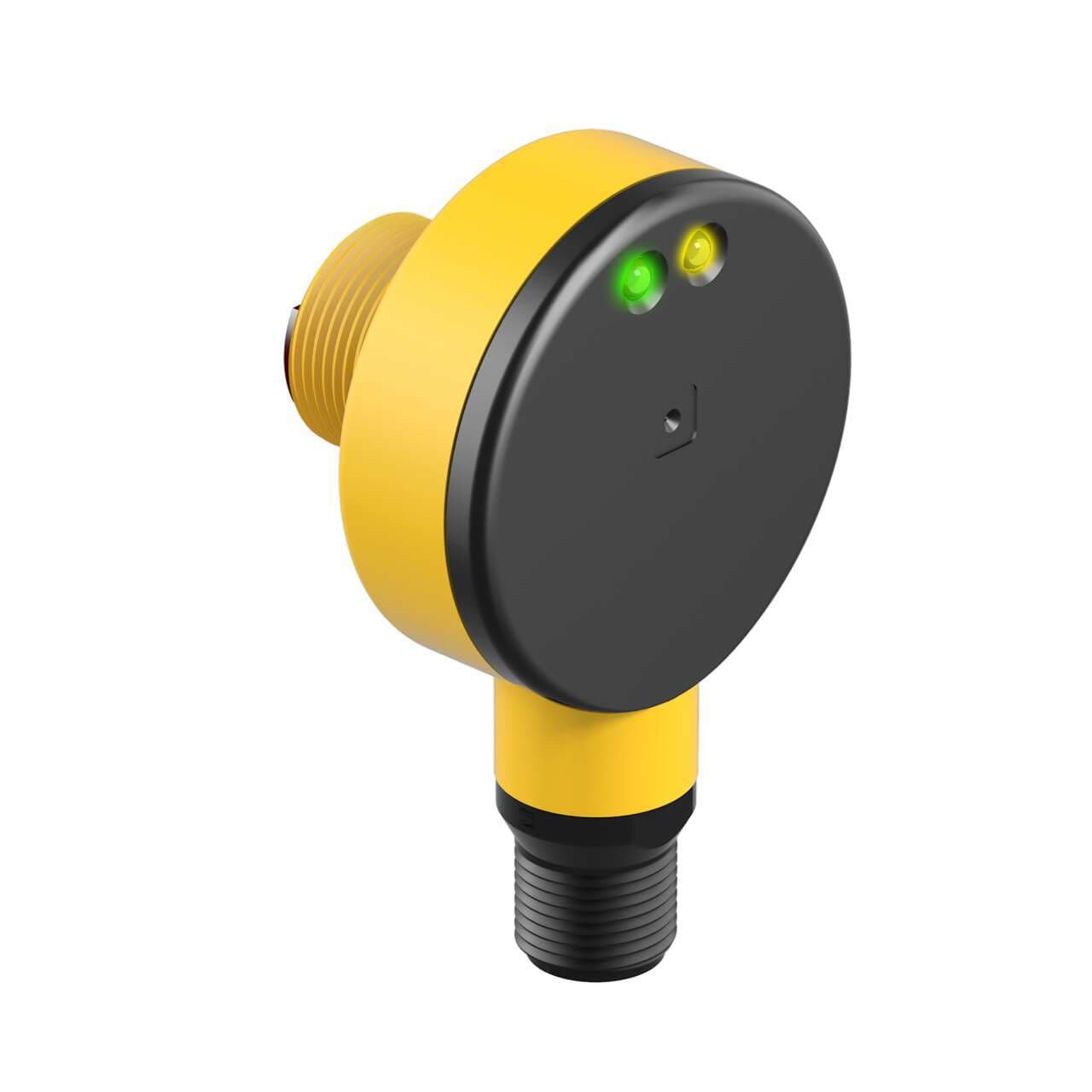

EZ-BEAM T18 Series: Fixed Field; Range: 100 mm; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 4-pin Micro Integral QD
Product Details
- Weight 61.23492 g
- Country Of Origin US
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Indicator LEDs
- Sensing Mode (General) Proximity
- Quick Disconnect Type 1/2 in. (Micro)
- Special Feature: Water Detection No
- Feature: Ecolab Certified Yes
- Input/Output Solid-State AC Switch
- Operation Light Operate
- IP Rating IP67, IP69
- Opposed Mode Emitter/Receiver N/A
- Feature: Hazardous Area No
- Adjustments N/A
- DeviceNet No
- Sensing Beam Infrared LED
- Min Op. Temp. (°C) -40
- Repeatability (µs) 4000
- Feature: Washdown Rated Yes
- Power AC
- Power Supply/Supply Voltage 20-250 V ac
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 100
- Output response time (ms) 16
- Barrel Diameter (mm) 18
- IO Link No
- Outputs Solid-State AC Switch
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant Yes
- Housing Style Barrel
- Connection Integral QD
- Number of Pins 4
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18AW3FF100Q1 on Powermatic Associates is $170.00. Order now.
About the product
Banner Engineering T18AW3FF100Q1 is a fixed-field photo-electric sensor from the T18 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. This sensor is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.). It offers a threaded mount for installation and can operate in ambient air temperatures ranging from -40 to +70°C. The T18AW3FF100Q1 is protected to IP67, IP69K, and NEMA 6P standards, ensuring durability in various environments. It has a sensing distance of 100mm and utilizes infrared light with a wavelength of 880 nm. The sensor's digital output is a solid-state AC output with SPST contact type, and it has a response time of 16ms / 0.016 s. Its operating mode is Light-ON, and it has a diameter of 40mm with an M18 thread size.
