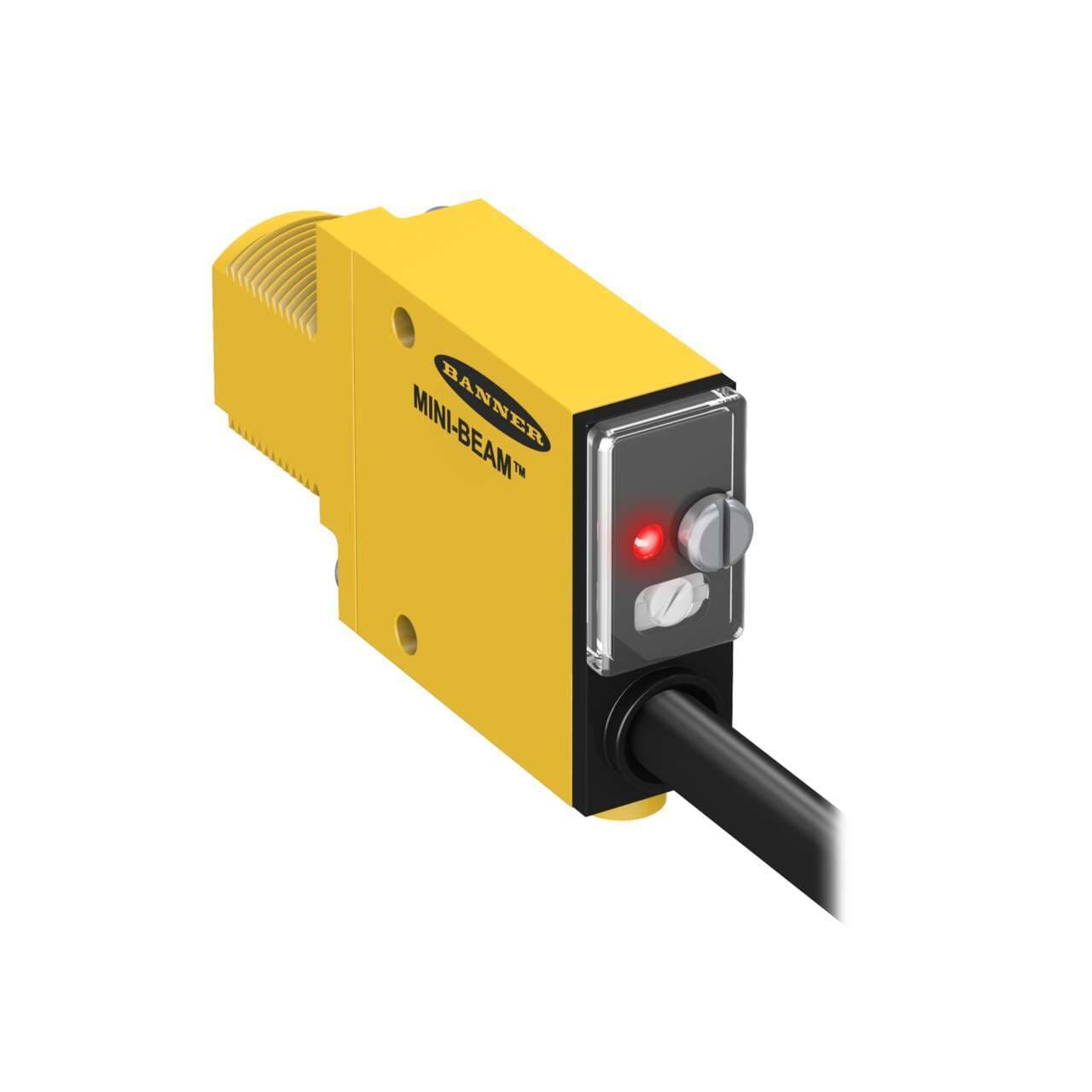

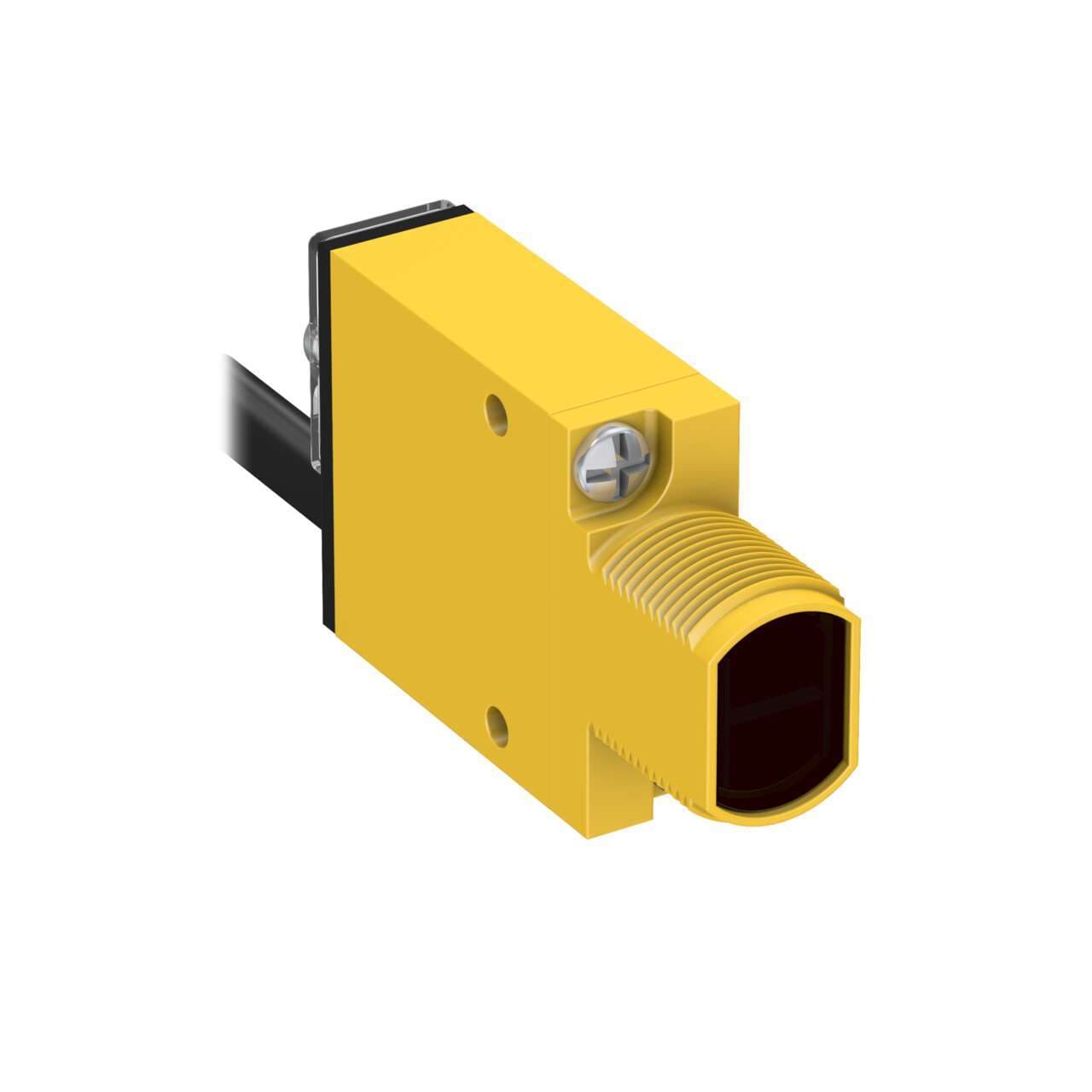

SM31RPD Banner Proximity Sensors
Part#:SM31RPD
Alt. Part#:26536
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Clear Plastic Detection Receiver; Range: 0 - 0.3 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 193.230192 g
- Country Of Origin US
- Sensing Mode (Detailed) Receiver
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Adjustments Potentiometer
- IO Link No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Number of Pins 4
- Cable Length (m) 2
- Sensing Beam Wavelength 650
- Barrel Diameter (mm) 18
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- Repeatability (µs) 140
- Feature: Clear Object Detection Yes
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Indicator LEDs
- Max Sensing Distance (mm) 300
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Encapsulated Yes
- Input/Output Discrete
- Output response time (ms) 1
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Power DC
- Connection Cable
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Opposed Mode Emitter/Receiver Receiver
- Sensing Beam Visible Red LED
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RPD on Powermatic Associates is $171.00. Order now.
About the product
Banner Engineering SM31RPD is a photo-electric sensor designed as part of the SM312 series, featuring a through-beam system with opposed mode potentiometer adjustment. This sensor functions as a receiver alone, housed in a thermoplastic casing with an acrylic lens. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. The SM31RPD operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70 degrees Celsius. This sensor offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. It has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of 300mm. The light color is visible red, with a response time of 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
