SM312CV2BQD
Banner
Product Lifecycle: Active

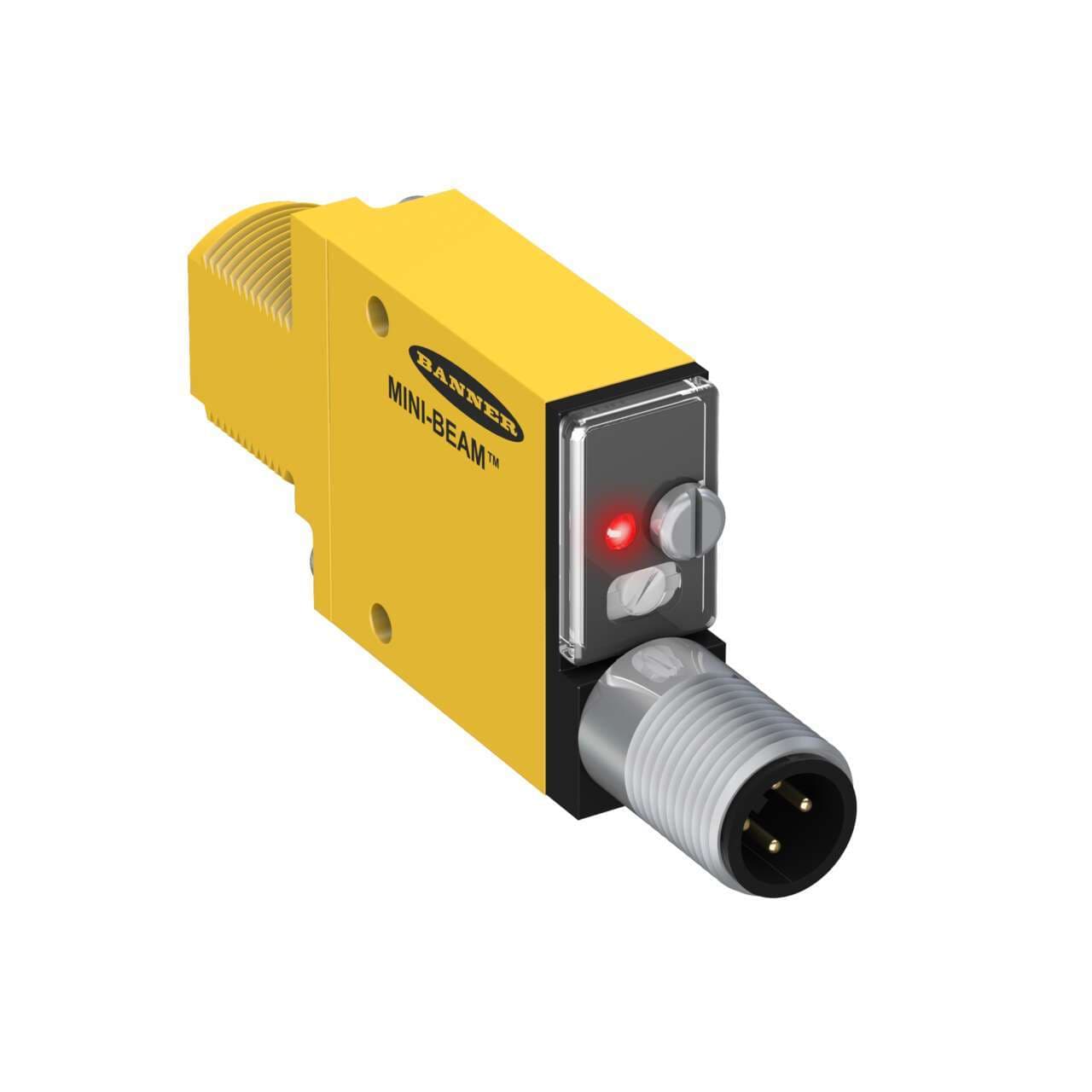

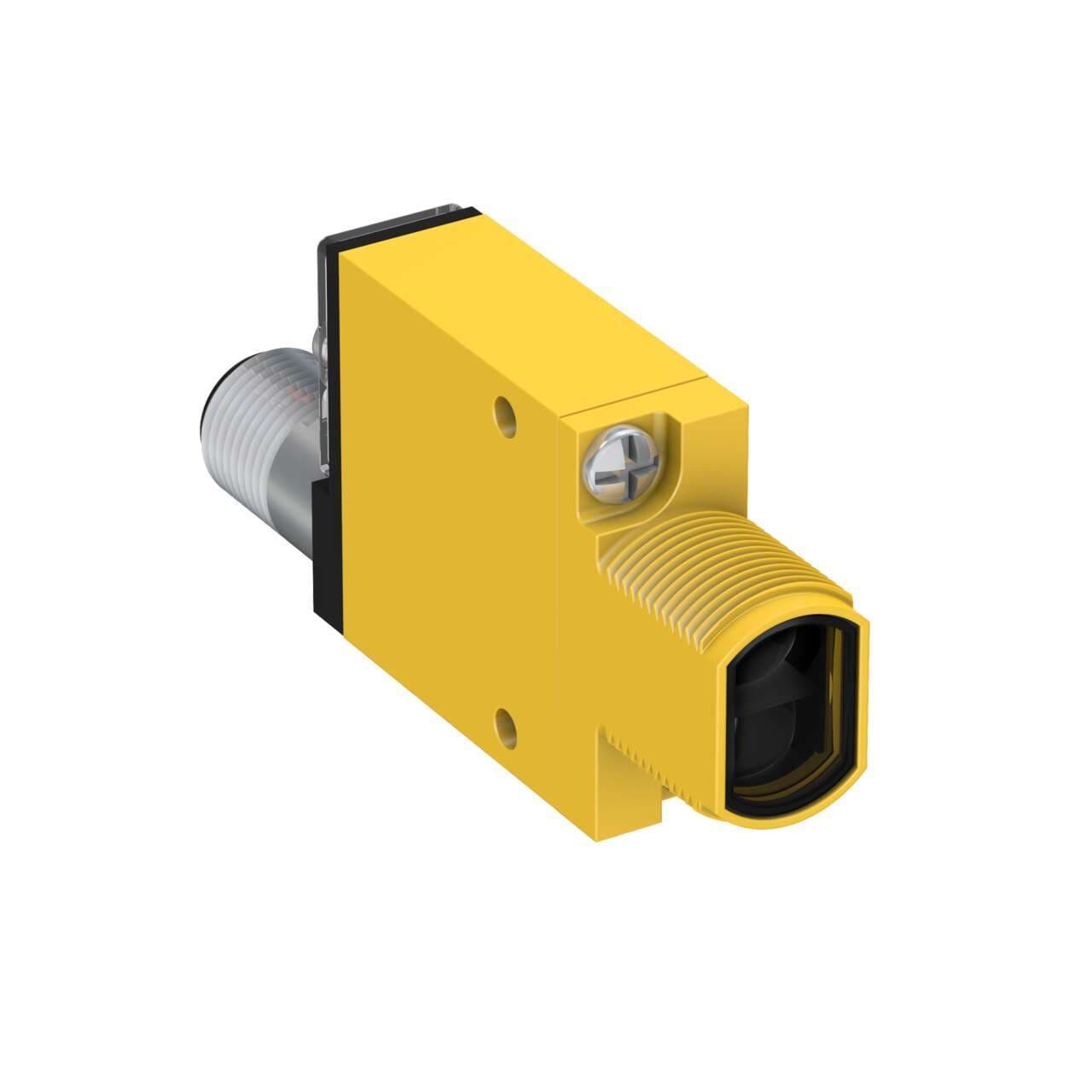

Banner Engineering SM312CV2BQD is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. The sensor is capable of operating in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. Its rectangular shape encompasses 1 x digital output (PNP/NPN transistor), with a sensing distance of 49mm and a visible blue light color. The response time of the sensor is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
![SM312CV2BQD](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fdf2af8fc-b7df-4548-8ffe-977019ae0445.jpeg&w=3840&q=75)
Banner Engineering SM312CV2BQD is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. The sensor is capable of operating in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. Its rectangular shape encompasses 1 x digital output (PNP/NPN transistor), with a sensing distance of 49mm and a visible blue light color. The response time of the sensor is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
Product details
- IO LinkNo
- DeviceNetNo
- Feature: Timing (Hold/Delay)No
- AdjustmentsPotentiometer
- Barrel Diameter (mm)18
- IP RatingIP67
- Number of Pins4
- Special Feature: Intrinsically SafeNo
- Min Op. Temp. (°C)-20
- Quick Disconnect TypeM12 (Euro)
- OutputsBipolar (NPN & PNP)
- PowerDC
- Feature: Chemical ResistantNo
- Feature: EncapsulatedYes
- Opposed Mode Emitter/ReceiverN/A
- Feature: Hazardous AreaNo
- Feature: AudibleNo
- IndicatorLEDs
- Lens MaterialAcrylic
- NEMA RatingNEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Max Op. Relative Humidity [%]90% @ 50°C
- Delay at Power-up (ms)100
- Repeatability (µs)300
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachNo
- Output response time (ms)1
- Max Op. Temp. (°C)70
- Power Supply/Supply Voltage10-30 V dc
- OperationLight/Dark Operate
- ConnectionIntegral QD
- Housing StyleRectangular w/M18 Mount
- Input/OutputDiscrete
- Max Sensing Distance (mm)49
- Sensing Mode (General)Proximity
- Sensing Mode (Detailed)Convergent
- Primary Housing MaterialThermoplastic
- Sensing BeamVisible Blue LED
- Product series / family nameMINI-BEAM series
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Main functionSensor (Photo-electric)
- Sensing distance49mm
- Connection typePre-equipped with 4-pin Euro-style M12 connector
- Primary brandBanner Engineering
- Light ColorVisible blue
- Operating modeLight-ON Dark-ON
- Materialthermoplastic housing Acrylic lns.
- Sub-range nameSM312
- Designconvergent mode
- Mounting modeThreaded mount
- FunctionsPhoto-electric sensor red LED (power ON) potentiometer adjustment
- Thread sizeM18
- Digital outputs1 x digital output (PNP/NPN transistor)
- Compliant with standard(s)cURus CSA CE
- ShapeRectangular
- Degree of protectionIP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Response time1ms / 0.001 s
- Order code / Manufacturer SKU51253
- Ambient air temperature for operation-20...+70 °C
