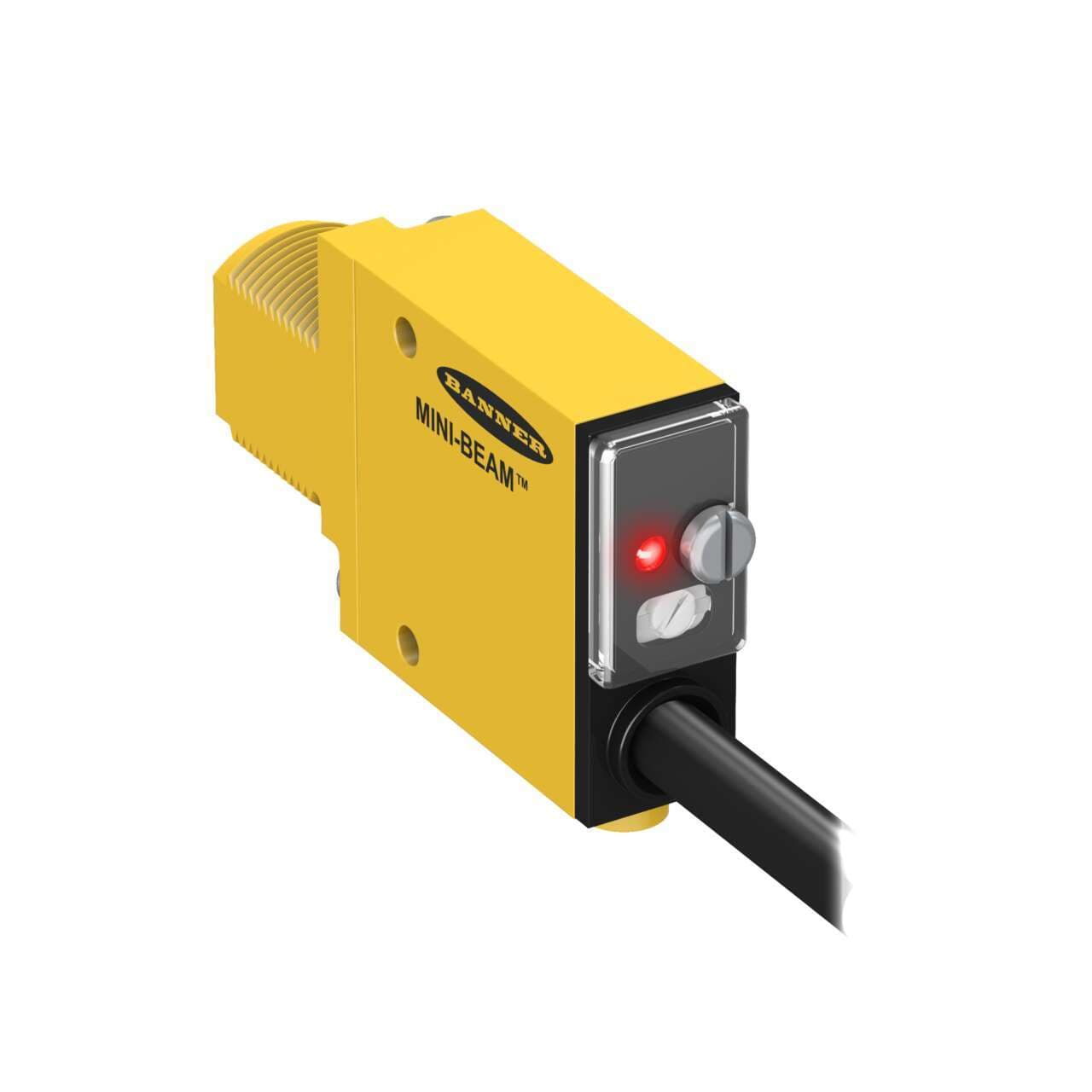

SM312CV W/30 Banner Proximity Sensors

SM312CV W/30 on Powermatic Associates
Banner

Part#:SM312CV W/30

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:26113

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM312CV W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    599.648624 g
  • Country Of Origin
    US
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    Yes
  • Indicator
    LEDs
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Barrel Diameter (mm)
    18
  • Feature: Hazardous Area
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • Number of Pins
    4
  • Repeatability (µs)
    300
  • Adjustments
    Potentiometer
  • Sensing Beam Wavelength
    650
  • Lens Material
    Acrylic
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    1
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Outputs
    Bipolar (NPN & PNP)
  • Sensing Mode (General)
    Proximity
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Visible Red LED
  • Max Sensing Distance (mm)
    16
  • Sensing Mode (Detailed)
    Convergent
  • Power
    DC
  • Housing Style
    Rectangular w/M18 Mount
  • Input/Output
    Discrete
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SM312CV W/30 Description

Banner Engineering SM312CV W/30 is a photo-electric sensor from the SM312 series designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The SM312CV W/30 offers an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, ensuring durability in various environments. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of 16mm. It emits visible red light and has a response time of 1ms / 0.001 s, with operating modes that include Light-ON and Dark-ON.

Related documents SM312CV W/30 Specs

SM312CV W/30 52980.pdf
