Part#:RDLP-825DB

Alt. Part#:82782

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

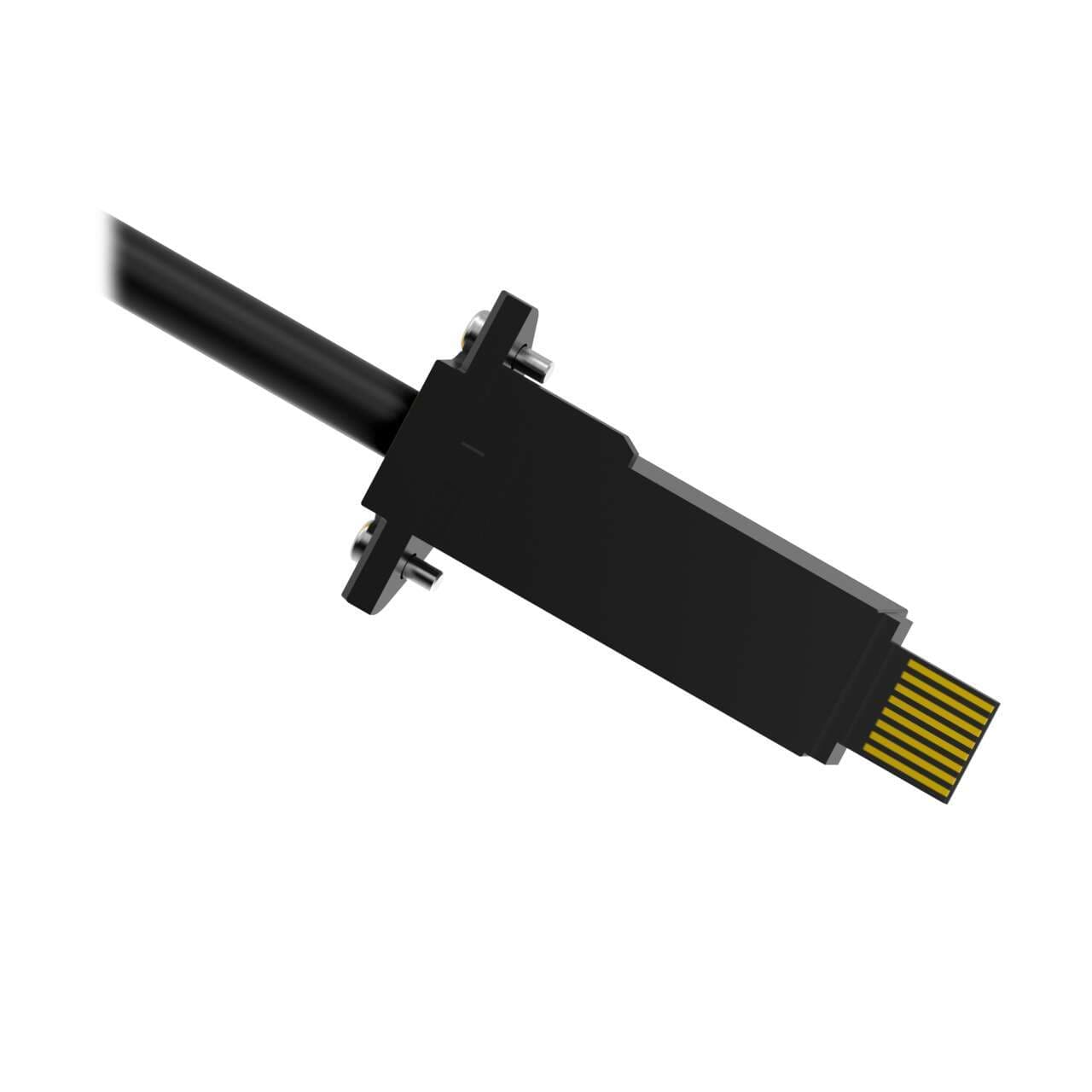

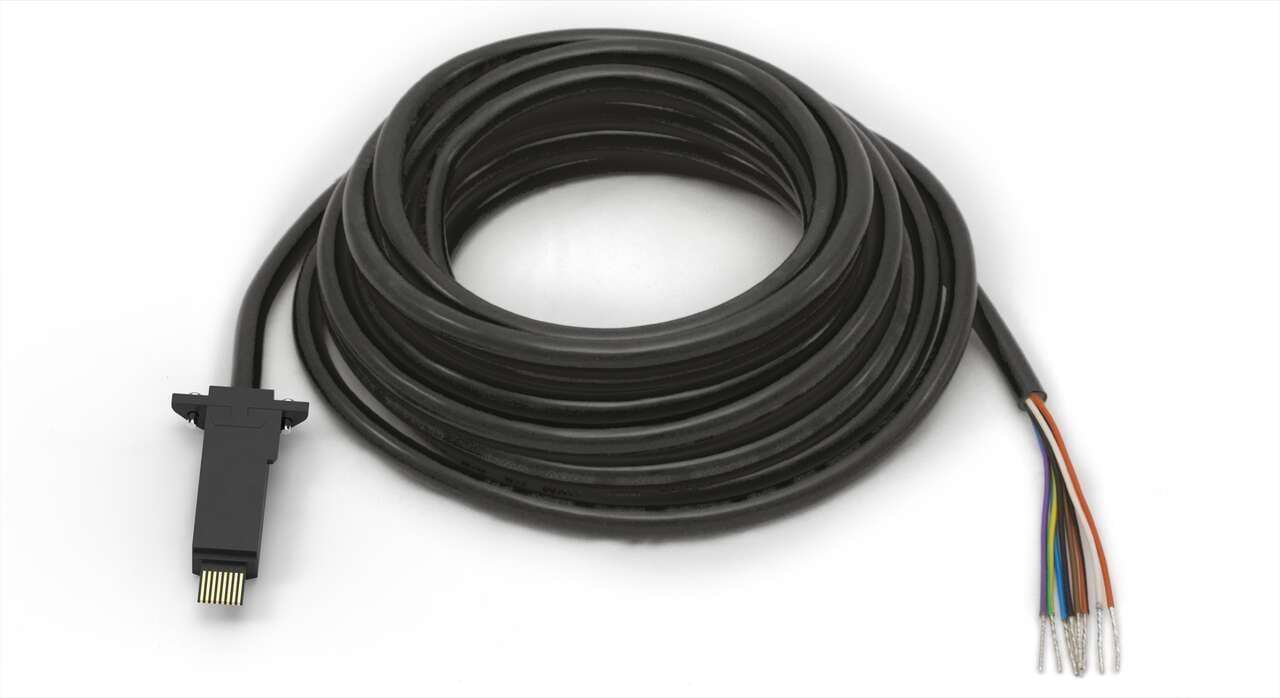

Cordset: Single Ended LP-Custom; 8-pin Straight Male; 8 m 8x22 Black PVC Jacket; TPU Black

Product Details

  • Weight
    498.9512 g
  • Country Of Origin
    TW
  • Secondary Connector Type
    Flying Leads
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Orientation
    Straight
  • Primary Number of Conductors
    8
  • Primary AWG
    22
  • Primary Gender
    Male
  • Primary Coupling Method
    LP-Custom
  • Primary Connector Type
    LP-Custom
  • IP Rating
    IP67
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Maximum Temp. (°C)
    55
  • Current Rating (A)
    2.0
  • Coupling Material/Color
    Nylon Black
  • Cable Jacket Material
    PVC
  • Cordset Length (m)
    7.62
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    No Trunk
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    6
  • Number of Connectors
    1
  • Number of Contacts
    8
  • Cable Jacket Color
    Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RDLP-825DB on Powermatic Associates is $47.00. Order now.

About the product

Banner Engineering RDLP-825DB is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin LP male connector and bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 6mm and is encased in black PVC sheathing, providing durability and protection. It is rated for a maximum operating ambient air temperature of +55°C and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance are required. The RDLP-825DB is capable of handling rated voltages up to 75Vdc and 60Vac, and it measures 25ft (7.62m) in length, offering flexibility for various installation needs.
