Part#:RDLP-1175E

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

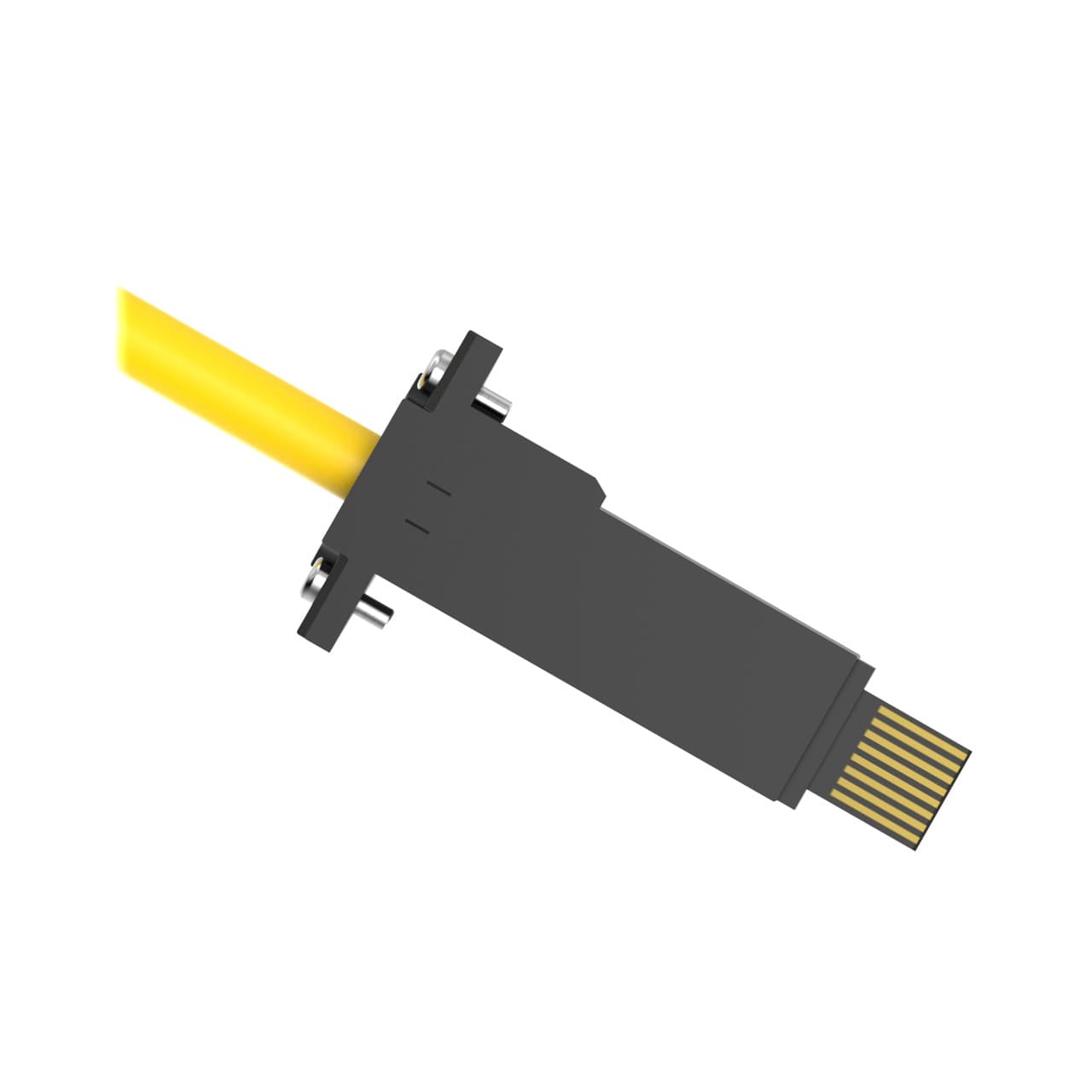

Banner Engineering RDLP-1175E is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 11-pin LP male connector and bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, providing durability and visibility. It is rated for operation in ambient air temperatures up to +55°C and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance are required. The RDLP-1175E operates at a rated voltage of 75Vdc and 60Vac, with a length of 75.5ft (23m), accommodating extensive reach for various installation needs.

Product Details

  • Oil/Grease Resistant
    No
  • Secondary Connector Type
    Flying Leads
  • Feature: Hazardous Area
    No
  • Primary Orientation
    Straight
  • Primary Number of Conductors
    11
  • Primary Connector Type
    LP-Custom
  • Primary Coupling Method
    LP-Custom
  • IP Rating
    IP67
  • Primary AWG
    24
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Primary Gender
    Male
  • Current Rating (A)
    2.0
  • Maximum Temp. (°C)
    55
  • Coupling Material/Color
    Nylon Black
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    23
  • Outside Cable Diameter (mm)
    6
  • Cable Jacket Color
    Yellow
  • Number of Connectors
    1
  • Number of Contacts
    11

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
