QS30LP

Banner

Product Lifecycle: Active

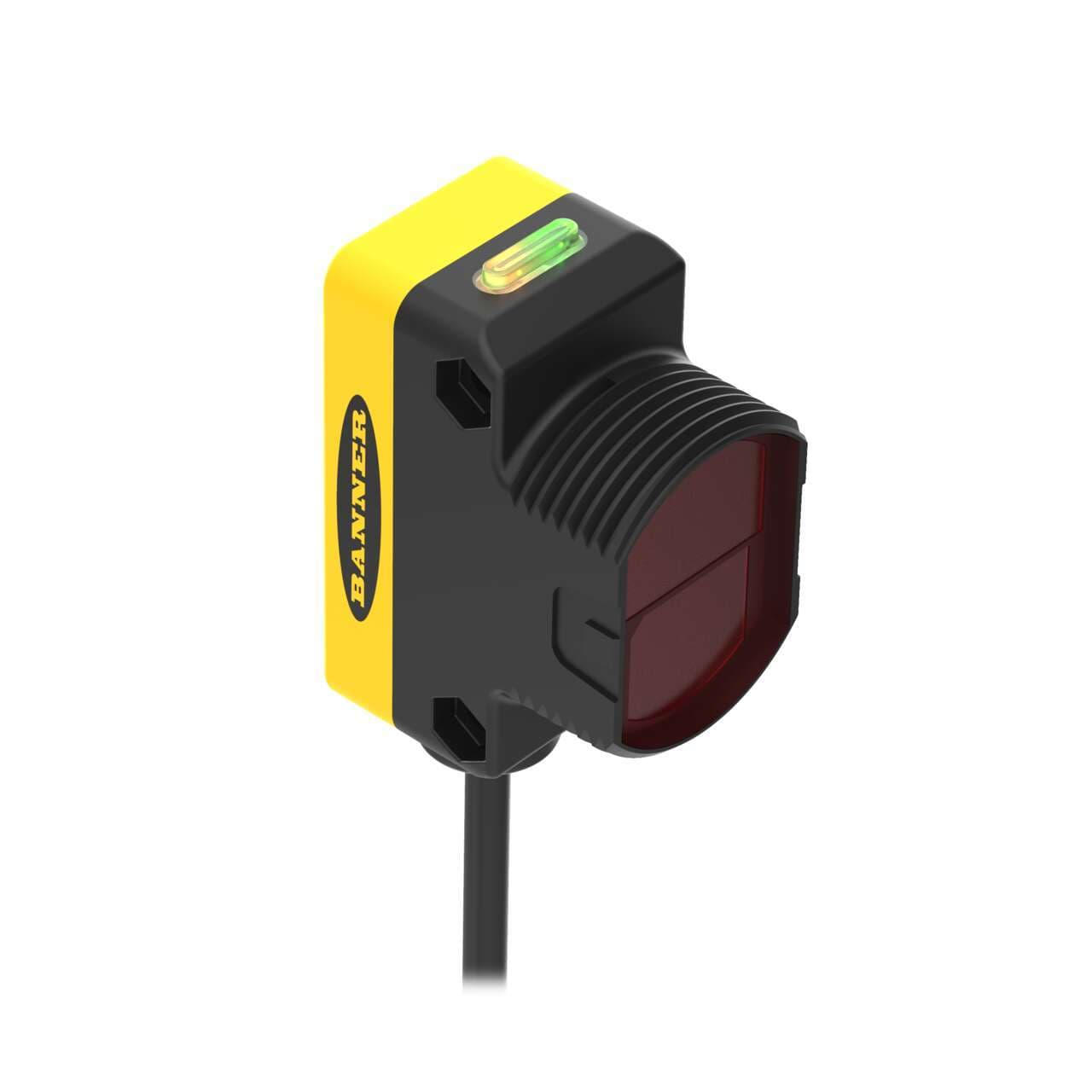

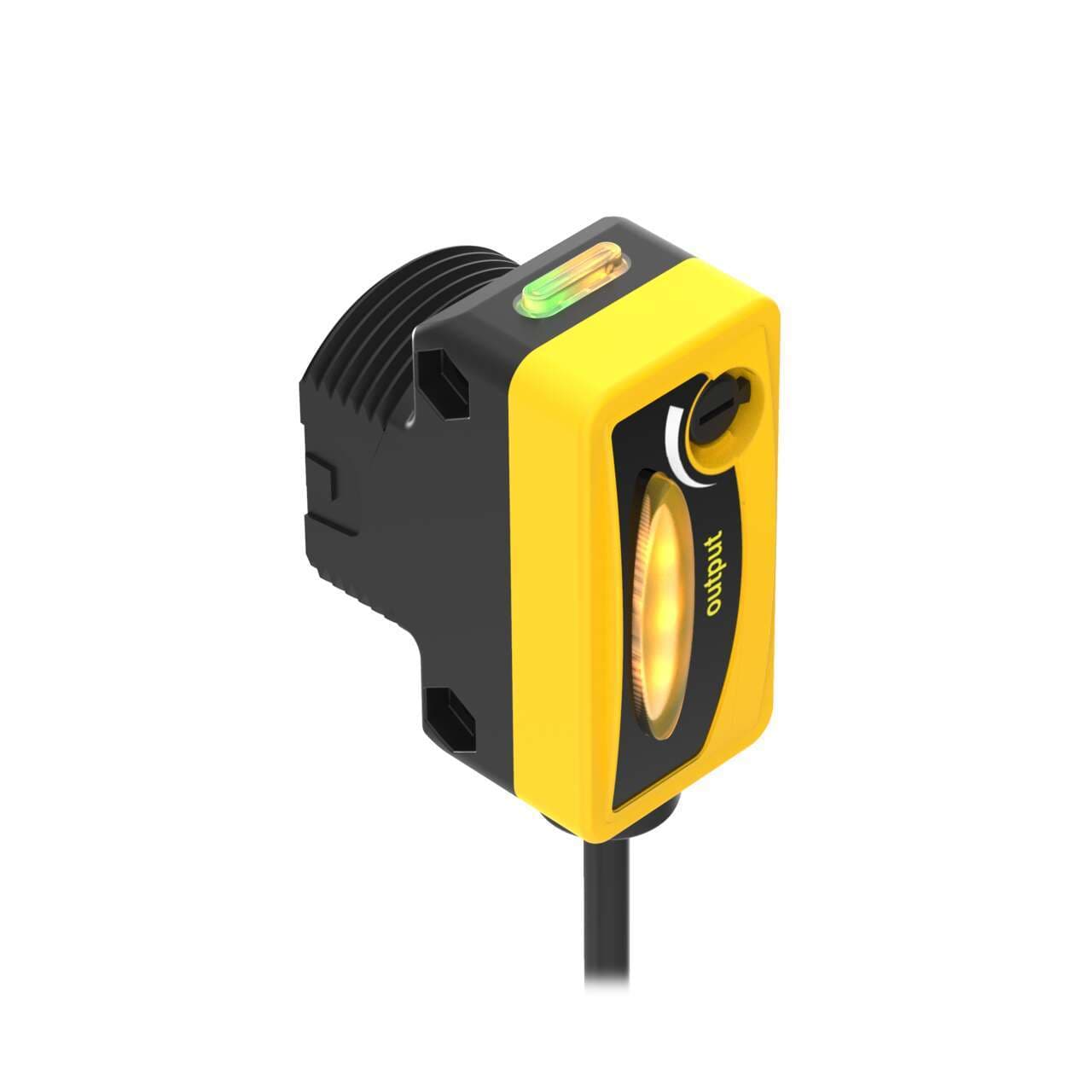

Banner Engineering QS30LP is a polarized photo-electric sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is built in a rectangular shape with a thermoplastic housing and acrylic lens for durability. This sensor is part of the QS30 DC voltage series and offers a retro-reflective mode with potentiometer adjustment for precise control. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. The QS30LP is equipped with a visible red light and can detect objects up to 8m away. It provides flexibility in operation with Light-ON and Dark-ON modes and includes 1 x digital output (PNP/NPN transistor) for reliable signaling. With a quick response time of 2ms / 0.002 s and a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.), this sensor is designed to meet various application needs. It also boasts an IP67 NEMA 6 degree of protection, ensuring performance in demanding environments.

QS30LP

Banner Engineering QS30LP is a polarized photo-electric sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is built in a rectangular shape with a thermoplastic housing and acrylic lens for durability. This sensor is part of the QS30 DC voltage series and offers a retro-reflective mode with potentiometer adjustment for precise control. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. The QS30LP is equipped with a visible red light and can detect objects up to 8m away. It provides flexibility in operation with Light-ON and Dark-ON modes and includes 1 x digital output (PNP/NPN transistor) for reliable signaling. With a quick response time of 2ms / 0.002 s and a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.), this sensor is designed to meet various application needs. It also boasts an IP67 NEMA 6 degree of protection, ensuring performance in demanding environments.

WORLD-BEAM QS30 Standard Series, DC Models -- Datasheet.pdf

QS30LP/LV CABLE.pdf

QS30LP/LV CABLE.stp

Product details

WORLD-BEAM QS30 Standard Series, DC Models -- Datasheet.pdf

QS30LP/LV CABLE.pdf

QS30LP/LV CABLE.stp

Feature: Timing (Hold/Delay)No
OperationLight/Dark Operate
Lens MaterialAcrylic
Sensing Mode (Detailed)Polarized
DeviceNetNo
IO LinkNo

Feature: Chemical ResistantNo

Feature: AudibleNo

Feature: Hazardous AreaNo

Feature: EncapsulatedNo

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

Barrel Diameter (mm)30

AdjustmentsPotentiometer

Max Op. Relative Humidity [%]95% @ 55°C

NEMA RatingNEMA 6

IP RatingIP67

Number of Pins5

Repeatability (µs)500

Delay at Power-up (ms)100

Sensing Beam Wavelength630

Special Feature: Water DetectionNo

Special Feature: Intrinsically SafeNo

Special Feature: Remote TeachNo

Output response time (ms)2

Max Op. Temp. (°C)70

Input/OutputDiscrete

Primary Housing MaterialThermoplastic

Min Op. Temp. (°C)-20

Quick Disconnect TypeNo QD

ConnectionCable

Power Supply/Supply Voltage10-30 V dc

OutputsBipolar (NPN & PNP)

Max Sensing Distance (mm)8000

Housing StyleRectangular w/M30 Mount

Sensing Mode (General)Retroreflective

PowerDC

Cable Length (m)2

Sensing BeamVisible Red LED

Primary brandBanner Engineering

FunctionsPolarized photo-electric sensor green LED (power ON) yellow LED (output state) potentiometer adjustment

Mounting modeThreaded mount

Materialthermoplastic housing Acrylic lns.

Sub-range nameQS30 DC voltage series

Main functionSensor (Photo-electric)

Designretro-reflective mode

ShapeRectangular

Response time2ms / 0.002 s

Product series / family nameWORLD-BEAM series

Light ColorVisible red

Digital outputs1 x digital output (PNP/NPN transistor)

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Sensing distance8m

Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Degree of protectionIP67 NEMA 6

Thread sizeM30

Compliant with standard(s)cURus CE

Operating modeLight-ON Dark-ON

Order code / Manufacturer SKU72544

Ambient air temperature for operation-20...+70 °C
