QS30ARH2OQ5

Banner

Product Lifecycle: Active

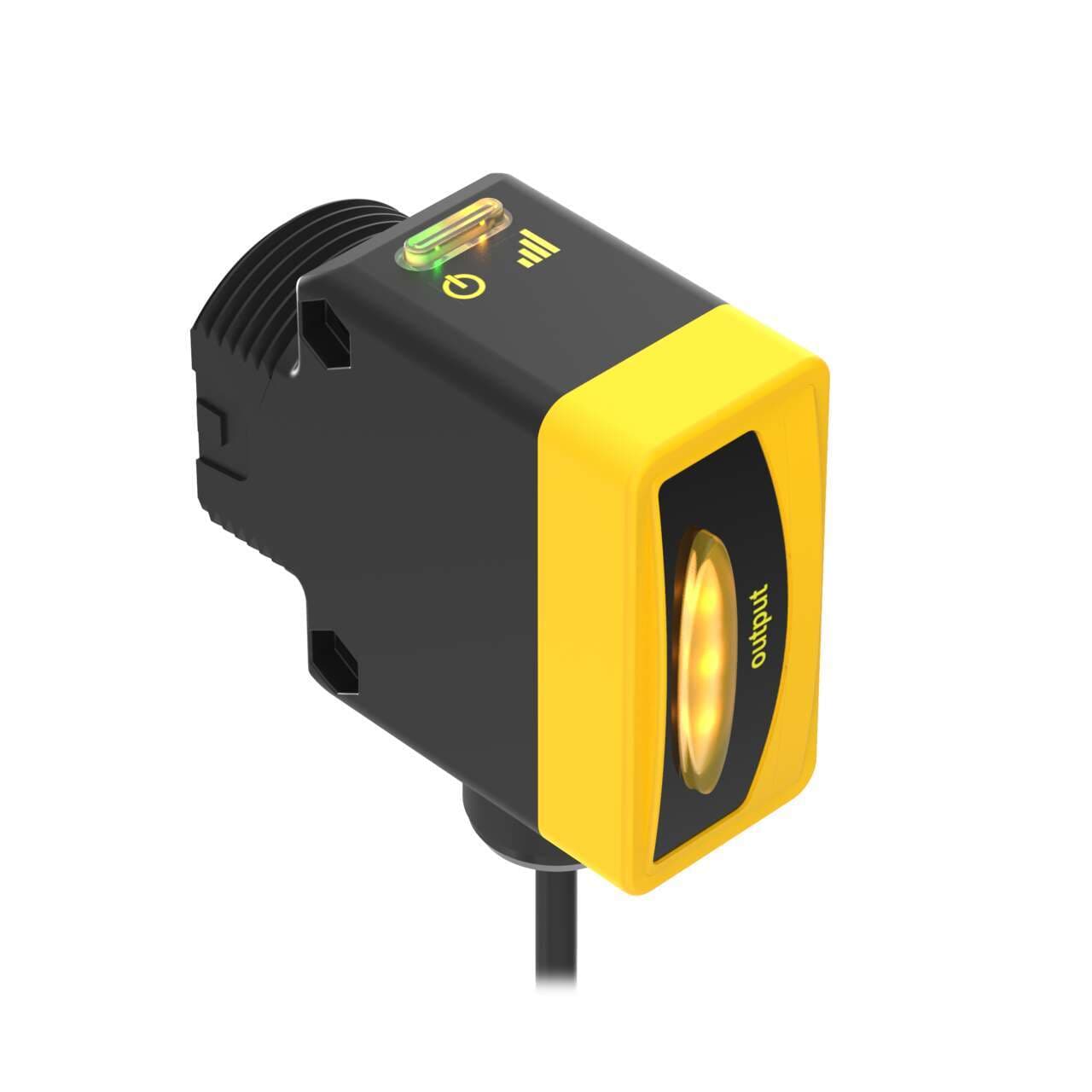

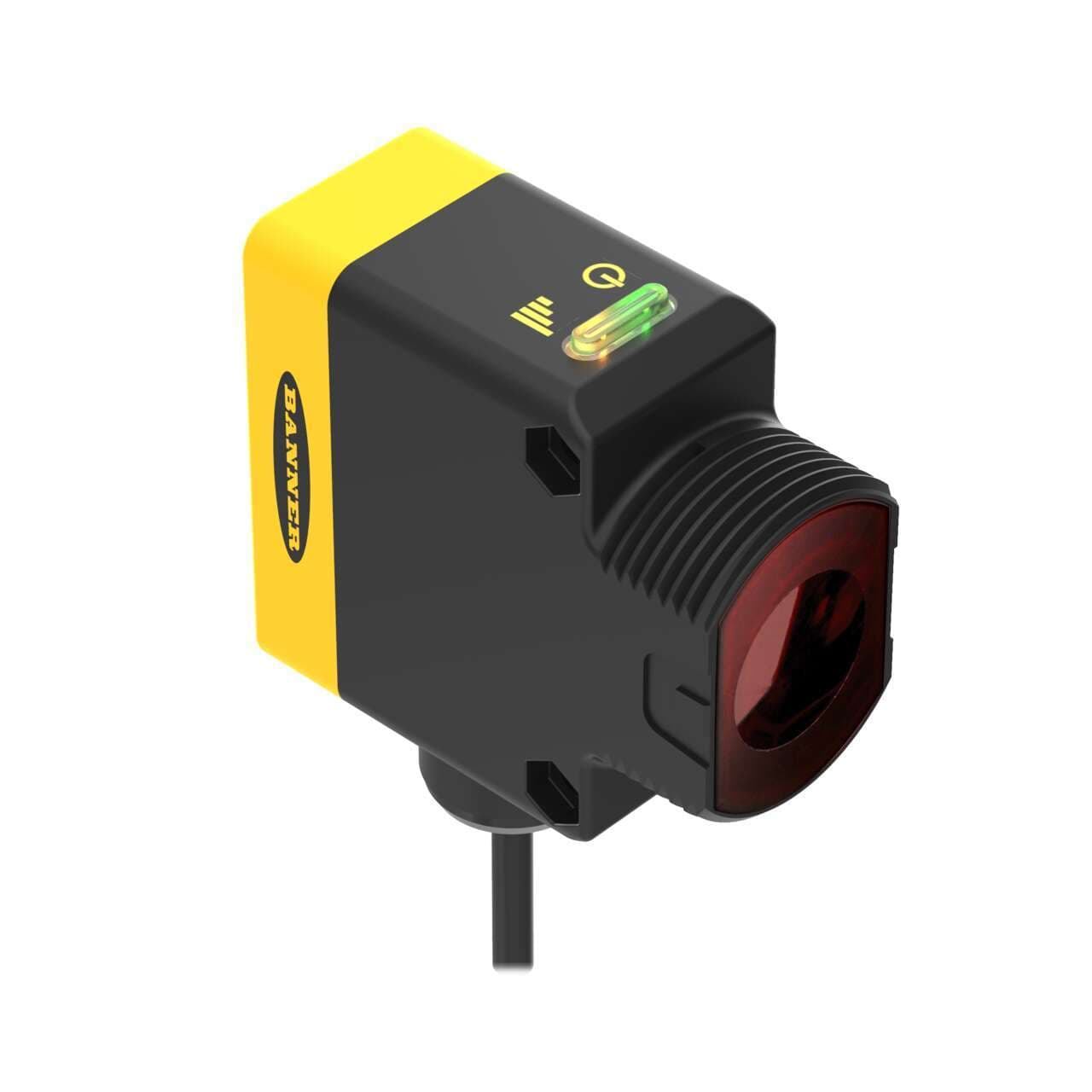

Banner Engineering QS30ARH2OQ5 is a photo-electric sensor designed for water detection, featuring a through-beam system in an opposed mode configuration. This sensor is equipped with a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +60°C. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector, ensuring easy and quick connectivity. Part of the QS30H2O series, it boasts an IP67 NEMA PW12 degree of protection, making it suitable for challenging environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. With a sensing distance of 2m and utilizing infrared (IR) light, it provides precise detection capabilities. The QS30ARH2OQ5 features a Light-ON operating mode and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 1ms / 0.001 s.

QS30ARH2OQ5

Banner Engineering QS30ARH2OQ5 is a photo-electric sensor designed for water detection, featuring a through-beam system in an opposed mode configuration. This sensor is equipped with a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +60°C. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector, ensuring easy and quick connectivity. Part of the QS30H2O series, it boasts an IP67 NEMA PW12 degree of protection, making it suitable for challenging environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. With a sensing distance of 2m and utilizing infrared (IR) light, it provides precise detection capabilities. The QS30ARH2OQ5 features a Light-ON operating mode and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 1ms / 0.001 s.

WORLD-BEAM QS30H2O Water Sensor.pdf

Product details

WORLD-BEAM QS30H2O Water Sensor.pdf

IO LinkNo
DeviceNetNo
Feature: Chemical ResistantNo
Feature: Hazardous AreaNo
Feature: EncapsulatedNo
Feature: AudibleNo

Feature: Timing (Hold/Delay)No

Opposed Mode Emitter/ReceiverReceiver

IndicatorLEDs

Barrel Diameter (mm)30

AdjustmentsN/A

Lens MaterialAcrylic

Max Op. Relative Humidity [%]95% @ 50°C

IP RatingIP67

NEMA RatingNEMA PW12

Number of Pins5

Repeatability (µs)500

Delay at Power-up (ms)100

Special Feature: Water DetectionYes

Output response time (ms)1

Special Feature: Remote TeachNo

Special Feature: Intrinsically SafeNo

Max Op. Temp. (°C)60

OperationLight Operate

Min Op. Temp. (°C)-20

Quick Disconnect TypeM12 (Euro)

ConnectionPigtail QD

Primary Housing MaterialThermoplastic

Power Supply/Supply Voltage10-30 V dc

Max Sensing Distance (mm)2000

PowerDC

Housing StyleRectangular w/M30 Mount

Input/OutputDiscrete

Sensing Mode (General)Opposed

Sensing Mode (Detailed)Receiver

OutputsBipolar (NPN & PNP)

Sensing BeamLong Infrared (Water Detection)

Product series / family nameWORLD-BEAM series

Light ColorInfrared (IR)

Main functionSensor (Photo-electric)

Designthrough-beam system / opposed mode water detection

Connection typePre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

ShapeRectangular

Sub-range nameQS30H2O series

FunctionsPhoto-electric sensor receiver green LED (power ON) yellow LED (output state)

Thread sizeM30

Digital outputs1 x digital output (PNP/NPN transistor)

Compliant with standard(s)cURus CE

Primary brandBanner Engineering

Sensing distance2m

Mounting modeThreaded mount

Ambient air temperature for operation-20...+60 °C

Operating modeLight-ON

Materialthermoplastic housing Acrylic lns.

Response time1ms / 0.001 s

Order code / Manufacturer SKU79169

Degree of protectionIP67 NEMA PW12
