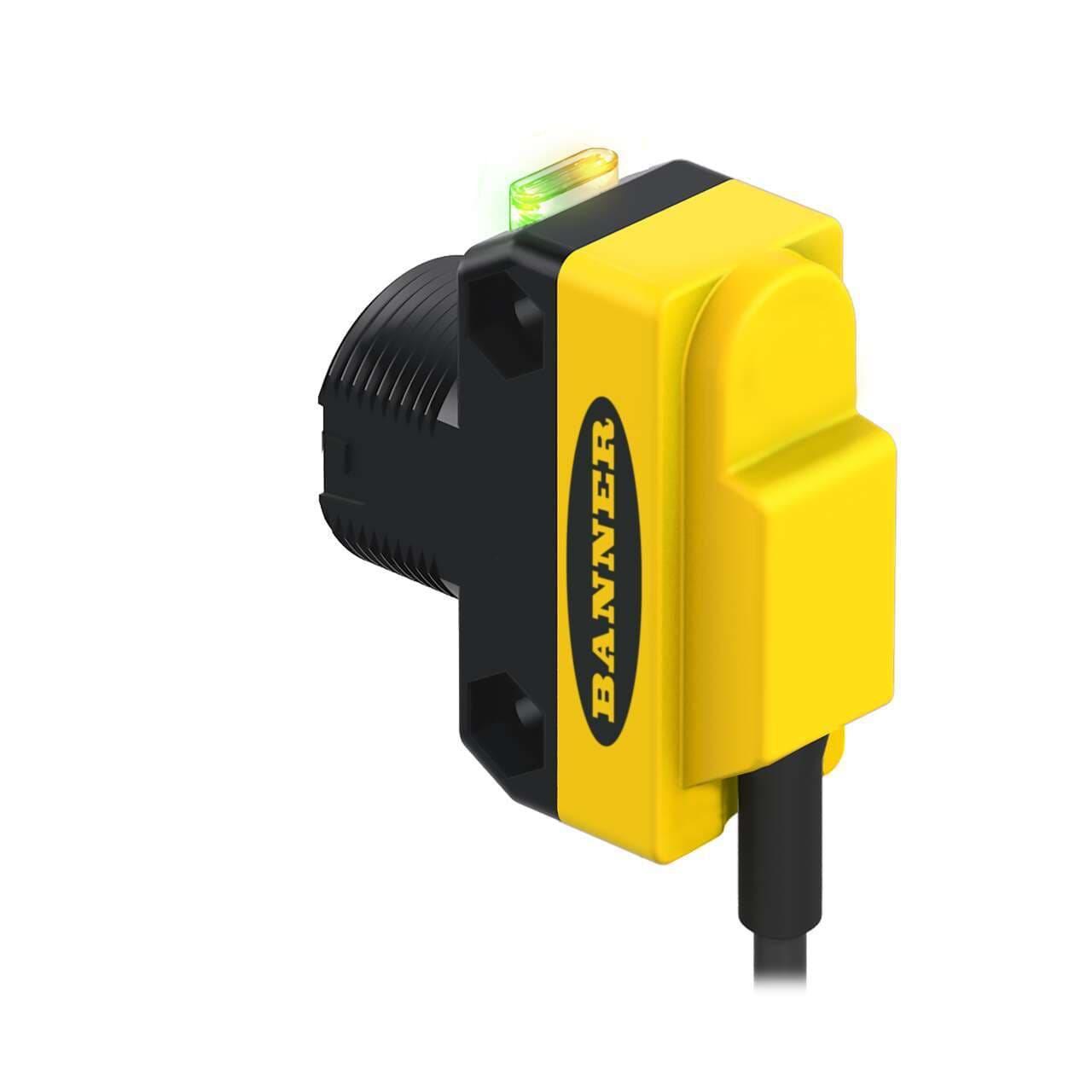

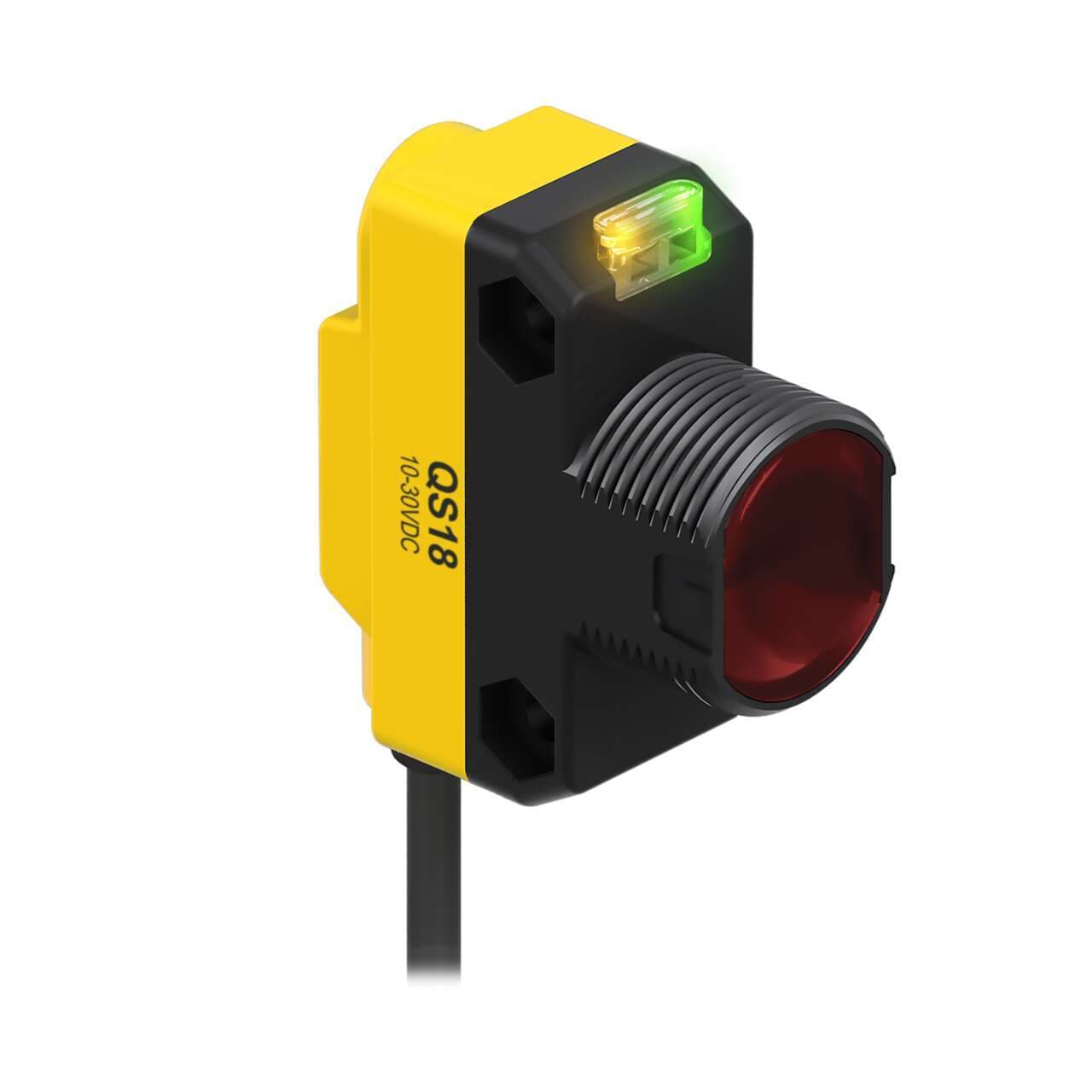

QS18VP6R Banner Proximity Sensors
Part#:QS18VP6R
Alt. Part#:61624
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 81.64656 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Thread size M18
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 61624
- Primary brand Banner Engineering
- Sub-range name QS18 series
- Sensing distance 20m
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Compliant with standard(s) cURus CE
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (light sensed)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing Acrylic lns.
- Digital outputs 1 x digital output (PNP transistor)
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -20...+70 °C
- Input/Output Discrete
- Operation Light/Dark Operate
- IP Rating IP67
- IO Link No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Outputs PNP
- Max Sensing Distance (mm) 20000
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver Receiver
- Sensing Mode (Detailed) Receiver
- Max Op. Temp. (°C) 70
- Adjustments N/A
- Feature: Timing (Hold/Delay) No
- Quick Disconnect Type No QD
- Housing Style Rectangular w/M18 Mount
- Repeatability (µs) 100
- Barrel Diameter (mm) 18
- DeviceNet No
- Min Op. Temp. (°C) -20
- Sensing Mode (General) Opposed
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Cable Length (m) 2
- Output response time (ms) 0.75 ON/0.375 OFF
- Sensing Beam Visible Red or IR
- Indicator LEDs
- Primary Housing Material ABS
- Connection Cable
- Number of Pins 4
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6R on Powermatic Associates is $81.00. Order now.
About the product
Banner Engineering QS18VP6R is a photo-electric sensor designed for through-beam system applications with an opposed mode potentiometer adjustment. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS18 series and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environmental conditions. The QS18VP6R operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it can detect objects up to 20m away. The sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.6ms / 0.0006 s.
