QS18EN6XLPCQ

Banner

Product Lifecycle: Active

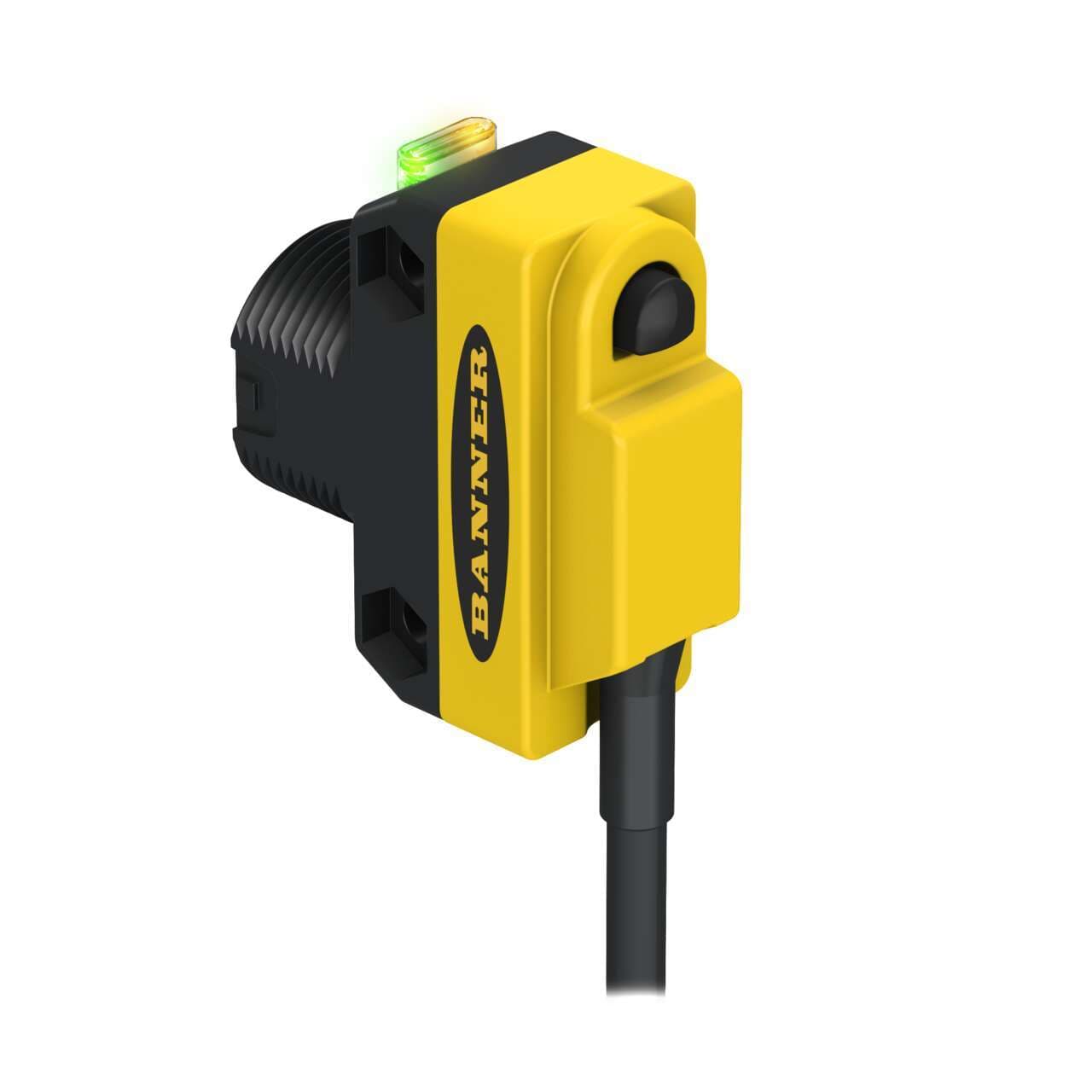

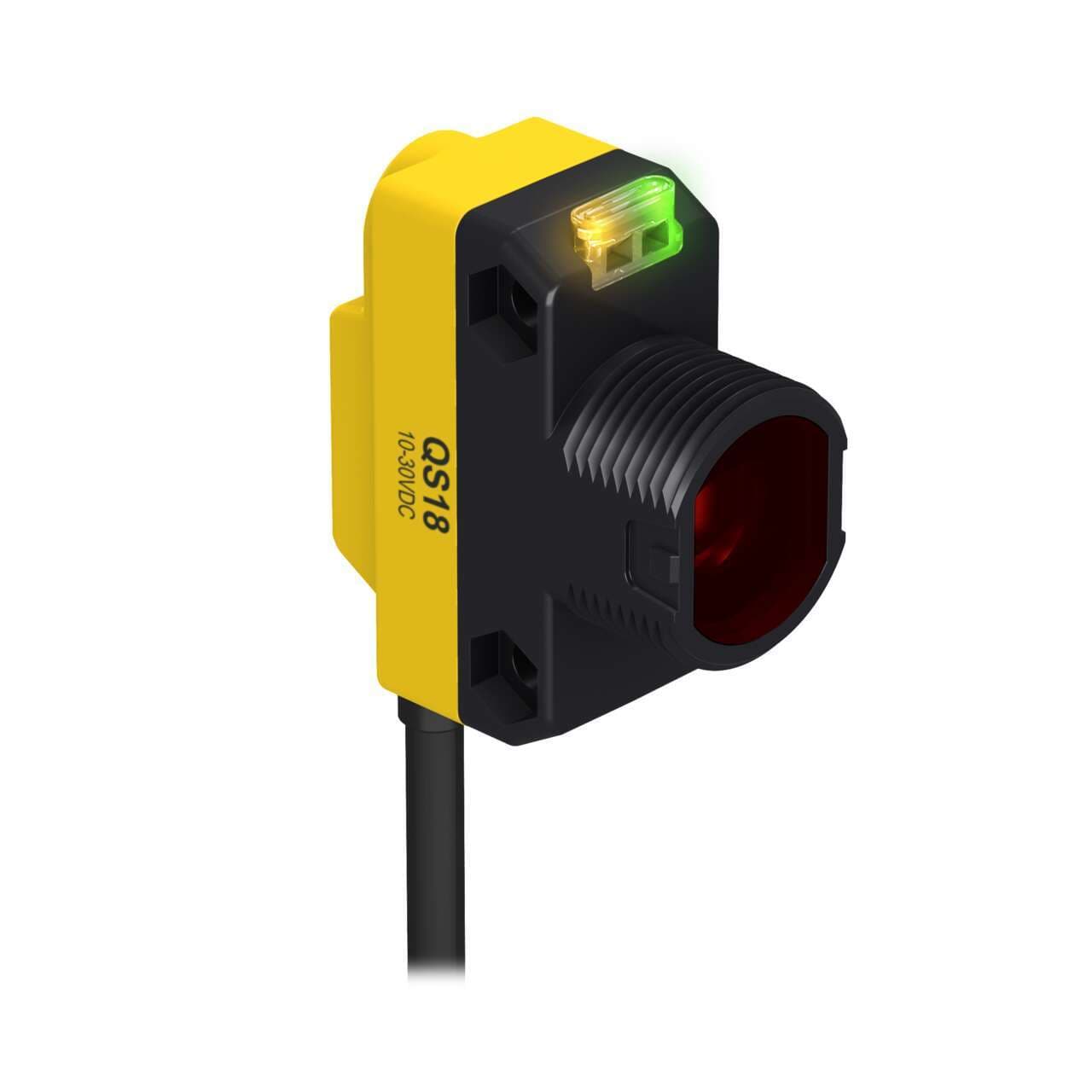

Banner Engineering QS18EN6XLPCQ is a polarized (coaxial) photo-electric sensor designed for retro-reflective mode with TEACH mode functionality. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the QS18 Expert series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. The QS18EN6XLPCQ operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens. The sensing distance is up to 3m, utilizing visible red light with a wavelength of 625 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor) with a response time of 0.4ms / 0.0004 s.

QS18EN6XLPCQ

Banner Engineering QS18EN6XLPCQ is a polarized (coaxial) photo-electric sensor designed for retro-reflective mode with TEACH mode functionality. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the QS18 Expert series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. The QS18EN6XLPCQ operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens. The sensing distance is up to 3m, utilizing visible red light with a wavelength of 625 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor) with a response time of 0.4ms / 0.0004 s.

  • DeviceNetNo
  • Feature: Chemical ResistantNo
  • Opposed Mode Emitter/ReceiverN/A
  • Feature: Hazardous AreaNo
  • Feature: AudibleNo
  • Feature: Clear Object DetectionYes
  • IndicatorLEDs
  • IO LinkNo
  • Feature: Timing (Hold/Delay)Yes
  • Feature: EncapsulatedNo
  • Barrel Diameter (mm)18
  • AdjustmentsTeach Button
  • Lens MaterialPMMA
  • Max Op. Relative Humidity [%]95% @ 50°C
  • IP RatingIP67
  • Sensing Beam Wavelength625
  • NEMA RatingNEMA 6
  • Repeatability (µs)100
  • Number of Pins4
  • Delay at Power-up (ms)100
  • Special Feature: Water DetectionNo
  • Output response time (ms)0.4
  • Max Op. Temp. (°C)70
  • Power Supply/Supply Voltage10-30 V dc
  • OperationLight/Dark Operate
  • Special Feature: Intrinsically SafeNo
  • Quick Disconnect TypeM8 (Pico)
  • Special Feature: Remote TeachYes
  • Min Op. Temp. (°C)-40
  • ConnectionPigtail QD
  • Sensing Mode (Detailed)Polarized (Coaxial)
  • Max Sensing Distance (mm)3000
  • OutputsNPN
  • Sensing BeamVisible Red LED
  • Housing StyleRectangular w/M18 Mount
  • Sensing Mode (General)Retroreflective
  • PowerDC
  • Input/OutputDiscrete
  • Primary Housing MaterialABS
  • Light ColorVisible red
  • Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Degree of protectionIP67 NEMA 6
  • Product series / family nameWORLD-BEAM series
  • Wavelength625 nm
  • Operating modeLight-ON Dark-ON
  • Sub-range nameQS18 Expert series
  • Sensing distance3m
  • Thread sizeM18
  • Digital outputs1 x digital output (NPN transistor)
  • Main functionSensor (Photo-electric)
  • FunctionsPolarized (coaxial) photo-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
  • Designretro-reflective mode
  • Mounting modeThreaded mount
  • Response time0.4ms / 0.0004 s
  • Primary brandBanner Engineering
  • Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • ShapeRectangular
  • Materialthermoplastic housing PMMA lns.
  • Ambient air temperature for operation-40...+70 °C
  • Order code / Manufacturer SKU97639
  • Compliant with standard(s)cURus CE
