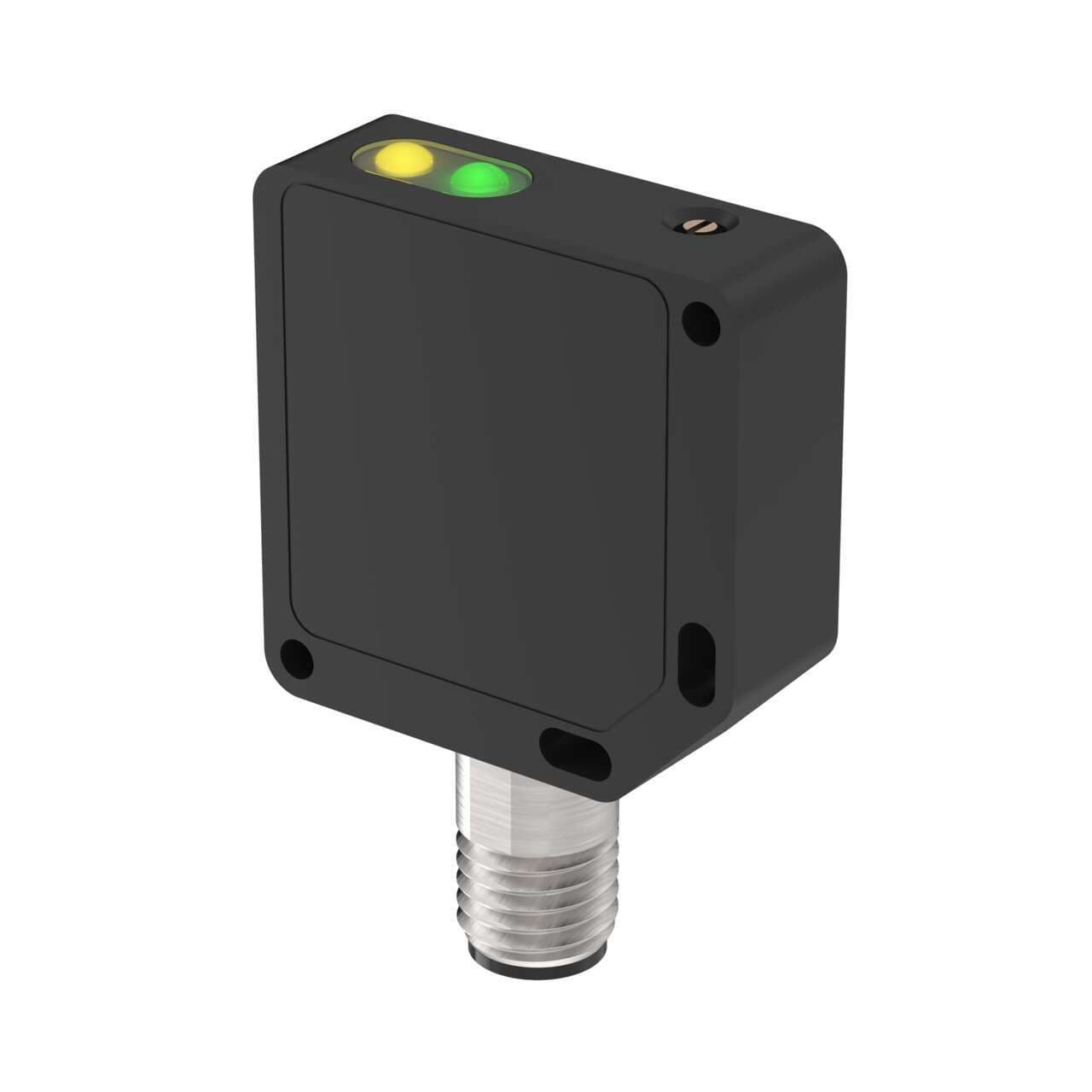

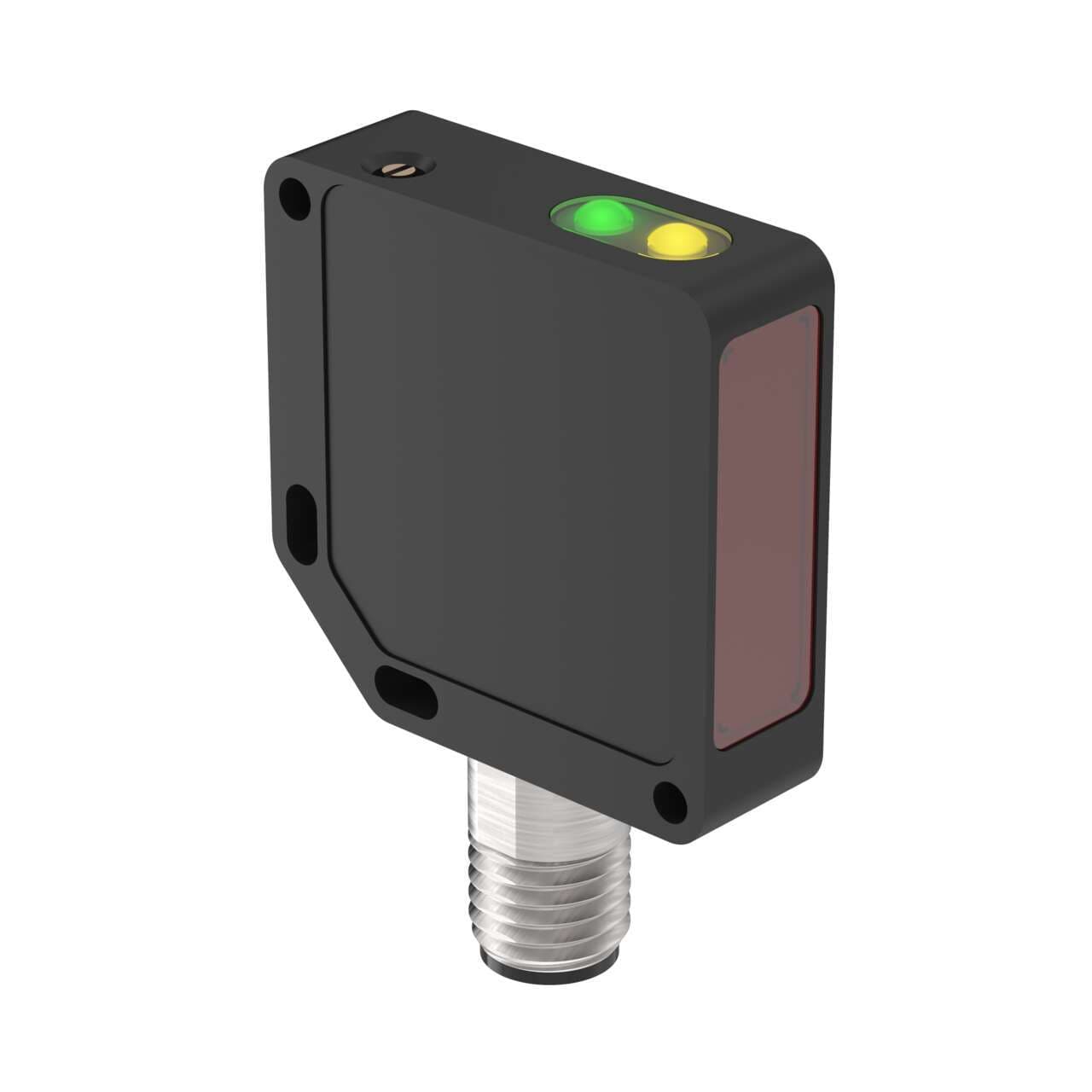

QM42VP6RQ Banner Optical Sensors
Part#:QM42VP6RQ
Alt. Part#:44335
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
QM42 Series: Receiver; Range: 10 m; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 4-pin M12 Integral QD
Product Details
- Weight 101.604608 g
- Country Of Origin CN
- IO Link No
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Encapsulated No
- Opposed Mode Emitter/Receiver Receiver
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- Barrel Diameter (mm) N/A
- Adjustments Potentiometer
- Lens Material Acrylic
- IP Rating IP67
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6
- Repeatability (µs) 120
- Delay at Power-up (ms) 100
- Number of Pins 4
- Sensing Beam Wavelength 880
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 1 ON/0.5 OFF
- Operation Light/Dark Operate
- Max Op. Temp. (°C) 70
- Quick Disconnect Type M12 (Euro)
- Power Supply/Supply Voltage 10-30 V dc
- Min Op. Temp. (°C) -20
- Connection Integral QD
- Max Sensing Distance (mm) 10000
- Outputs PNP
- Power DC
- Sensing Mode (Detailed) Receiver
- Housing Style Rectangular
- Sensing Mode (General) Opposed
- Input/Output Discrete
- Primary Housing Material Zinc Alloy Die-Cast
- Sensing Beam Infrared LED
- Light Color Infrared (IR)
- Degree of protection IP67 NEMA 6
- Product series / family name Q series
- Wavelength 880 nm
- Response time 1ms / 0.001 s
- Net Height (mm) 42 mm
- Sub-range name QM42
- Sensing distance 10m
- Color Black housing
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Net Depth (mm) 42 mm
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver green LED (power ON) red LED (failure) potentiometer adjustment
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 44335
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material Die-cast Zinc alloy housing Acrylic lns.
- Net Width (mm) 12.7 mm
- Ambient air temperature for operation -20...+70 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM42VP6RQ on Powermatic Associates is $172.00. Order now.
About the product
Banner Engineering QM42VP6RQ is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a die-cast Zinc alloy with an acrylic lens, featuring a black color. It measures 42 mm in height, 13 mm in width, and 42 mm in depth, making it rectangular in shape. The QM42VP6RQ is part of the QM42 series and offers a sensing distance of 10 meters. It utilizes infrared light with a wavelength of 880 nm and can operate in both Light-ON and Dark-ON modes. This sensor is equipped with a 4-pin Euro-style M12 connector for its connection type and has a degree of protection rated at IP67 NEMA 6, ensuring its durability in various environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.
