QM42VN6D Banner Optical Sensors

Name: QM42VN6D
Brand: Banner
Price: 265 USD
Availability: BackOrder

Part#:QM42VN6D

Manufacturer:Banner

Category:Optical Sensors

Alt. Part#:44338

Product Lifecycle:Active

Get a quick Quote!

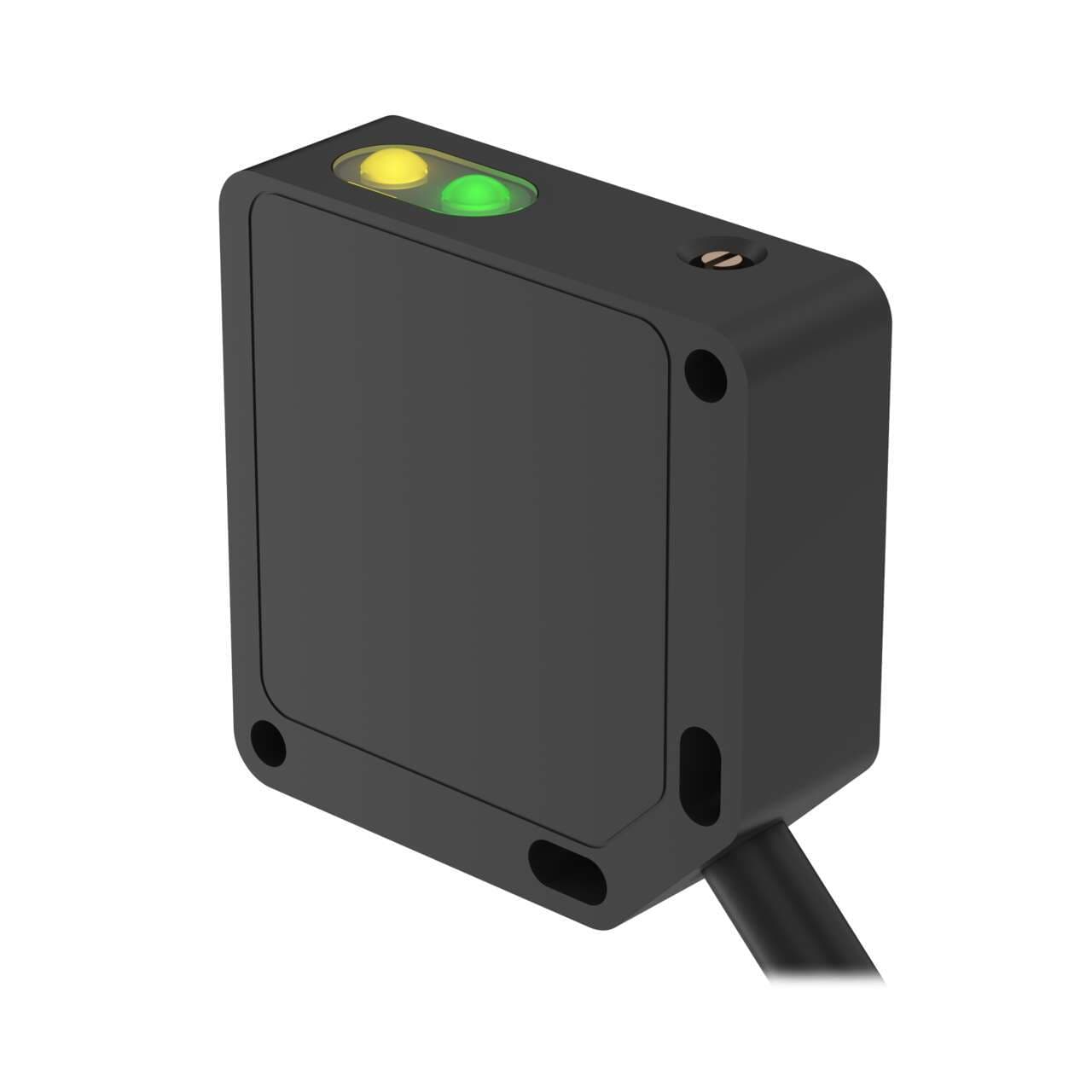

QM42 Series: Diffuse; Range: 400 mm; Input: 10-30 V dc; Output: SPDT (Complementary) NPN; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QM42VN6D Banner price in the box on the right side or send a quick quote.

Product Details

Weight
190.50864 g
Country Of Origin
CN
Max Op. Temp. (°C)
70
Min Op. Temp. (°C)
-20
Quick Disconnect Type
No QD
Connection
Cable
Power Supply/Supply Voltage
10-30 V dc
Max Sensing Distance (mm)
400
Sensing Mode (Detailed)
Diffuse
Housing Style
Rectangular
Input/Output
Discrete
Primary Housing Material
Zinc Alloy Die-Cast
Sensing Mode (General)
Proximity
Power
DC
Sensing Beam
Infrared LED
Cable Length (m)
2
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Rectangular
Response time
1ms / 0.001 s
Compliant with standard(s)
cURus CE

Product series / family name

Q series

Main function

Sensor (Photo-electric)

Functions

Photo-electric sensor green LED (power ON) red LED (failure) potentiometer adjustment

Wavelength

880 nm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Material

Die-cast Zinc alloy housing Acrylic lns.

Primary brand

Banner Engineering

Design

diffuse mode

Color

Black housing

IO Link

DeviceNet

Opposed Mode Emitter/Receiver

N/A

Feature: Audible

Feature: Chemical Resistant

Feature: Hazardous Area

Feature: Encapsulated

Feature: Timing (Hold/Delay)

Indicator

LEDs

Barrel Diameter (mm)

N/A

Adjustments

Potentiometer

Lens Material

Acrylic

Max Op. Relative Humidity [%]

90% @ 50°C

IP Rating

IP67

NEMA Rating

NEMA 6

Number of Pins

Repeatability (µs)

250

Sensing Beam Wavelength

880

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Outputs

NPN

Special Feature: Intrinsically Safe

Output response time (ms)

Operation

Light/Dark Operate

Digital outputs

1 x digital output (NPN transistor)

Ambient air temperature for operation

-20...+70 °C

Net Width (mm)

12.7 mm

Sub-range name

QM42

Light Color

Infrared (IR)

Operating mode

Light-ON Dark-ON

Net Height (mm)

42 mm

Sensing distance

400mm

Degree of protection

IP67 NEMA 6

Net Depth (mm)

42 mm

Order code / Manufacturer SKU

44338

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QM42VN6D Description

Banner Engineering QM42VN6D is a photo-electric sensor designed for a variety of applications, featuring a diffuse mode with potentiometer adjustment. It operates within an ambient air temperature range of -20 to +70°C and is housed in a die-cast Zinc alloy with an acrylic lens, ensuring durability. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. Part of the QM42 series, it offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The QM42VN6D operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and features a rectangular shape with dimensions of 42mm in height, 13mm in width, and 42mm in depth. It has a sensing distance of 400mm and utilizes infrared light with a wavelength of 880 nm. The sensor supports Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.
