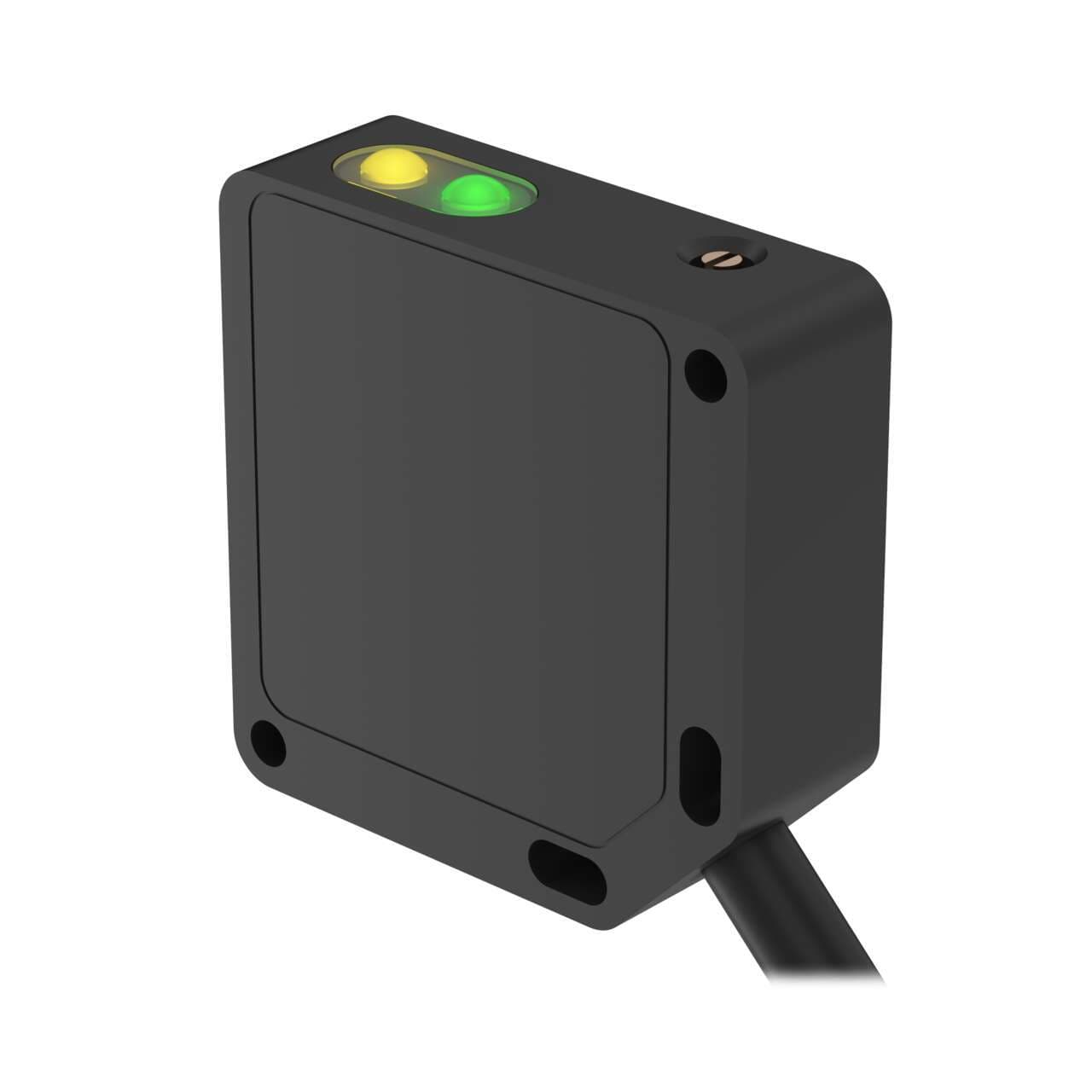

QM42VP6D Banner Optical Sensors

Name: QM42VP6D
Brand: Banner
Price: 198 USD
Availability: BackOrder

Part#:QM42VP6D

Alt. Part#:44333

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QM42 Series: Diffuse; Range: 400 mm; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 2 m (6.5 ft) Cable

Product Details

Weight
189.601456 g
Country Of Origin
CN
DeviceNet
No
IO Link
No
Indicator
LEDs
Opposed Mode Emitter/Receiver
N/A
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Feature: Encapsulated
No
Barrel Diameter (mm)
N/A
Adjustments
Potentiometer
Number of Pins
4
Delay at Power-up (ms)
100
Repeatability (µs)
250
Sensing Beam Wavelength
880
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6

IP Rating

IP67

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Output response time (ms)

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-20

Quick Disconnect Type

No QD

Power Supply/Supply Voltage

10-30 V dc

Connection

Cable

Outputs

PNP

Power

Housing Style

Rectangular

Sensing Mode (Detailed)

Diffuse

Input/Output

Discrete

Primary Housing Material

Zinc Alloy Die-Cast

Max Sensing Distance (mm)

400

Sensing Mode (General)

Proximity

Cable Length (m)

Sensing Beam

Infrared LED

Primary brand

Banner Engineering

Design

diffuse mode

Wavelength

880 nm

Digital outputs

1 x digital output (PNP transistor)

Net Width (mm)

12.7 mm

Main function

Sensor (Photo-electric)

Light Color

Infrared (IR)

Shape

Rectangular

Degree of protection

IP67 NEMA 6

Sub-range name

QM42

Functions

Photo-electric sensor green LED (power ON) red LED (failure) potentiometer adjustment

Operating mode

Light-ON Dark-ON

Material

Die-cast Zinc alloy housing Acrylic lns.

Product series / family name

Q series

Sensing distance

400mm

Color

Black housing

Ambient air temperature for operation

-20...+70 °C

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Response time

1ms / 0.001 s

Order code / Manufacturer SKU

44333

Compliant with standard(s)

cURus CE

Net Depth (mm)

42 mm

Net Height (mm)

42 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM42VP6D on Powermatic Associates is $198.00. Order now.

About the product

Banner Engineering QM42VP6D is a photo-electric sensor designed for a variety of applications, featuring a diffuse mode with potentiometer adjustment. It operates within an ambient air temperature range of -20 to +70°C and is housed in a die-cast zinc alloy with an acrylic lens, ensuring durability. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. Part of the QM42 series, it offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The QM42VP6D operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and features a rectangular shape with dimensions of 42mm in height, 13mm in width, and 42mm in depth. It has a sensing distance of 400mm and utilizes infrared light with a wavelength of 880 nm. The sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.
