QM42VP6DQ Banner Optical Sensors

QM42VP6DQ on Powermatic Associates
Banner

Part#:QM42VP6DQ

Manufacturer:Banner

Alt. Part#:44336

Product Lifecycle:Active

Get a quick Quote!

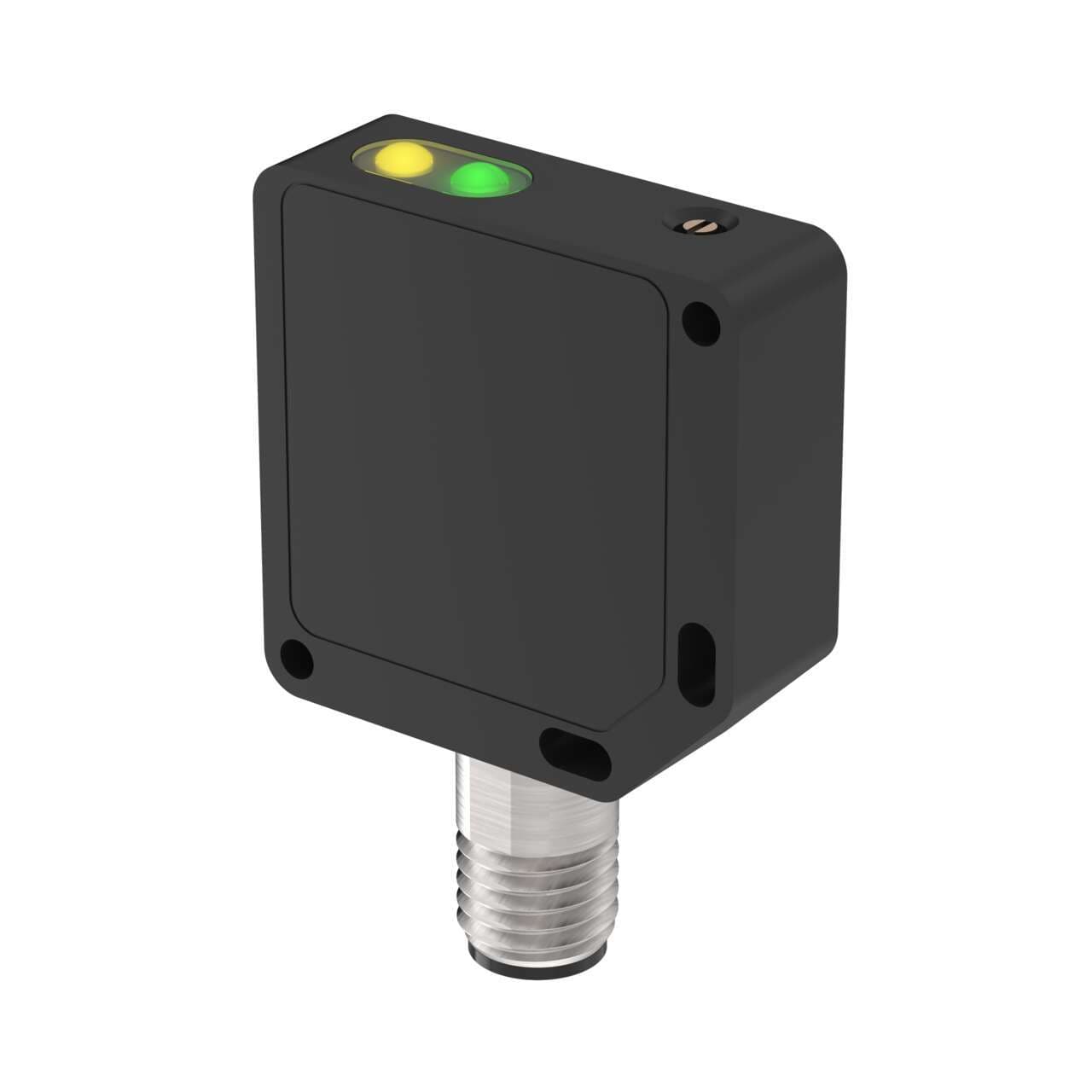

QM42 Series: Diffuse; Range: 400 mm; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QM42VP6DQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    101.604608 g
  • Country Of Origin
    CN
  • Feature: Chemical Resistant
    No
  • Special Feature: Water Detection
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Indicator
    LEDs
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Barrel Diameter (mm)
    N/A
  • Opposed Mode Emitter/Receiver
    N/A
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Repeatability (µs)
    250
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • Number of Pins
    4
  • Sensing Beam Wavelength
    880
  • Special Feature: Remote Teach
    No
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1
  • Min Op. Temp. (°C)
    -20
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Integral QD
  • Max Sensing Distance (mm)
    400
  • Outputs
    PNP
  • Power
    DC
  • Housing Style
    Rectangular
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Sensing Beam
    Infrared LED
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Mode (General)
    Proximity
  • Product series / family name
    Q series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    diffuse mode
  • Response time
    1ms / 0.001 s
  • Primary brand
    Banner Engineering
  • Digital outputs
    1 x digital output (PNP transistor)
  • Functions
    Photo-electric sensor green LED (power ON) red LED (failure) potentiometer adjustment
  • Color
    Black housing
  • Degree of protection
    IP67 NEMA 6
  • Order code / Manufacturer SKU
    44336
  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    QM42
  • Wavelength
    880 nm
  • Operating mode
    Light-ON Dark-ON
  • Net Depth (mm)
    42 mm
  • Light Color
    Infrared (IR)
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Ambient air temperature for operation
    -20...+70 °C
  • Net Height (mm)
    42 mm
  • Sensing distance
    400mm
  • Shape
    Rectangular
  • Material
    Die-cast Zinc alloy housing Acrylic lns.
  • Net Width (mm)
    12.7 mm
  • Compliant with standard(s)
    cURus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QM42VP6DQ Description

Banner Engineering QM42VP6DQ is a photo-electric sensor designed for a variety of applications, featuring a diffuse mode with potentiometer adjustment. It operates within an ambient air temperature range of -20 to +70 degrees Celsius and is housed in a die-cast Zinc alloy with an acrylic lens, ensuring durability. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for easy installation and falls under the QM42 series. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The supply voltage requirement ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. Its rectangular shape measures 42mm in height, 13mm in width, and 42mm in depth. The sensing distance is up to 400mm, utilizing infrared light with a wavelength of 880 nm. It features a digital output (PNP transistor; complementary NO/NC) and boasts a quick response time of 1ms / 0.001 s. The operating modes include Light-ON and Dark-ON, providing flexibility for various sensing tasks.

Related documents QM42VP6DQ Specs

QM42VP6DQ 44487.pdf
