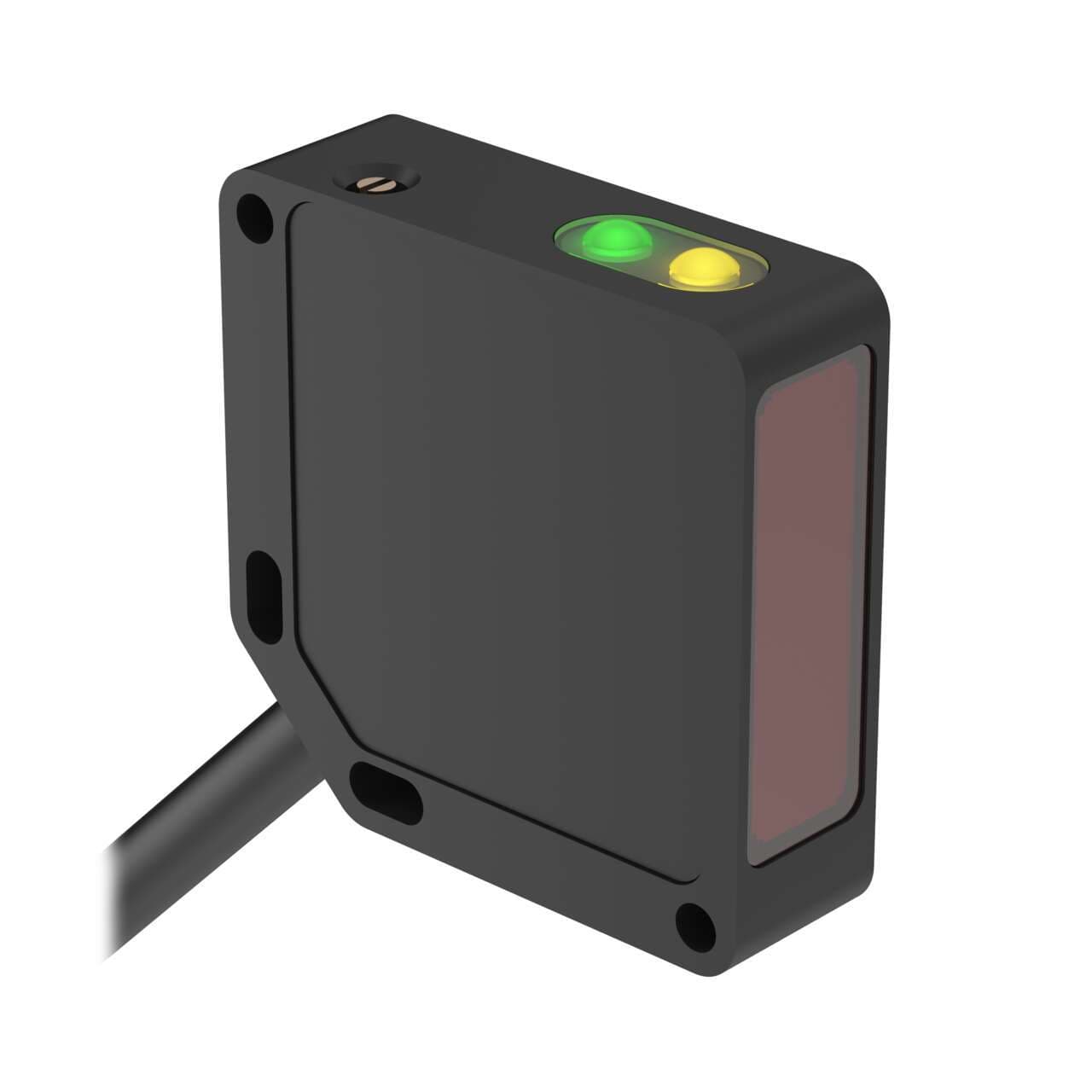

QM42VP6R Banner Optical Sensors

Name: QM42VP6R
Brand: Banner
Price: 211 USD
Availability: BackOrder

Part#:QM42VP6R

Manufacturer:Banner

Category:Optical Sensors

Alt. Part#:44332

Product Lifecycle:Active

Get a quick Quote!

QM42 Series: Receiver; Range: 10 m; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QM42VP6R Banner price in the box on the right side or send a quick quote.

Product Details

Weight
190.962232 g
Country Of Origin
CN
Feature: Chemical Resistant
No
Feature: Encapsulated
No
Feature: Hazardous Area
No
DeviceNet
No
Feature: Audible
No
IO Link
No
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
Receiver
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
Indicator
LEDs
Barrel Diameter (mm)
N/A
Adjustments
Potentiometer
Repeatability (µs)
120
NEMA Rating
NEMA 6
IP Rating
IP67
Special Feature: Water Detection
No
Sensing Beam Wavelength
880

Special Feature: Remote Teach

Number of Pins

Delay at Power-up (ms)

100

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Min Op. Temp. (°C)

-20

Operation

Light/Dark Operate

Quick Disconnect Type

No QD

Output response time (ms)

1 ON/0.5 OFF

Connection

Cable

Outputs

PNP

Power Supply/Supply Voltage

10-30 V dc

Sensing Mode (General)

Opposed

Sensing Beam

Infrared LED

Max Sensing Distance (mm)

10000

Primary Housing Material

Zinc Alloy Die-Cast

Housing Style

Rectangular

Sensing Mode (Detailed)

Receiver

Power

Input/Output

Discrete

Cable Length (m)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Product series / family name

Q series

Wavelength

880 nm

Sub-range name

QM42

Design

through-beam system / opposed mode

Digital outputs

1 x digital output (PNP transistor)

Shape

Rectangular

Ambient air temperature for operation

-20...+70 °C

Primary brand

Banner Engineering

Color

Black housing

Operating mode

Light-ON Dark-ON

Degree of protection

IP67 NEMA 6

Net Height (mm)

42 mm

Main function

Sensor (Photo-electric)

Sensing distance

10m

Response time

1ms / 0.001 s

Order code / Manufacturer SKU

44332

Material

Die-cast Zinc alloy housing Acrylic lns.

Compliant with standard(s)

cURus CE

Net Width (mm)

12.7 mm

Light Color

Infrared (IR)

Net Depth (mm)

42 mm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Functions

Photo-electric sensor receiver green LED (power ON) red LED (failure) potentiometer adjustment

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QM42VP6R Description

Banner Engineering QM42VP6R is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. It operates within an ambient air temperature range of -20 to +70°C and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor is part of the QM42 series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The QM42VP6R has a rectangular shape with dimensions of 42mm in height, 13mm in width, and 42mm in depth, and is constructed from a die-cast Zinc alloy housing with an Acrylic lens. The housing is black, and the sensor can detect objects up to 10m away using infrared light with a wavelength of 880 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.
