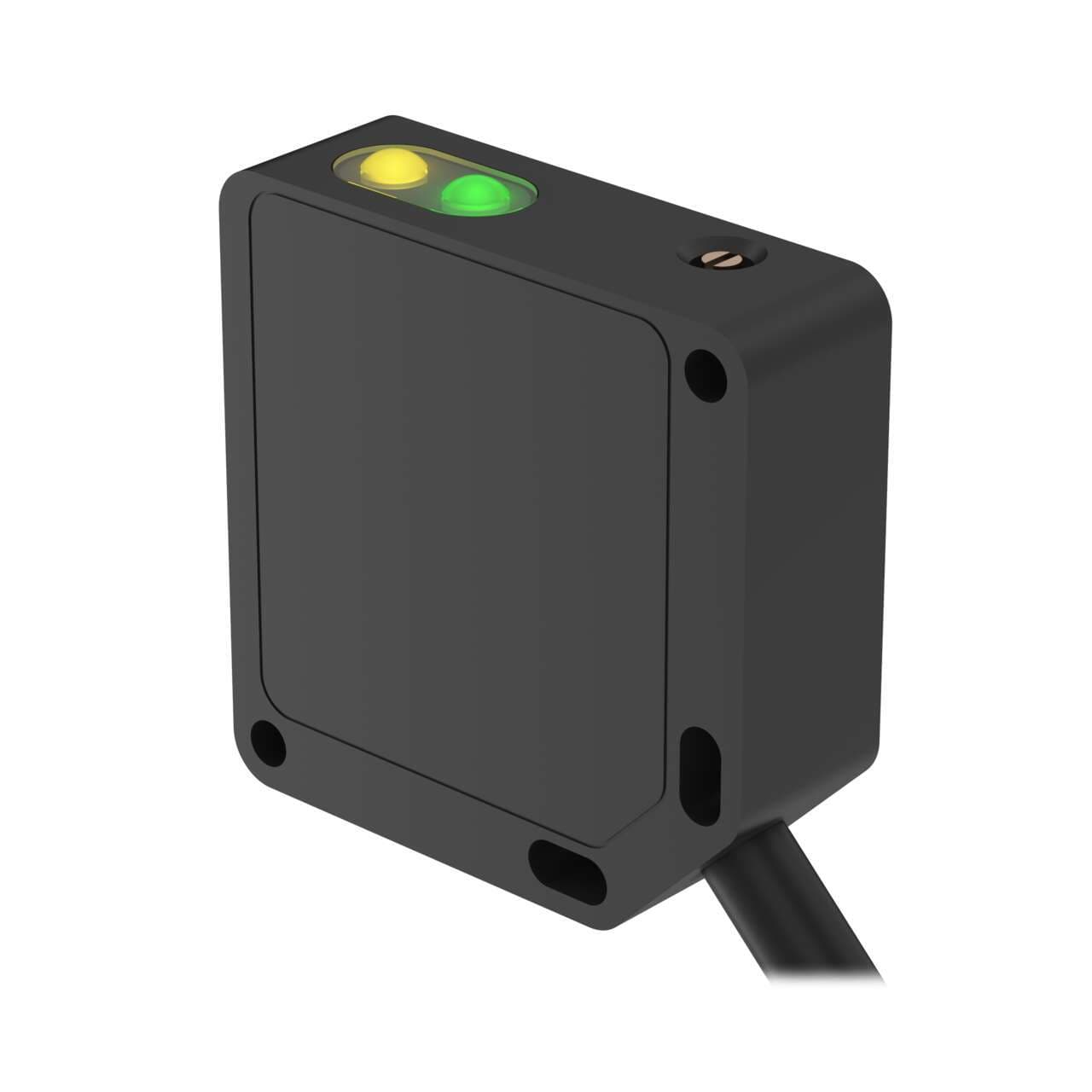

QM42VP6LP Banner Optical Sensors

QM42VP6LP on Powermatic Associates
Banner

Part#:QM42VP6LP

Manufacturer:Banner

Alt. Part#:44901

Product Lifecycle:Active

Get a quick Quote!

QM42 Series: Polarized Retro; Range: 3 m; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QM42VP6LP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    190.50864 g
  • Country Of Origin
    CN
  • Lens Material
    Acrylic
  • Adjustments
    Potentiometer
  • Delay at Power-up (ms)
    100
  • Number of Pins
    4
  • IP Rating
    IP67
  • Sensing Beam Wavelength
    660
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Repeatability (µs)
    250
  • Quick Disconnect Type
    No QD
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -20
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Connection
    Cable
  • Operation
    Light/Dark Operate
  • Outputs
    PNP
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Polarized
  • Max Sensing Distance (mm)
    3000
  • Input/Output
    Discrete
  • Sensing Mode (General)
    Retroreflective
  • Sensing Beam
    Visible Red LED
  • Power
    DC
  • Cable Length (m)
    2
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cURus CE
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Visible red
  • Degree of protection
    IP67 NEMA 6
  • Primary brand
    Banner Engineering
  • Sensing distance
    3m
  • Sub-range name
    QM42
  • Design
    retro-reflective mode
  • Color
    Black housing
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    Die-cast Zinc alloy housing Acrylic lns.
  • Net Width (mm)
    12.7 mm
  • Product series / family name
    Q series
  • Functions
    Polarized photo-electric sensor green LED (power ON) red LED (failure) potentiometer adjustment
  • Wavelength
    660 nm
  • Operating mode
    Light-ON Dark-ON
  • Shape
    Rectangular
  • Response time
    1ms / 0.001 s
  • Net Height (mm)
    42 mm
  • Net Depth (mm)
    42 mm
  • Order code / Manufacturer SKU
    44901
  • Ambient air temperature for operation
    -20...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QM42VP6LP Description

Banner Engineering QM42VP6LP is a polarized photo-electric sensor designed for a variety of applications, featuring a retro-reflective mode with potentiometer adjustment. It operates within an ambient air temperature range of -20 to +70°C and is encased in a die-cast Zinc alloy housing with an Acrylic lens, ensuring durability. This sensor is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for easy installation. Part of the QM42 series, it offers a degree of protection rated at IP67 NEMA 6, making it suitable for harsh environments. The QM42VP6LP operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and has a compact, rectangular shape with dimensions of 42mm in height, 13mm in width, and 42mm in depth. It features a sensing distance of up to 3m and utilizes visible red light with a wavelength of 660 nm. The sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a rapid response time of 1ms / 0.001 s.

Related documents QM42VP6LP Specs

QM42VP6LP 44487.pdf
