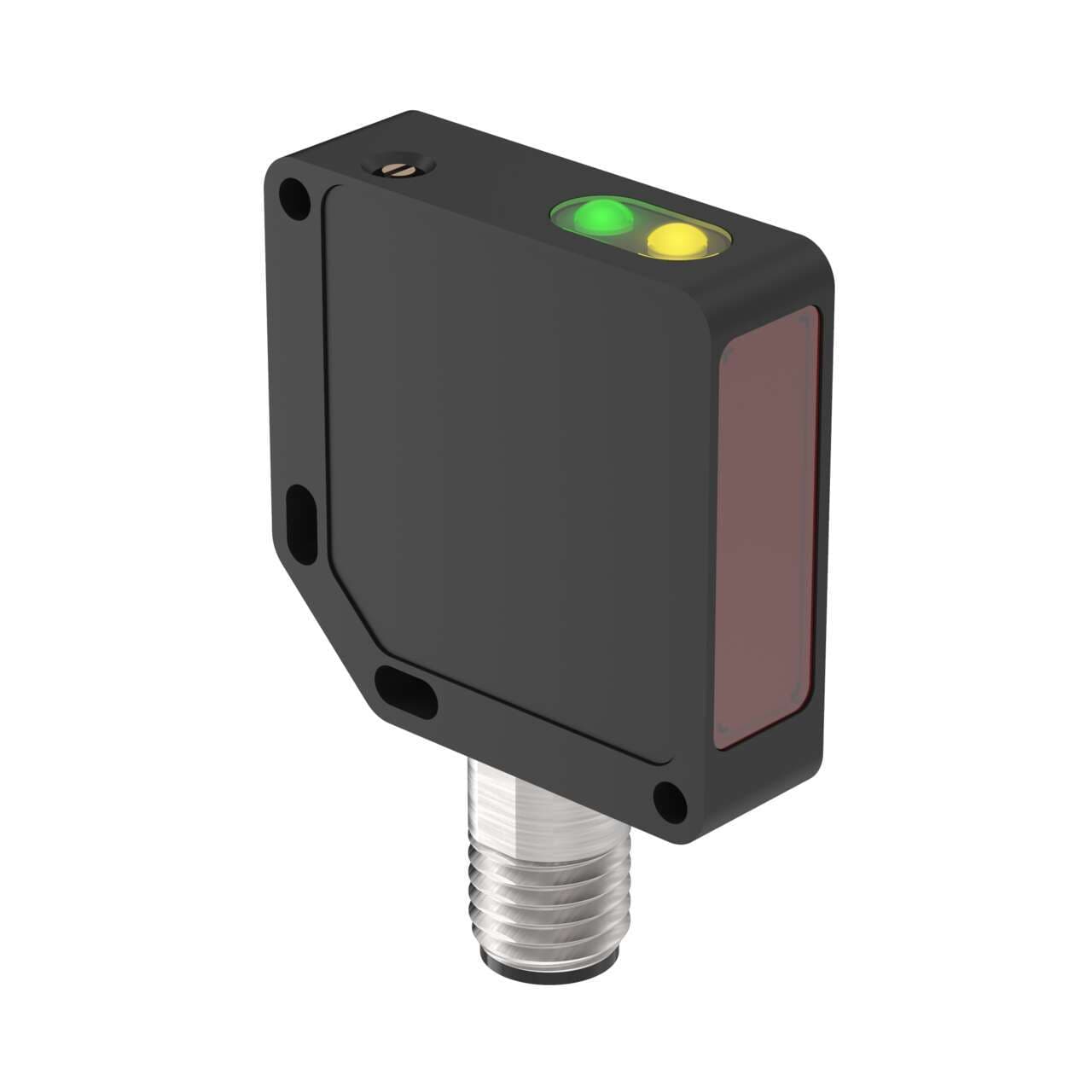

QM42VP6LPQ Banner Optical Sensors

Name: QM42VP6LPQ
Brand: Banner
Price: 187 USD
Availability: BackOrder

Part#:QM42VP6LPQ

Alt. Part#:44903

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QM42 Series: Polarized Retro; Range: 3 m; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 4-pin M12 Integral QD

Product Details

Weight
99.336648 g
Country Of Origin
CN
IO Link
No
DeviceNet
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Feature: Encapsulated
No
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
N/A
Adjustments
Potentiometer
Lens Material
Acrylic
NEMA Rating
NEMA 6
Max Op. Relative Humidity [%]
90% @ 50°C
IP Rating
IP67
Special Feature: Water Detection
No
Repeatability (µs)
250
Delay at Power-up (ms)
100

Sensing Beam Wavelength

660

Number of Pins

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Quick Disconnect Type

M12 (Euro)

Operation

Light/Dark Operate

Output response time (ms)

Power Supply/Supply Voltage

10-30 V dc

Min Op. Temp. (°C)

-20

Connection

Integral QD

Outputs

PNP

Power

Sensing Mode (General)

Retroreflective

Max Sensing Distance (mm)

3000

Input/Output

Discrete

Primary Housing Material

Zinc Alloy Die-Cast

Sensing Mode (Detailed)

Polarized

Housing Style

Rectangular

Sensing Beam

Visible Red LED

Product series / family name

Q series

Design

retro-reflective mode

Light Color

Visible red

Degree of protection

IP67 NEMA 6

Net Height (mm)

42 mm

Main function

Sensor (Photo-electric)

Wavelength

660 nm

Shape

Rectangular

Compliant with standard(s)

cURus CE

Sensing distance

Operating mode

Light-ON Dark-ON

Material

Die-cast Zinc alloy housing Acrylic lns.

Order code / Manufacturer SKU

44903

Sub-range name

QM42

Functions

Polarized photo-electric sensor green LED (power ON) red LED (failure) potentiometer adjustment

Connection type

Pre-equipped with 4-pin Euro-style M12 connector

Response time

1ms / 0.001 s

Net Width (mm)

12.7 mm

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Color

Black housing

Digital outputs

1 x digital output (PNP transistor)

Ambient air temperature for operation

-20...+70 °C

Net Depth (mm)

42 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM42VP6LPQ on Powermatic Associates is $187.00. Order now.

About the product

Banner Engineering QM42VP6LPQ is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +70°C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. Part of the QM42 series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a die-cast Zinc alloy housing with an Acrylic lens, and it has a black housing color. The QM42VP6LPQ measures 42 mm in height, 13 mm in width, and 42 mm in depth. It is capable of sensing distances up to 3m and emits a visible red light with a wavelength of 660 nm. This sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.
