QM42VN6LPQ

Banner

Product Lifecycle: Active

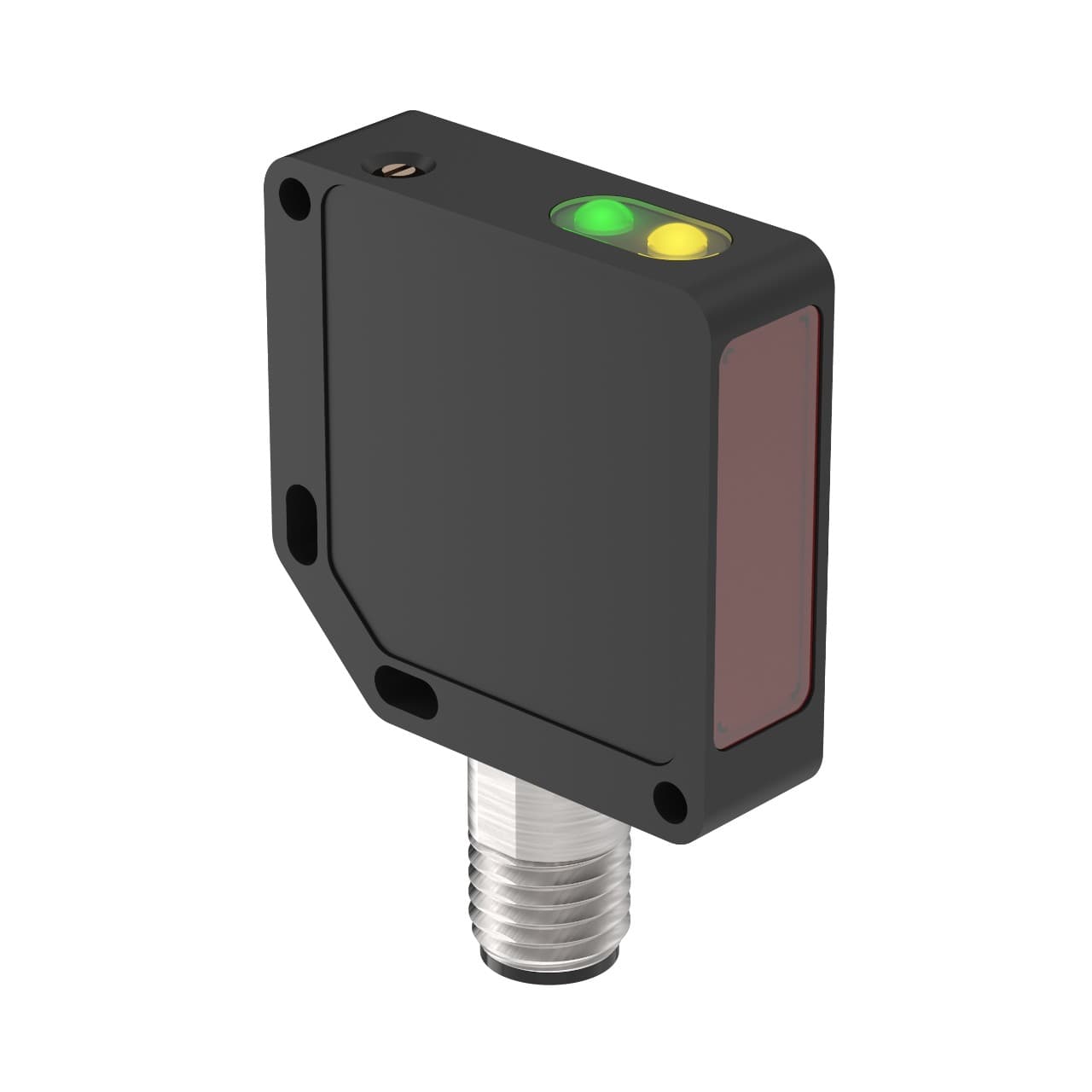

Banner Engineering QM42VN6LPQ is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +55 °C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. Part of the QM42 series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a die-cast Zinc alloy housing with an Acrylic lens, and it has a black housing color. The QM42VN6LPQ measures 42 mm in height, 13 mm in width, and 42 mm in depth. It has a sensing distance of up to 3 meters and utilizes visible red light with a wavelength of 660 nm. This sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.

QM42VN6LPQ

Banner Engineering QM42VN6LPQ is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +55 °C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. Part of the QM42 series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a die-cast Zinc alloy housing with an Acrylic lens, and it has a black housing color. The QM42VN6LPQ measures 42 mm in height, 13 mm in width, and 42 mm in depth. It has a sensing distance of up to 3 meters and utilizes visible red light with a wavelength of 660 nm. This sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.

QM42 R/D/LP QD.pdf

QM42 Series (Opposed, Retroreflective, Diffuse).pdf

QM42 R/D/LP QD.stp

QM42 Series -- Datasheet (Multilingual).pdf

Product details

QM42 R/D/LP QD.pdf

QM42 Series (Opposed, Retroreflective, Diffuse).pdf

QM42 R/D/LP QD.stp

QM42 Series -- Datasheet (Multilingual).pdf

IO LinkNo
Feature: Hazardous AreaNo
Feature: EncapsulatedNo
Feature: Timing (Hold/Delay)No
Lens MaterialAcrylic
Sensing Beam Wavelength660

Delay at Power-up (ms)100

Special Feature: Water DetectionNo

Max Op. Temp. (°C)70

Min Op. Temp. (°C)-20

ConnectionIntegral QD

Sensing BeamVisible Red LED

Sensing Mode (General)Retroreflective

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

Barrel Diameter (mm)N/A

AdjustmentsPotentiometer

Max Op. Relative Humidity [%]90% @ 50°C

DeviceNetNo

Feature: Chemical ResistantNo

Feature: AudibleNo

NEMA RatingNEMA 6

IP RatingIP67

Number of Pins4

Repeatability (µs)250

Output response time (ms)1

Special Feature: Remote TeachNo

Special Feature: Intrinsically SafeNo

OperationLight/Dark Operate

Quick Disconnect TypeM12 (Euro)

Power Supply/Supply Voltage10-30 V dc

Input/OutputDiscrete

Max Sensing Distance (mm)3000

OutputsNPN

Housing StyleRectangular

Primary Housing MaterialZinc Alloy Die-Cast

Sensing Mode (Detailed)Polarized

PowerDC

ShapeRectangular

Net Depth (mm)42 mm

Primary brandBanner Engineering

Designretro-reflective mode

Main functionSensor (Photo-electric)

FunctionsPolarized photo-electric sensor green LED (power ON) red LED (failure) potentiometer adjustment

Product series / family nameQ series

Light ColorVisible red

Connection typePre-equipped with 4-pin Euro-style M12 connector

Degree of protectionIP67 NEMA 6

Order code / Manufacturer SKU44904

Sub-range nameQM42

Sensing distance3m

Response time1ms / 0.001 s

Compliant with standard(s)cURus CE

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

ColorBlack housing

Digital outputs1 x digital output (NPN transistor)

Ambient air temperature for operation-20...+55 °C

Net Height (mm)42 mm

Wavelength660 nm

Operating modeLight-ON Dark-ON

MaterialDie-cast Zinc alloy housing Acrylic lns.

Net Width (mm)12.7 mm
