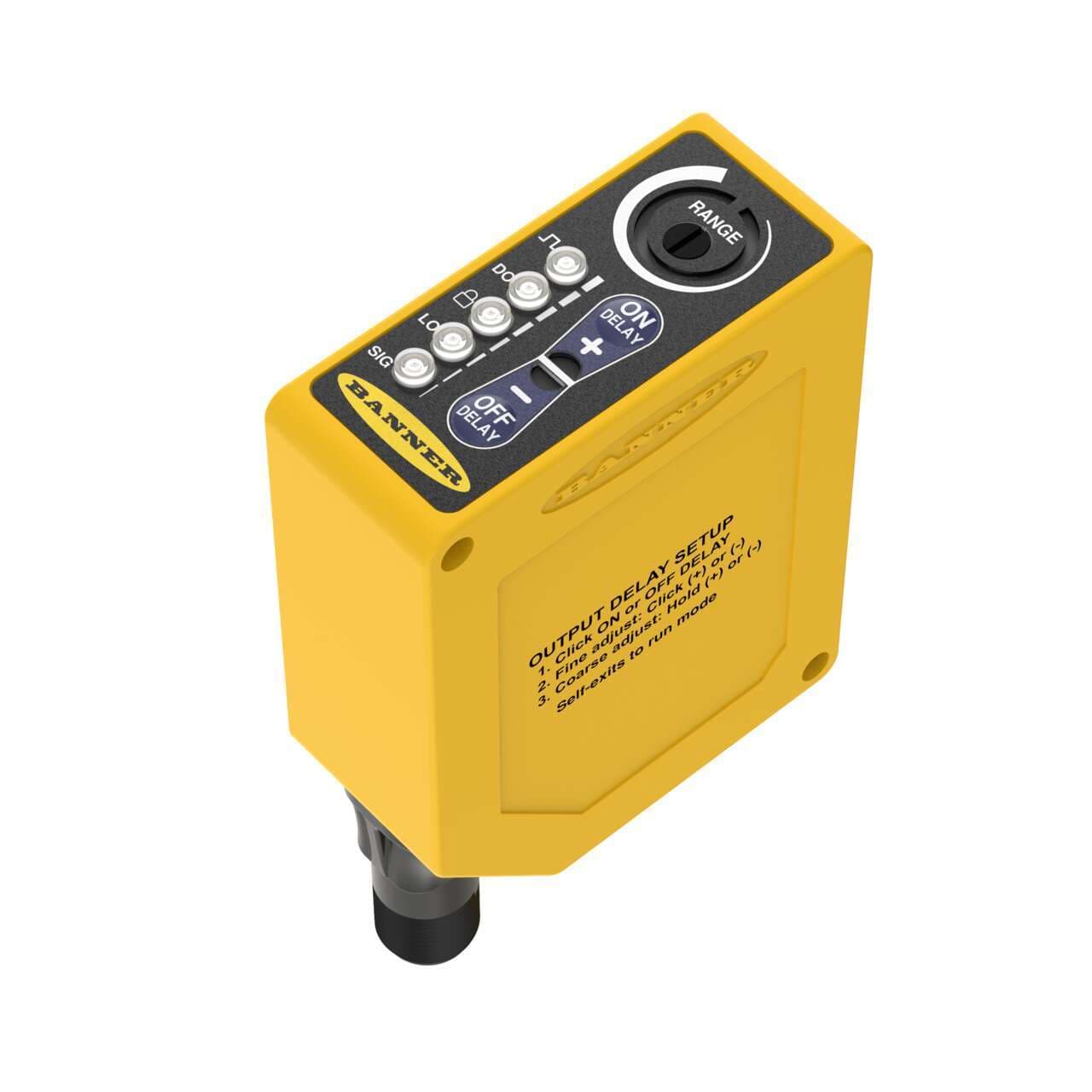

Q60VR3AF2000Q1 Banner Proximity Sensors

Name: Q60VR3AF2000Q1
Brand: Banner
Price: 260 USD
Availability: BackOrder

Part#:Q60VR3AF2000Q1

Alt. Part#:63005

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q60 Series: Adjustable-Field Infrared Univrs Volt; Range: 200-2000 mm; Input: 12-250 V dc or 24-250 V ac; Output: Electromechanical Relay (SPST); Micro-Style QD

Product Details

Weight
136.0776 g
Country Of Origin
US
IO Link
No
DeviceNet
No
Feature: Hazardous Area
No
Indicator
LEDs
NEMA Rating
NEMA 6
Barrel Diameter (mm)
N/A
Feature: Encapsulated
No
Feature: Audible
No
Opposed Mode Emitter/Receiver
N/A
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Timing (Hold/Delay)
Yes
Adjustments
Screw Adjustment
Delay at Power-up (ms)
150
Special Feature: Water Detection
No
IP Rating
IP67
Repeatability (µs)
500
Output response time (ms)
15

Special Feature: Intrinsically Safe

Special Feature: Remote Teach

Quick Disconnect Type

1/2 in. (Micro)

Operation

Light/Dark Operate

Max Op. Temp. (°C)

Connection

Integral QD

Min Op. Temp. (°C)

-20

Power Supply/Supply Voltage

12-250 V dc or 24-250 V ac

Outputs

SPST e/m Relay

Housing Style

Rectangular

Power

AC/DC Universal

Input/Output

E/M Relay

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Background Suppression (Adjustable)

Max Sensing Distance (mm)

2000

Sensing Mode (General)

Proximity

Sensing Beam

Infrared LED

Feature: Chemical Resistant

Lens Material

Acrylic

Connection type

Pre-equipped with 4-pin 1/2" Micro connector

Material

thermoplastic housing Acrylic lns.

Order code / Manufacturer SKU

63005

Sub-range name

Q60AF

Functions

Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment

Sensing distance

20cm...2m

Operating mode

Light-ON Dark-ON

Product series / family name

Q series

Design

background suppression system

Light Color

Infrared (IR)

Response time

15ms / 0.015 s

Ambient air temperature for operation

-20...+55 °C

Net Depth (mm)

60 mm

Primary brand

Banner Engineering

Supply voltage (DC)

12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)

Shape

Rectangular

Degree of protection

IP67 NEMA 6

Compliant with standard(s)

cURus CE

Main function

Sensor (Photo-electric)

Supply voltage (AC)

24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Digital outputs

1 x digital output (SPST contact type)

Net Height (mm)

75 mm

Net Width (mm)

25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60VR3AF2000Q1 on Powermatic Associates is $260.00. Order now.

About the product

Banner Engineering Q60VR3AF2000Q1 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. This sensor features a rectangular shape with dimensions of 75 mm in height, 25 mm in width, and 60 mm in depth. It is pre-equipped with a 4-pin 1/2" micro connector for connectivity and supports a supply voltage range of 24Vac-250Vac (200Vac / 220Vac / 240Vac nom.) for AC and 12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.) for DC. The Q60AF series sensor offers a sensing distance of 20cm to 2m and utilizes infrared (IR) light for detection. It provides a single digital output (SPST relay contact) and features an operating mode that allows for both Light-ON and Dark-ON conditions. The sensor's response time is 15ms / 0.015 s, and it boasts a degree of protection rated at IP67 NEMA 6, ensuring protection against dust and water ingress.
