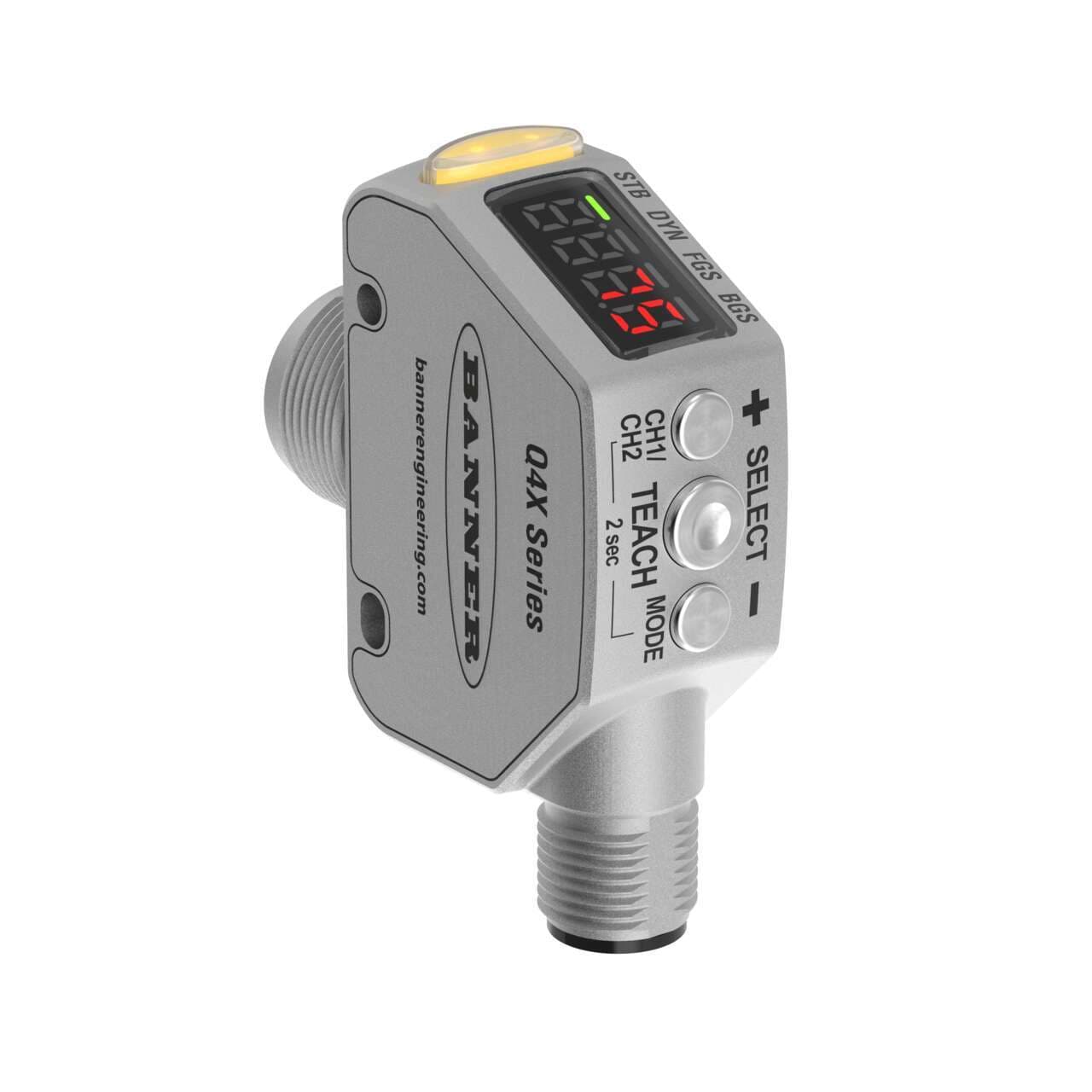

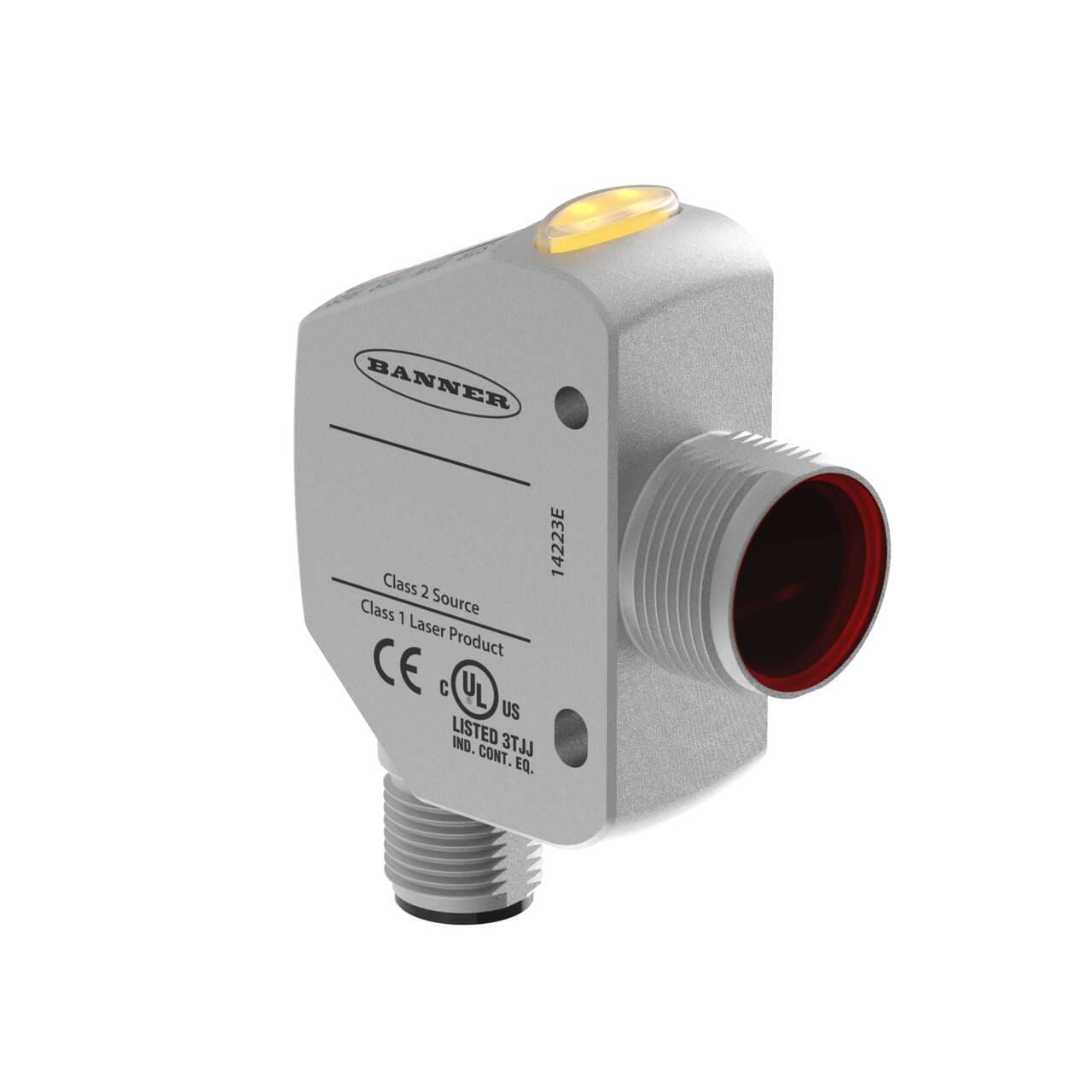

Q4XTULAF300-Q8 Banner Proximity Sensors

Product Details

• Weight
  68.0388 g
• Country Of Origin
  US
• Profibus
  No
• Wireless
  No
• RS-485
  No
• Feature: Timing (Hold/Delay)
  No
• SSI
  No
• RS-232
  No
• Feature: Ecolab Certified
  Yes
• Alarm Output (mA)
  100
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• PROFINET
  No
• Feature: Remote Teach
  Yes
• IO Link
  No
• Minimum Window Size (mm)
  2
• Laser Control
  Yes
• Max Op. Relative Humidity Non-Condensing (%)
  95 at 55°C
• Warm-up Time (minutes)
  10
• Spot Size (@ Reference Distance)
  2.0 mm x 0.8 mm @ 300 mm
• 1-wire Serial Interface
  No
RS-422
No
Common Ethernet Protocol
No
Feature: Chemical Resistant
Yes
Feature: Washdown Rated
Yes
Power/Current Consumption (exclusive of load)
< 675 mW
Max Ambient Light (Lux)
5000
Barrel Diameter (mm)
18
Analog Linearity (mm)
+/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm
Minimum Response Time (ms)
0.5
Window Material
Acrylic
IP Rating
IP67; IP68; IP69
Max Operating Temperature (°C)
50
Storage Temperature (°C)
-25 to 75
Min Operating Temperature (°C)
-10
Output Protection
Protected against continuous overload and short circuit
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Delay at Power-up (ms)
750
Power Supply
12-30 V dc
Sensing Beam Wavelength (nm)
655
Connection
Integral QD
Number of Pins
5
Adjustments
Push Button; Remote Teach
Minimum Sensing Distance (mm)
25
Analog Output Configuration
0-10 V dc
Analog Resolution/Discrete Repeatability
25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1
Max Sensing Distance (mm)
300
Quick Disconnect Type
M12 (Euro)
Indicator
Display; LED(s)
Laser Classification
Class 1
Input/Output
Analog
Power
DC
Housing Style
Rectangular w/M18 Mount
Device Type
Sensor
Primary Housing Material
Stainless Steel
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background/Foreground Suppression
Max Measurement Range
>100 mm - <=500 mm
PC Configurable
No
Sensing Beam
Visible Red Laser
Main function
Sensor (Photo-electric)
Light Color
Visible class 1 red Laser
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Design
background / foreground suppression system
Ambient air temperature for operation
-10...+50 °C
Sub-range name
Q4X
Functions
Class 1 Laser adjustable-field photo-electric sensor/transmitter TEACH mode
Thread size
M18
Analog outputs
1 x analog output (0-10Vdc)
Equivalent to
Q4XTULAF300Q8
Display
LED 4 digits display
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Material
Stainless steel housing Acrylic LED window
Chemical resistance
chemical-resistant
Product series / family name
Q series
Sensing distance
25...300mm
Wavelength
655 nm
Degree of protection
IP67 IP68 IP69K
Order code / Manufacturer SKU
94691
Shape
Rectangular
Mounting mode
Threaded mount
Protection functions
Overload Short-circuit
Compliant with standard(s)
CE
