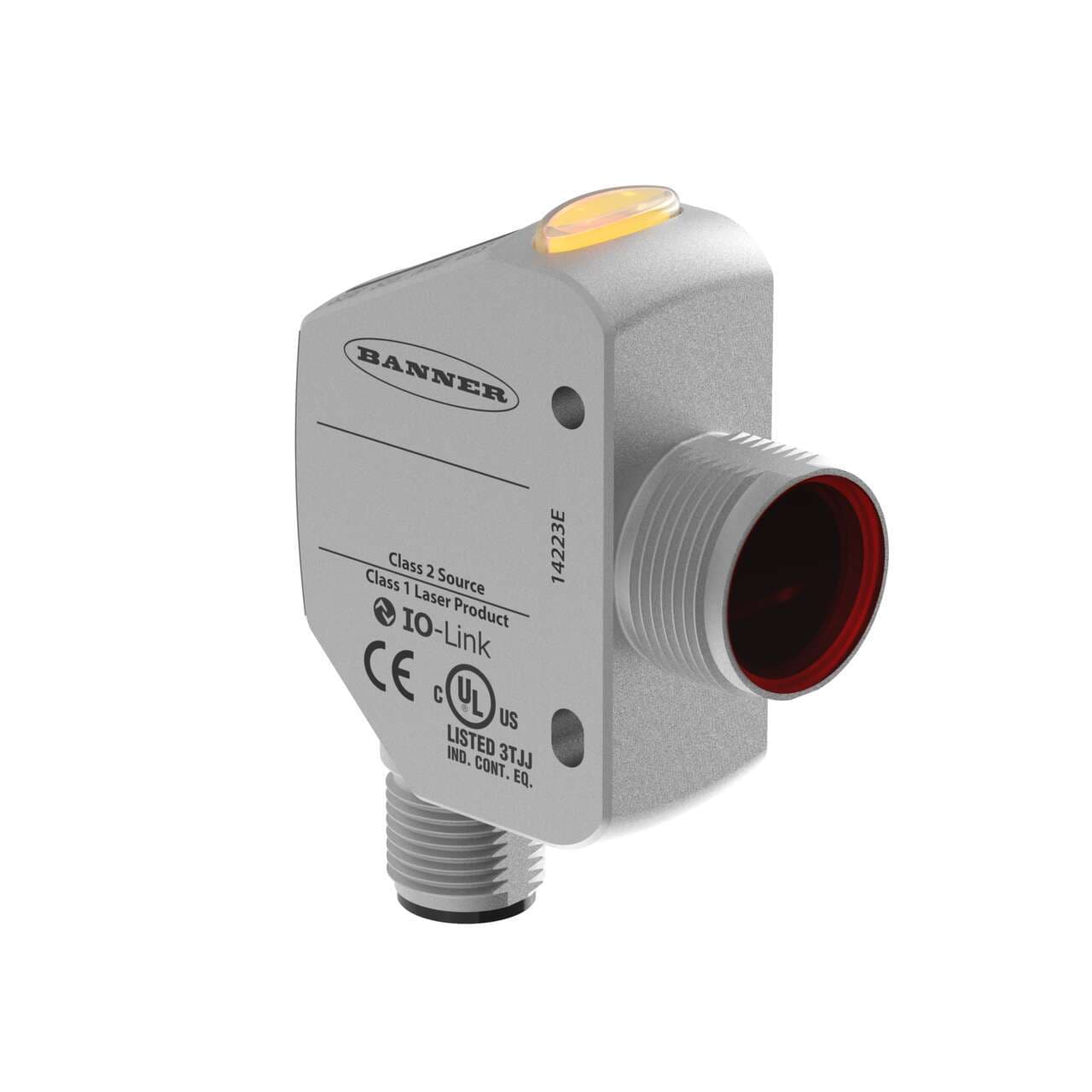

Q4XTKLAF600-Q8 Banner Transformers

Product Details

• Weight
  158.7572 g
• Country Of Origin
  US
• RS-422
  No
• RS-485
  No
• IO Link
  Yes
• RS-232
  No
• Common Ethernet Protocol
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Ecolab Certified
  Yes
• Max Ambient Light (Lux)
  5000
• 1-wire Serial Interface
  No
• Profibus
  No
• Wireless
  No
• PROFINET
  No
• Feature: Chemical Resistant
  Yes
• SSI
  No
• Feature: Timing (Hold/Delay)
  Yes
• Feature: Clear Object Detection
  Yes
• Alarm Output (mA)
  100
• Power/Current Consumption (exclusive of load)
  < 700 mW
Laser Control
Yes
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Washdown Rated
Yes
Feature: Remote Teach
Yes
Minimum Window Size (mm)
0.4
Max Off-state Leakage Current (µA)
PNP: <50 @ 30 V dc; Push/Pull: N/A
Barrel Diameter (mm)
18
Spot Size (@ Reference Distance)
1.9 mm x 1.0 mm @ 600 mm
Window Material
Acrylic
Warm-up Time (minutes)
10
Minimum Response Time (ms)
2
Output Protection
Protected against continuous overload and short circuit
Storage Temperature (°C)
-25 to 75
IP Rating
IP67; IP68; IP69
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Max Operating Temperature (°C)
50
Min Operating Temperature (°C)
-10
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Number of Pins
4
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm, +/- 0.85 mm/°C at 600 mm
Adjustments
Push Button; Remote Teach
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
<2 V
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Sensing Beam Wavelength (nm)
655
Power Supply
10-30 V dc
Delay at Power-up (ms)
1500
Analog Resolution/Discrete Repeatability
25 mm to 100 mm: +/-0.5; 100 mm to 600 mm: +/- 0.5% of range
Max Sensing Distance (mm)
600
Minimum Sensing Distance (mm)
25
Connection
Integral QD
Indicator
Display; LED(s)
Quick Disconnect Type
M12 (Euro)
Primary Housing Material
Stainless Steel
Input/Output
Discrete
Laser Classification
Class 1
Device Type
Sensor
Sensing Mode (General)
Proximity
Housing Style
Rectangular w/M18 Mount
Sensing Mode (Detailed)
Background/Foreground Suppression
PFM Output
Yes
PC Configurable
No
Max Measurement Range
>500 mm - <=1000 mm
Power
DC
Sensing Beam
Visible Red Laser
Communication protocol
IO-Link
Order code / Manufacturer SKU
801918
Product series / family name
Q series
Functions
Class 1 Laser adjustable-field photo-electric sensor TEACH mode
Design
background / foreground suppression system dual discrete output and IO Link
Primary brand
Banner Engineering
Display
LED 4 digits display
Wavelength
655 nm
Sub-range name
Q4X
Light Color
Visible class 1 red Laser
Sensing distance
25...600mm
Digital outputs
1 x digital output (PNP/NPN transistor) (with IO-Link Communication) 1 x digital output (PNP transistor)
Compliant with standard(s)
CE
Main function
Sensor (Photo-electric)
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Rectangular
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Material
Stainless steel housing Acrylic LED window
Equivalent to
Q4XTKLAF600Q8
Thread size
M18
Degree of protection
IP67 IP68 IP69K
Protection functions
Overload Short-circuit
Mounting mode
Threaded mount
Ambient air temperature for operation
-10...+50 °C
Chemical resistance
chemical-resistant

Related documents Q4XTKLAF600-Q8 Specs
