Q4XTBLAF100-Q8 Banner Proximity Sensors

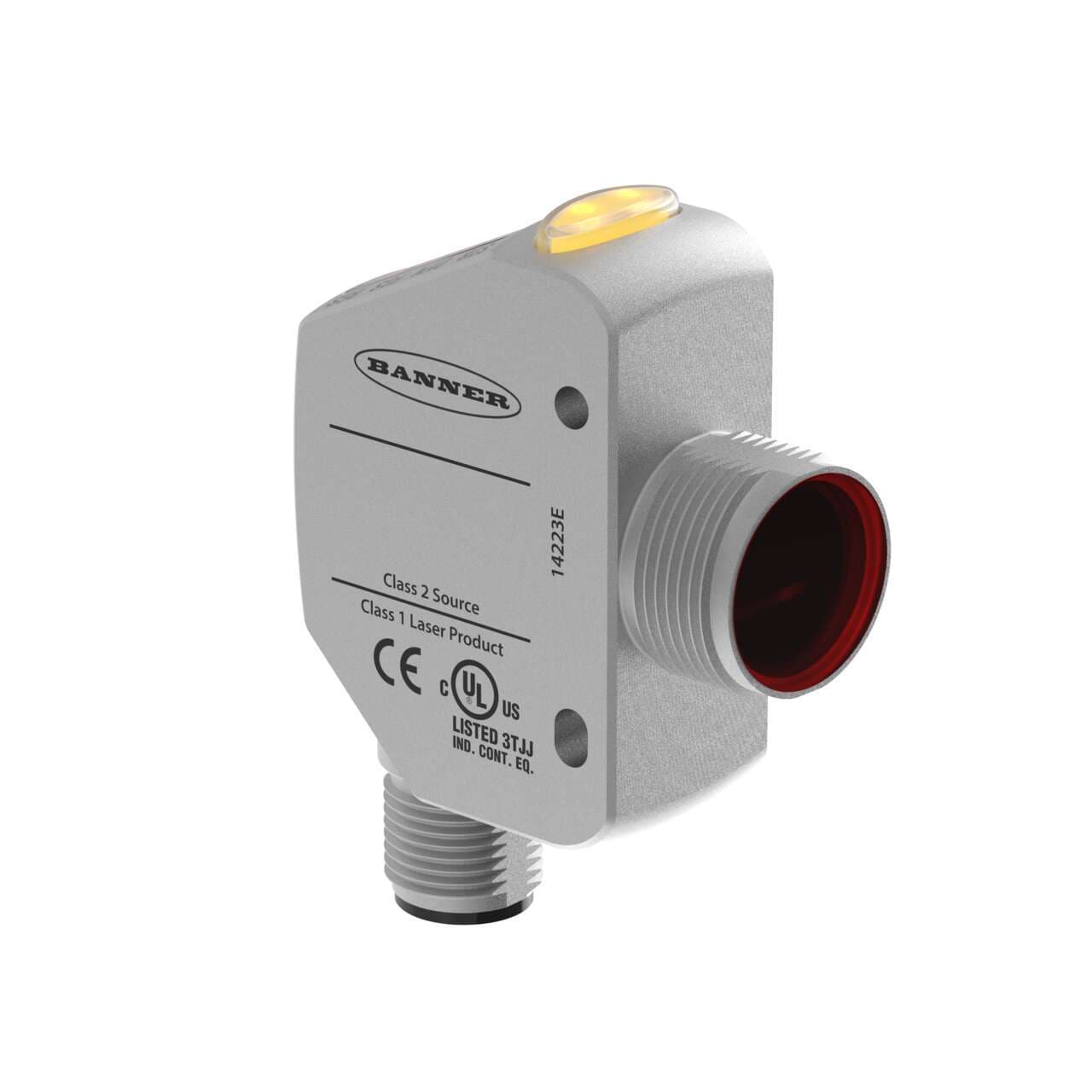

Banner Q4XTBLAF100-Q8 Q4X Series: Laser Adjustable Field; Range: 100 mm; Input: 10-30 V dc; Outputs: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Banner

Part#:Q4XTBLAF100-Q8

Manufacturer:Banner

Alt. Part#:91290

Product Lifecycle:Active

Get a quick Quote!

Q4X Series: Laser Adjustable Field; Range: 100 mm; Input: 10-30 V dc; Outputs: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q4XTBLAF100-Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    163.29312 g
  • Country Of Origin
    US
  • SSI
    No
  • Common Ethernet Protocol
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Feature: Clear Object Detection
    Yes
  • Minimum Response Time (ms)
    1.5
  • Laser Control
    Yes
  • Discrete Output Hysteresis (mm)
    Automatically adjusted
  • Max Op. Relative Humidity Non-Condensing (%)
    95 at 55°C
  • Vibration
    MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • RS-485
    No
  • RS-422
    No
  • IO Link
    No
  • RS-232
    No
  • PROFINET
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Remote Teach
    Yes
  • Max Off-state Leakage Current (µA)
    5 @ 30 V dc
  • Alarm Output (mA)
    100
  • Power/Current Consumption (exclusive of load)
    < 675 mW
  • Max Ambient Light (Lux)
    5000
  • Barrel Diameter (mm)
    18
  • Minimum Window Size (mm)
    0.2
  • Spot Size (@ Reference Distance)
    1.8 mm x 0.7 mm @ 100 mm
  • Warm-up Time (minutes)
    10
  • Window Material
    Acrylic
  • Min Operating Temperature (°C)
    -10
  • Max Operating Temperature (°C)
    50
  • Storage Temperature (°C)
    -25 to 75
  • IP Rating
    IP67; IP68; IP69
  • Output Protection
    Protected against continuous overload and short circuit
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Max Discrete (Switched) Output (mA)
    100
  • Output Saturation Voltage PNP Outputs
    <1.5 V @ 100 mA
  • Output Saturation Voltage NPN Outputs
    <1.0 V @ 100 mA
  • Mechanical Shock
    MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Temperature Effect (mm/°C)
    +/- 0.05 mm/°C
  • Number of Pins
    5
  • Sensing Beam Wavelength (nm)
    655
  • Delay at Power-up (ms)
    750
  • Adjustments
    Push Button; Remote Teach
  • Connection
    Integral QD
  • Minimum Sensing Distance (mm)
    25
  • Analog Resolution/Discrete Repeatability
    +/- 0.2
  • Input/Output
    Discrete
  • Power Supply
    10-30 V dc
  • Max Sensing Distance (mm)
    100
  • Quick Disconnect Type
    M12 (Euro)
  • Laser Classification
    Class 1
  • Indicator
    Display; LED(s)
  • Power
    DC
  • Sensing Mode (Detailed)
    Background/Foreground Suppression
  • Primary Housing Material
    Stainless Steel
  • Device Type
    Sensor
  • Max Measurement Range
    <= 100 mm
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular w/M18 Mount
  • PC Configurable
    No
  • Sensing Beam
    Visible Red Laser
  • Product series / family name
    Q series
  • Design
    background / foreground suppression system
  • Light Color
    Visible class 1 red Laser
  • Sub-range name
    Q4X
  • Shape
    Rectangular
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Ambient air temperature for operation
    -10...+50 °C
  • Chemical resistance
    chemical-resistant
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Mounting mode
    Threaded mount
  • Material
    Stainless steel housing Acrylic LED window
  • Equivalent to
    Q4XTBLAF100Q8
  • Display
    LED 4 digits display
  • Wavelength
    655 nm
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Protection functions
    Overload Short-circuit
  • Order code / Manufacturer SKU
    91290
  • Main function
    Sensor (Photo-electric)
  • Functions
    Class 1 Laser adjustable-field photo-electric sensor TEACH mode
  • Sensing distance
    25...100mm
  • Degree of protection
    IP67 IP68 IP69K
  • Compliant with standard(s)
    CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q4XTBLAF100-Q8 Description

Banner Engineering Q4XTBLAF100-Q8 is a Class 1 laser adjustable-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is equipped with a background/foreground suppression system that can be configured via TEACH mode, ensuring accurate sensing by ignoring irrelevant background objects. It connects through a pre-equipped 5-pin Euro-style M12 connector, fitting seamlessly into various industrial setups. Part of the Q4X series, it boasts a high degree of protection rated at IP67, IP68, and IP69K, making it suitable for harsh environments and offering resistance to chemicals. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from durable stainless steel housing and an acrylic LED window, ensuring longevity and resilience. The sensing distance ranges from 25 to 100mm, utilizing a visible class 1 red laser with a wavelength of 655 nm for detection. It also includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against overload and short-circuit, enhancing its operational reliability.
