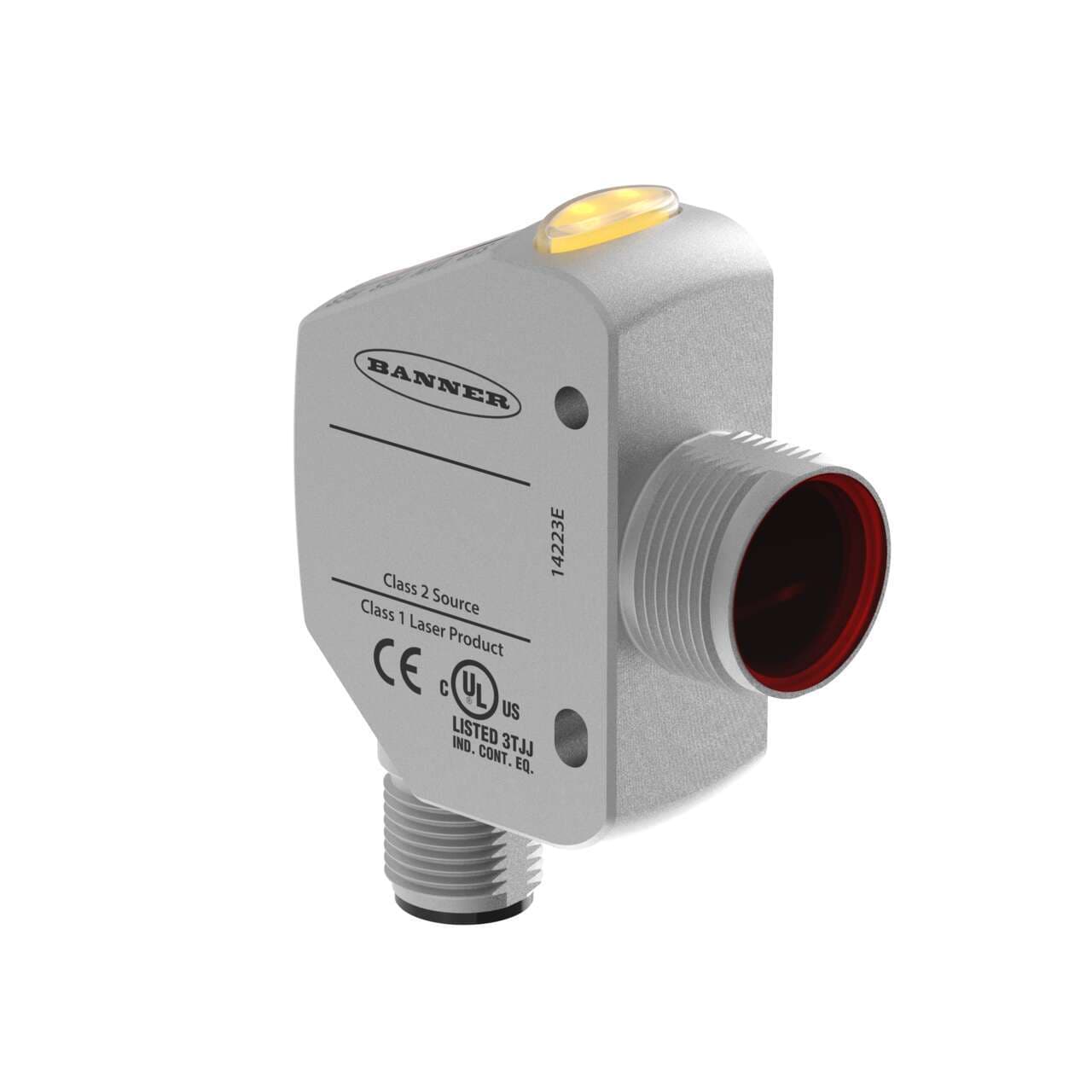

Q4XTILAF600-Q8 Banner Proximity Sensors

Product Details

• Weight
  142.88148 g
• Country Of Origin
  US
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• RS-232
  No
• RS-422
  No
• RS-485
  No
• Feature: Chemical Resistant
  Yes
• IO Link
  No
• Feature: Washdown Rated
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Minimum Window Size (mm)
  2
• Power/Current Consumption (exclusive of load)
  < 700mW
• Max Ambient Light (Lux)
  5000
• Laser Control
  Yes
• Barrel Diameter (mm)
  18
Analog Linearity (mm)
+/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm, 28 mm at 600 mm
Spot Size (@ Reference Distance)
1.9 mm x 1.0 mm @ 600 mm
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Max Operating Temperature (°C)
50
Warm-up Time (minutes)
10
Window Material
Acrylic
Minimum Response Time (ms)
0.5
Min Operating Temperature (°C)
-10
Storage Temperature (°C)
-25 to 75
IP Rating
IP67; IP68; IP69
Output Protection
Protected against continuous overload and short circuit
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Sensing Beam Wavelength (nm)
655
Number of Pins
5
Delay at Power-up (ms)
750
Adjustments
Push Button; Remote Teach
Temperature Effect (mm/°C)
1 mm/°C
Analog Output Configuration
4-20 mA
Analog Resolution/Discrete Repeatability
25 mm to 100 mm: +/- 0.5 mm, 100 mm to 600 mm: +/- 0.5%
Power Supply
12-30 V dc
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
25
Connection
Integral QD
Max Sensing Distance (mm)
600
Input/Output
Analog
Indicator
Display; LED(s)
Laser Classification
Class 1
Sensing Mode (Detailed)
Background/Foreground Suppression
PC Configurable
No
Primary Housing Material
Stainless Steel
Housing Style
Rectangular w/M18 Mount
Sensing Beam
Visible Red Laser
Sensing Mode (General)
Proximity
Max Measurement Range
>500 mm - <=1000 mm
Power
DC
