Q4XTKLAF100-Q8 Banner Proximity Sensors

Q4XTKLAF100-Q8 on Powermatic Associates
Banner

Part#:Q4XTKLAF100-Q8

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:97071

Product Lifecycle:Active

Get a quick Quote!

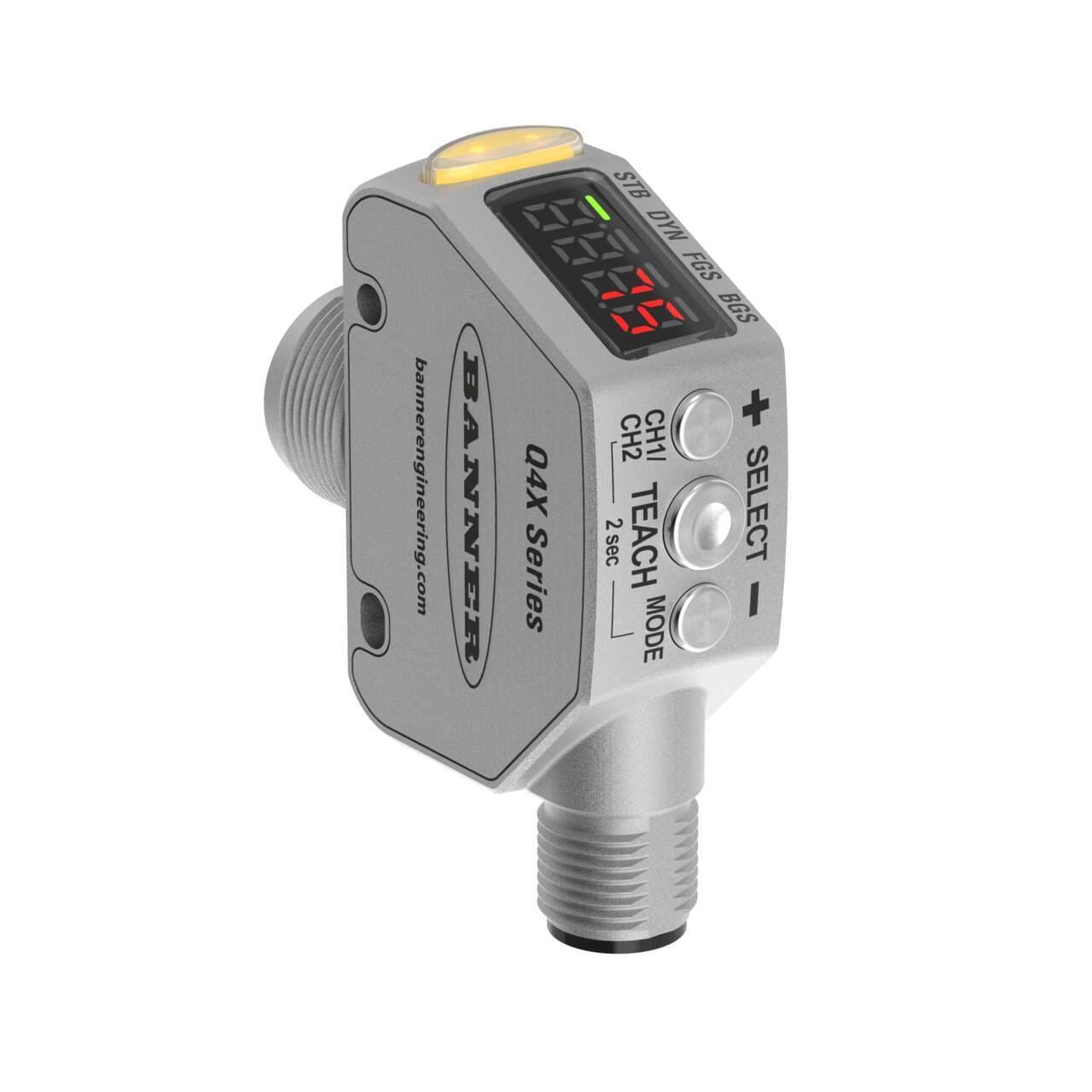

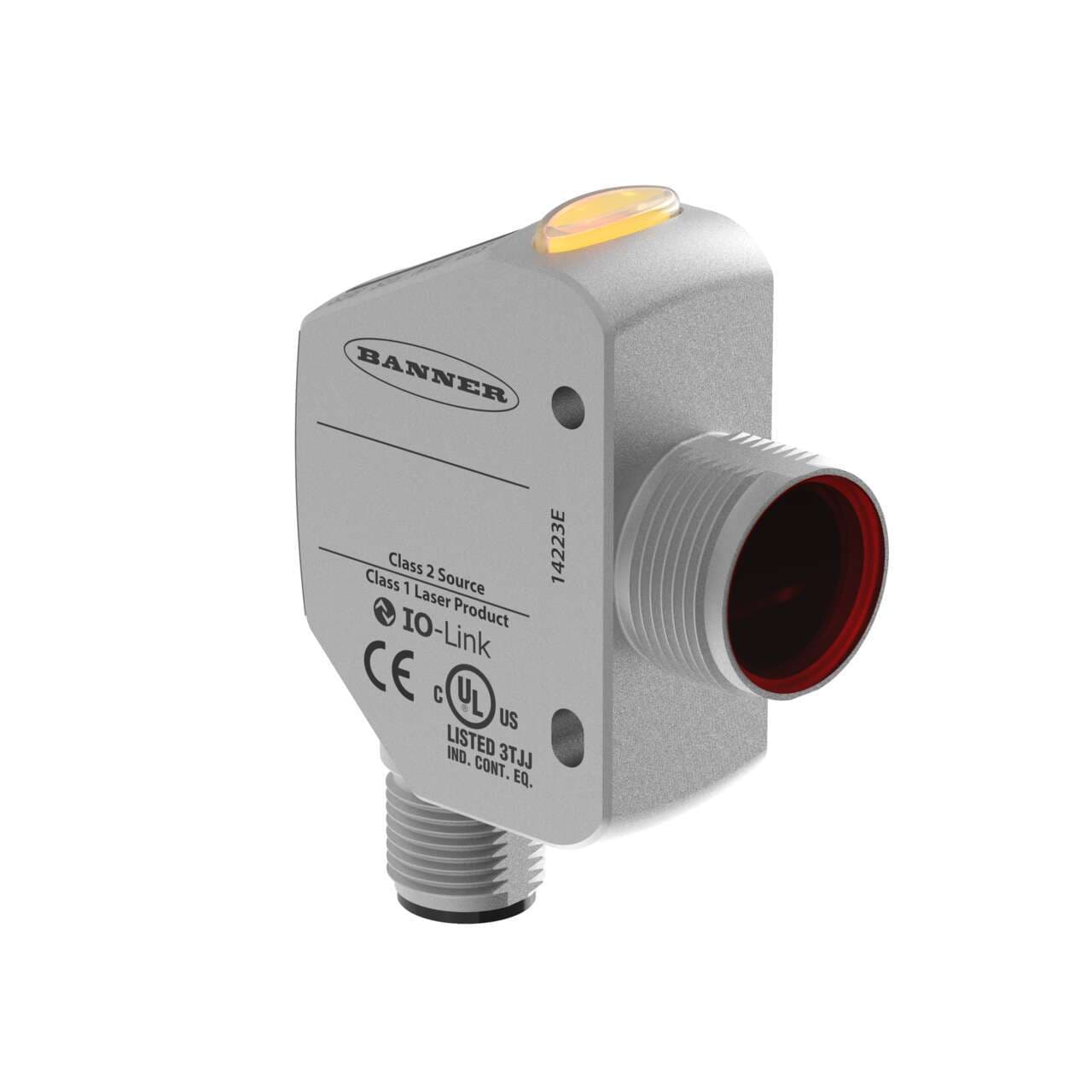

Q4X Series: Laser Adjustable Field; Range: 100 mm; Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link Communication; 1 PNP; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q4XTKLAF100-Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • RS-232
    No
  • Profibus
    No
  • SSI
    No
  • Wireless
    No
  • RS-485
    No
  • IO Link
    Yes
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    Yes
  • RS-422
    No
  • PROFINET
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Clear Object Detection
    Yes
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Ecolab Certified
    Yes
  • Laser Control
    Yes
  • Discrete Output Hysteresis (mm)
    Automatically adjusted
  • Feature: Remote Teach
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    < 700 mW
  • Max Off-state Leakage Current (µA)
    PNP: <50 @ 30 V dc; Push/Pull: N/A
  • Max Ambient Light (Lux)
    5000
  • Alarm Output (mA)
    100
  • Minimum Response Time (ms)
    1.5
  • Barrel Diameter (mm)
    18
  • Minimum Window Size (mm)
    0.2
  • Warm-up Time (minutes)
    10
  • Max Op. Relative Humidity Non-Condensing (%)
    95 at 55°C
  • Min Operating Temperature (°C)
    -10
  • Window Material
    Acrylic
  • Spot Size (@ Reference Distance)
    1.8 mm x 0.7 mm @ 100 mm
  • Storage Temperature (°C)
    -25 to 75
  • Max Operating Temperature (°C)
    50
  • IP Rating
    IP67; IP68; IP69
  • Max Discrete (Switched) Output (mA)
    100
  • Output Protection
    Protected against continuous overload and short circuit
  • Output Saturation Voltage PNP Outputs
    <2 V
  • Mechanical Shock
    MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Discrete (Switched) Outputs
    1 NPN/PNP Configurable; 1 PNP
  • Vibration
    MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Number of Pins
    4
  • Temperature Effect (mm/°C)
    +/- 0.05 mm/°C
  • Sensing Beam Wavelength (nm)
    655
  • Delay at Power-up (ms)
    750
  • Power Supply
    10-30 V dc
  • Max Sensing Distance (mm)
    100
  • Adjustments
    Push Button; Remote Teach
  • Analog Resolution/Discrete Repeatability
    +/- 0.2
  • Minimum Sensing Distance (mm)
    25
  • Connection
    Integral QD
  • Indicator
    Display; LED(s)
  • Quick Disconnect Type
    M12 (Euro)
  • Input/Output
    Discrete
  • Primary Housing Material
    Stainless Steel
  • Laser Classification
    Class 1
  • Device Type
    Sensor
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Mode (Detailed)
    Background/Foreground Suppression
  • Sensing Mode (General)
    Proximity
  • Power
    DC
  • Sensing Beam
    Visible Red Laser
  • Max Measurement Range
    <= 100 mm
  • PC Configurable
    No
  • PFM Output
    Yes
  • Product series / family name
    Q series
  • Primary brand
    Banner Engineering
  • Sub-range name
    Q4X
  • Functions
    Class 1 Laser adjustable-field photo-electric sensor TEACH mode
  • Mounting mode
    Threaded mount
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Compliant with standard(s)
    CE
  • Main function
    Sensor (Photo-electric)
  • Display
    LED 4 digits display
  • Wavelength
    655 nm
  • Ambient air temperature for operation
    -10...+50 °C
  • Chemical resistance
    chemical-resistant
  • Sensing distance
    25...100mm
  • Light Color
    Visible class 1 red Laser
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (PNP/NPN transistor) (with IO-Link Communication) 1 x digital output (PNP transistor)
  • Protection functions
    Overload Short-circuit
  • Design
    background / foreground suppression system dual discrete output and IO Link
  • Communication protocol
    IO-Link
  • Degree of protection
    IP67 IP68 IP69K
  • Equivalent to
    Q4XTKLAF100Q8
  • Order code / Manufacturer SKU
    97071
  • Material
    Stainless steel housing Acrylic LED window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


Q4XTKLAF100-Q8 Description

Banner Engineering Q4XTKLAF100-Q8 is a Class 1 laser adjustable-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a background/foreground suppression system, dual discrete output, and IO Link TEACH mode for enhanced functionality. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy connection. Part of the Q4X series, it boasts a high degree of protection rated at IP67, IP68, and IP69K, making it suitable for harsh environments. The sensor is chemical-resistant and operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from stainless steel housing and an acrylic LED window for durability. Communication is facilitated via IO-Link protocol. The sensing distance ranges from 25 to 100mm, utilizing visible class 1 red laser light with a wavelength of 655 nm. It features 1 x digital output (PNP/NPN transistor / IO-Link) and 1 x digital output (PNP transistor), with protection functions against overload and short-circuit.
