Q45VR2DQ

Banner

Product Lifecycle: Active

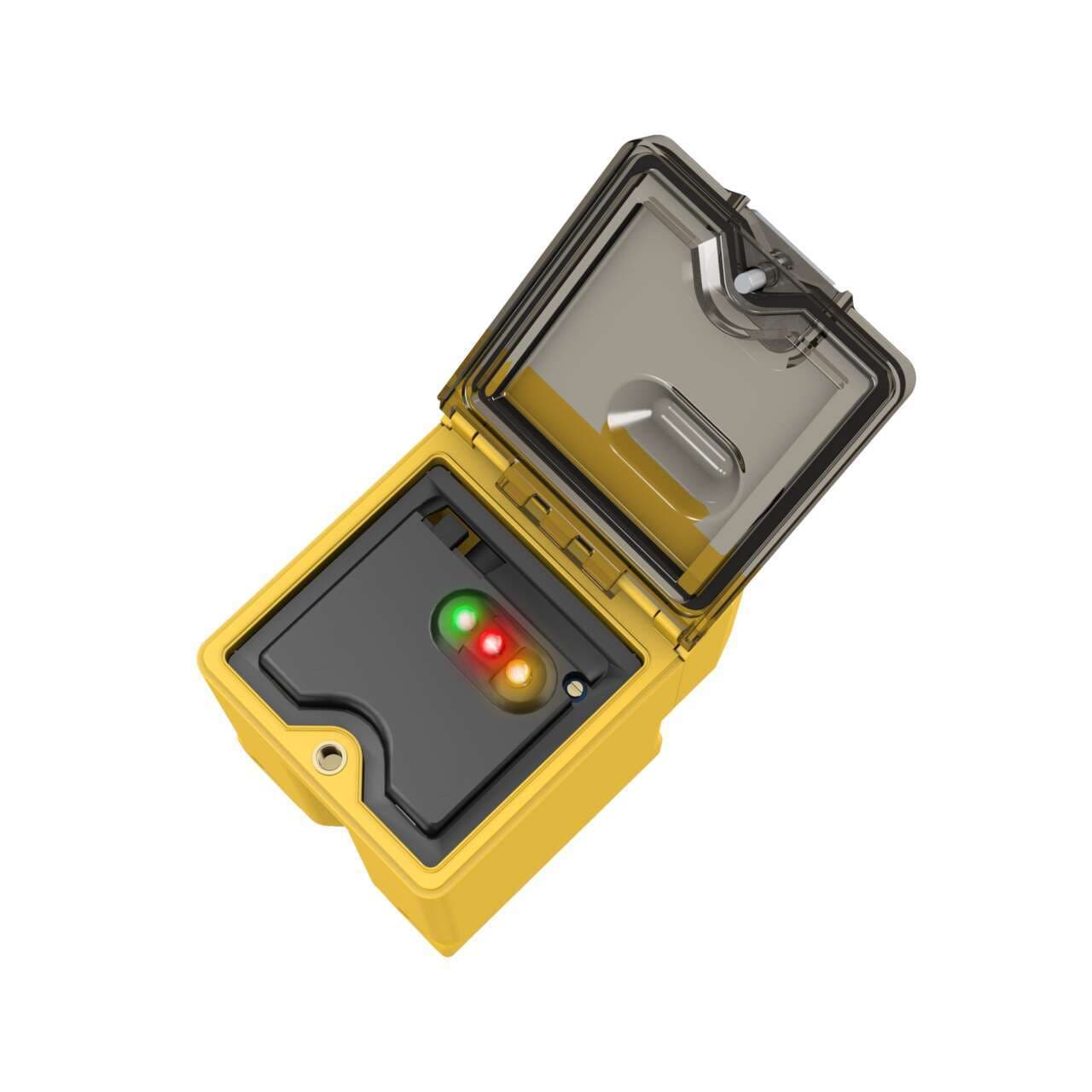

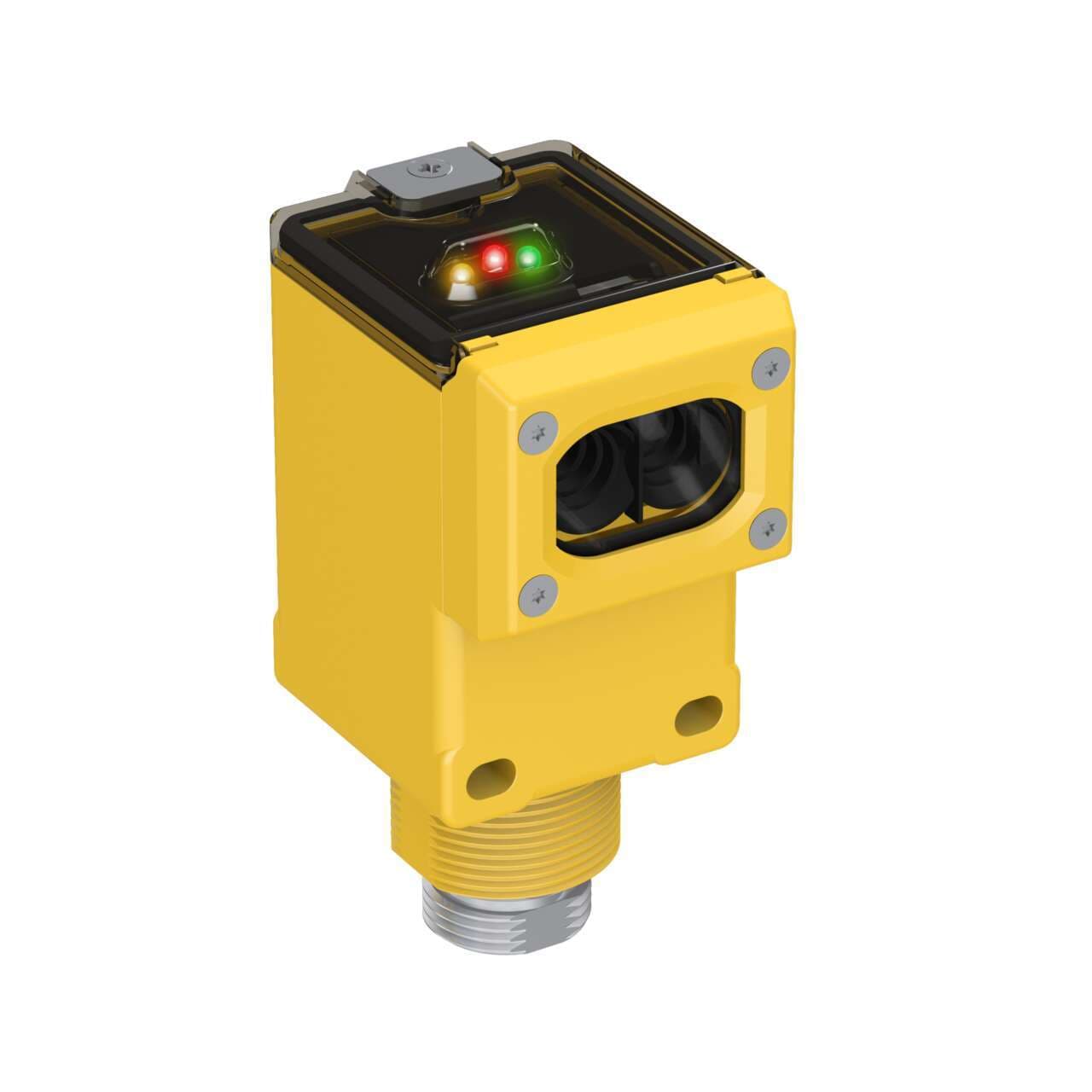

Banner Engineering Q45VR2DQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is equipped with a 5-pin 7/8" mini connector for straightforward connectivity and requires a supply voltage of 90Vac-250Vac, supporting nominal values of 200Vac, 220Vac, and 240Vac. Part of the Q45VR2 series, it boasts an IP67 NEMA 6P degree of protection, ensuring durability in challenging environments. The rectangular-shaped sensor has a thermoplastic housing and an acrylic lens, with a sensing distance of up to 450mm. It utilizes infrared light with a wavelength of 880 nm and offers both Light-ON and Dark-ON operating modes. The Q45VR2DQ provides a single digital output (SPDT relay contact) and has a response time of 15ms (0.015 seconds).

Q45VR2DQ

Banner Engineering Q45VR2DQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is equipped with a 5-pin 7/8" mini connector for straightforward connectivity and requires a supply voltage of 90Vac-250Vac, supporting nominal values of 200Vac, 220Vac, and 240Vac. Part of the Q45VR2 series, it boasts an IP67 NEMA 6P degree of protection, ensuring durability in challenging environments. The rectangular-shaped sensor has a thermoplastic housing and an acrylic lens, with a sensing distance of up to 450mm. It utilizes infrared light with a wavelength of 880 nm and offers both Light-ON and Dark-ON operating modes. The Q45VR2DQ provides a single digital output (SPDT relay contact) and has a response time of 15ms (0.015 seconds).

Q45 D MINI QD.pdf

Q45 Series, ac models (Electromechanical Relay Output).pdf

Q45 D MINI QD.stp

Product details

Q45 D MINI QD.pdf

Q45 Series, ac models (Electromechanical Relay Output).pdf

Q45 D MINI QD.stp

DeviceNetNo
IO LinkNo
Feature: Hazardous AreaNo
Feature: EncapsulatedNo
Lens MaterialAcrylic
Max Op. Relative Humidity [%]90% @ 50°C

NEMA RatingNEMA 6P

Special Feature: Remote TeachNo

Delay at Power-up (ms)100

Output response time (ms)15

Min Op. Temp. (°C)-40

OperationLight/Dark Operate

Sensing Mode (Detailed)Diffuse

Input/OutputE/M Relay

Feature: AudibleNo

Feature: Chemical ResistantNo

Feature: Timing (Hold/Delay)Yes

Barrel Diameter (mm)30

AdjustmentsPotentiometer

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

IP RatingIP67

Number of Pins5

Special Feature: Intrinsically SafeNo

Repeatability (µs)500

Special Feature: Water DetectionNo

Max Op. Temp. (°C)70

Quick Disconnect Type7/8 in. (Mini)

ConnectionIntegral QD

Power Supply/Supply Voltage90-250 V ac

Primary Housing MaterialThermoplastic

Sensing Mode (General)Proximity

OutputsSPDT e/m Relay

Max Sensing Distance (mm)450

Housing StyleRectangular

Sensing BeamInfrared LED

PowerAC

Sub-range nameQ45VR2

Connection typePre-equipped with 5-pin 7/8" Mini connector

Sensing distance450mm

Product series / family nameQ series

Designdiffuse mode

Mounting modeThreaded mount

Degree of protectionIP67 NEMA 6P

Supply voltage (AC)90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Thread sizeM30

FunctionsPhoto-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment

Response time15ms / 0.015 s

Compliant with standard(s)cURus CCC cCSAus CE

Light ColorInfrared (IR)

ShapeRectangular

Digital outputs1 x digital output (SPDT contact type)

Ambient air temperature for operation-40...+70 °C

Main functionSensor (Photo-electric)

Order code / Manufacturer SKU37000

Wavelength880 nm

Operating modeLight-ON Dark-ON

Materialthermoplastic housing Acrylic lns.

Primary brandBanner Engineering
