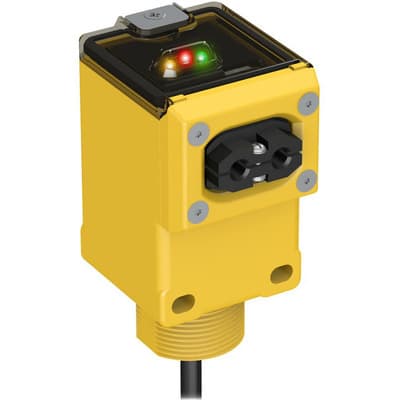

Q45VR2CV4Q Banner Proximity Sensors

Q45VR2CV4Q on Powermatic Associates
Banner

Part#:Q45VR2CV4Q

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:37008

Product Lifecycle:Active

Get a quick Quote!

Q45 Series: Convergent; Focal Point: 100 mm; Input: 90-250 V ac; Output: SPDT Electromechanical Relay; 5-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45VR2CV4Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    269.0707744 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Hazardous Area
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Barrel Diameter (mm)
    30
  • Adjustments
    Potentiometer
  • IP Rating
    IP67
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    5
  • Repeatability (µs)
    500
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    680
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    15
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Connection
    Integral QD
  • Power Supply/Supply Voltage
    90-250 V ac
  • Outputs
    SPDT e/m Relay
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Convergent
  • Max Sensing Distance (mm)
    100
  • Input/Output
    E/M Relay
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular
  • Power
    AC
  • Sensing Beam
    Visible Red LED
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Visible red
  • Thread size
    M30
  • Sub-range name
    Q45VR2
  • Product series / family name
    Q series
  • Sensing distance
    100mm
  • Primary brand
    Banner Engineering
  • Supply voltage (AC)
    90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Connection type
    Pre-equipped with 5-pin 7/8" Mini connector
  • Functions
    Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
  • Mounting mode
    Threaded mount
  • Response time
    15ms / 0.015 s
  • Compliant with standard(s)
    cURus CCC cCSAus CE
  • Design
    convergent mode
  • Wavelength
    680 nm
  • Material
    thermoplastic housing Acrylic lns.
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6P
  • Ambient air temperature for operation
    -40...+70 °C
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (SPDT contact type)
  • Order code / Manufacturer SKU
    37008

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45VR2CV4Q Description

Banner Engineering Q45VR2CV4Q is a photo-electric sensor designed for precision detection tasks. This sensor features a convergent mode with potentiometer adjustment and is mounted using an M30 threaded mount. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The Q45VR2CV4Q is pre-equipped with a 5-pin 7/8" mini connector for connectivity and requires a supply voltage of 90Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It belongs to the Q45VR2 series and offers a degree of protection rated at IP67 NEMA 6P, making it suitable for challenging environments. The sensor has a rectangular shape and provides a sensing distance of 100mm, utilizing visible red light with a wavelength of 680 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (SPDT relay contact) with a response time of 15ms / 0.015 s.

Related documents Q45VR2CV4Q Specs

Q45VR2CV4Q 36339.pdf
