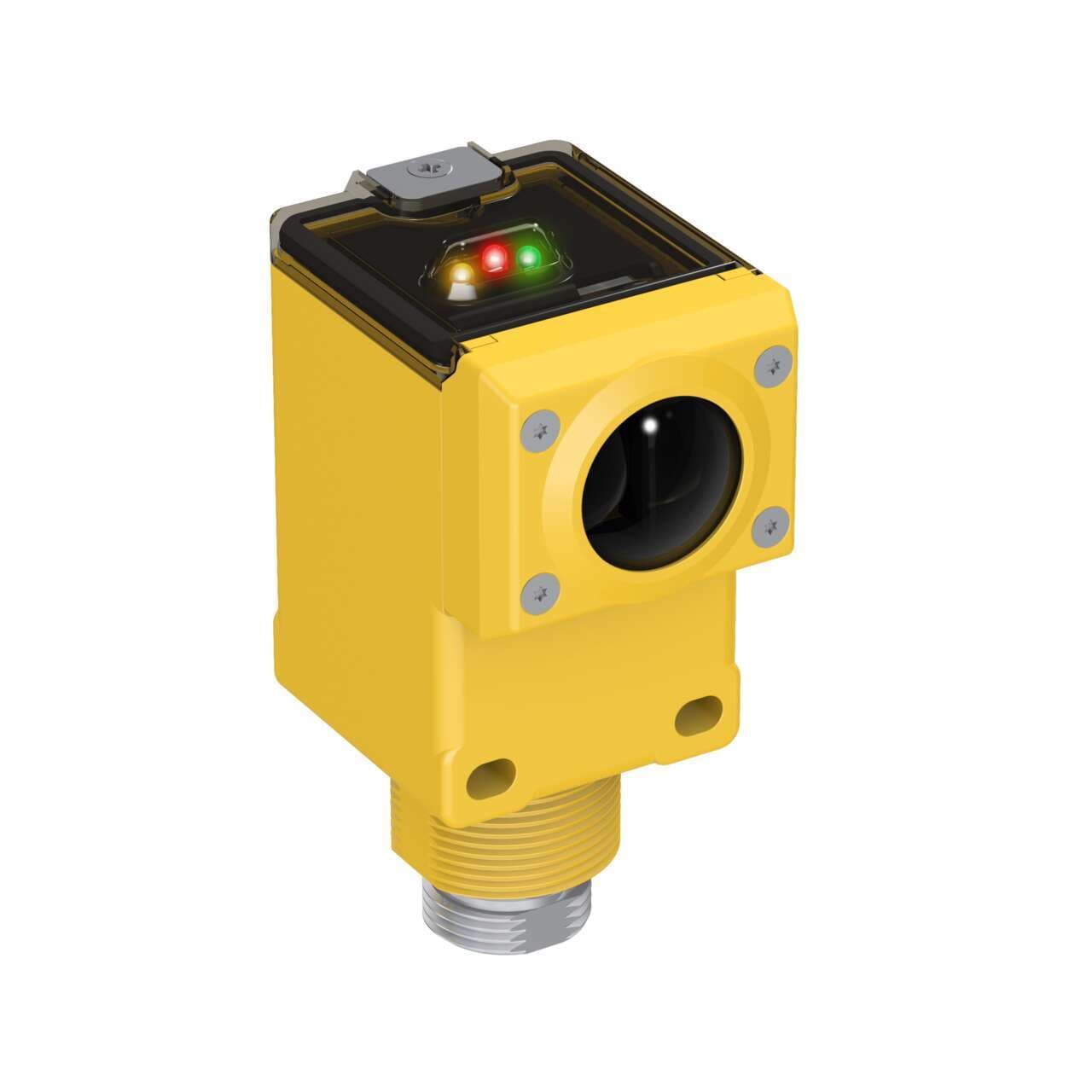

Q45BW13CV4Q Banner Proximity Sensors
Part#:Q45BW13CV4Q
Alt. Part#:54318
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Convergent; Focal Point: 100 mm; Input: 12-250 V dc / 24-250 V ac; Output: SPST Solid-State Relay; 4-pin Mini Integral QD
Product Details
- Weight 272.1552 g
- Country Of Origin US
- Supply voltage (AC) 24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Wavelength 680 nm
- Operating mode Light-ON Dark-ON
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Light Color Visible red
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Degree of protection IP67 NEMA 6P
- Product series / family name Q series
- Design convergent mode
- Thread size M30
- Response time 2ms / 0.002 s
- Sub-range name Q45BW13
- Sensing distance 100mm
- Connection type Pre-equipped with 4-pin 7/8" Mini connector
- Main function Sensor (Photo-electric)

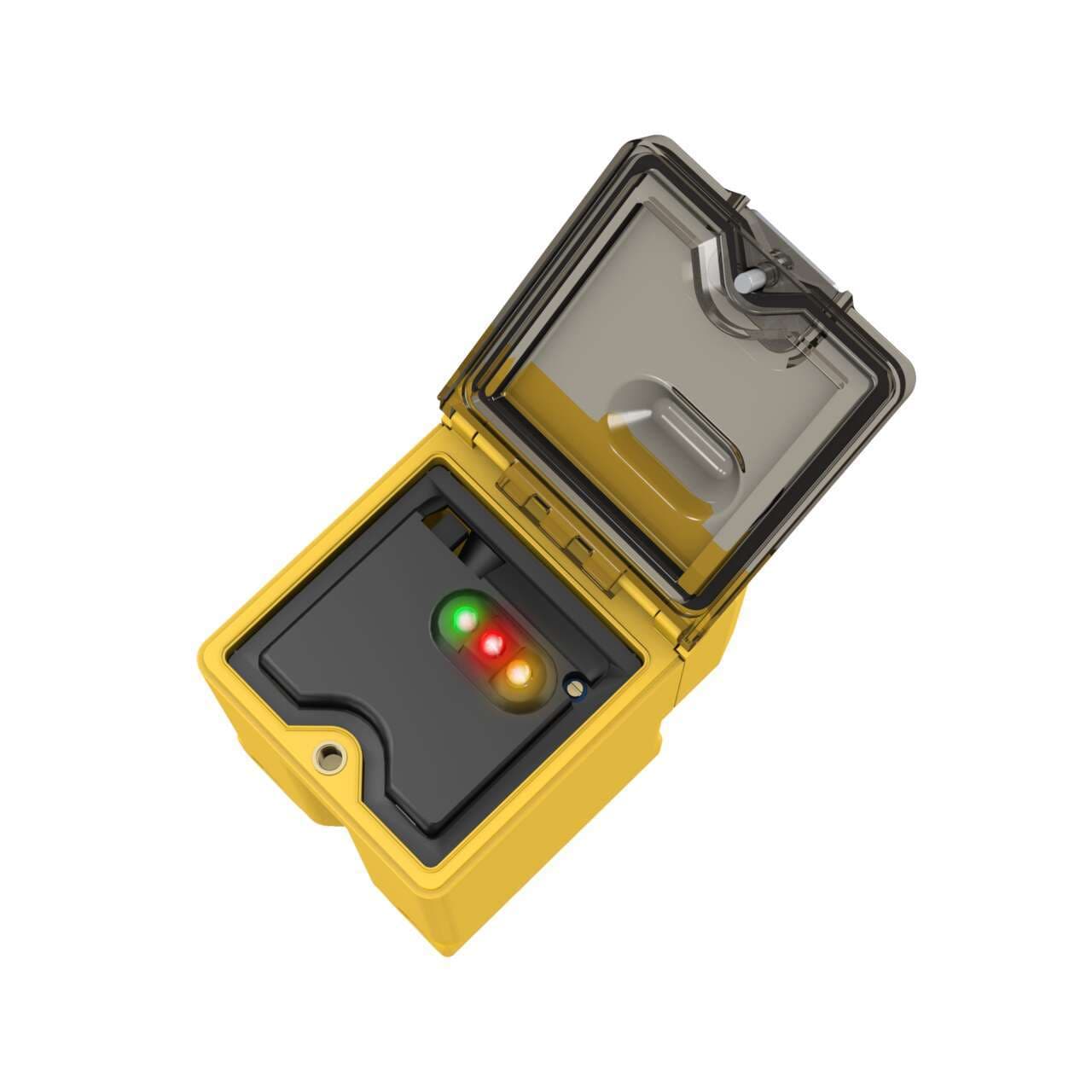

- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Shape Rectangular
- Compliant with standard(s) cURus CCC cCSAus CE
- Order code / Manufacturer SKU 54318
- Ambient air temperature for operation -25...+55 °C
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Sensing Beam Visible Red LED
- Min Op. Temp. (°C) -25
- Repeatability (µs) 500
- Feature: Encapsulated No
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Mode (General) Proximity
- Quick Disconnect Type 7/8 in. (Mini)
- Delay at Power-up (ms) 100
- DeviceNet No
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Feature: Chemical Resistant No
- Input/Output Solid-State AC Switch
- Output response time (ms) 2
- Number of Pins 4
- Adjustments Potentiometer
- Sensing Mode (Detailed) Convergent
- Max Op. Temp. (°C) 55
- IP Rating IP67
- Feature: Audible No
- Power AC/DC Universal
- Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Max Sensing Distance (mm) 100
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Timing (Hold/Delay) Yes
- Outputs Solid-State AC Switch
- Connection Integral QD
- Sensing Beam Wavelength 680
- Indicator LEDs
- Feature: Hazardous Area No
- IO Link No
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BW13CV4Q on Powermatic Associates is $198.00. Order now.
About the product
Banner Engineering Q45BW13CV4Q is a photo-electric sensor designed for precision detection tasks. It features a convergent mode with potentiometer adjustment and is housed in a thermoplastic casing with an acrylic lens. This sensor is equipped with a 4-pin 7/8" mini connector for connectivity and supports a wide range of supply voltages, including 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc nominal), making it versatile for various applications. It operates within an ambient air temperature range of -25 to +55°C and offers a sensing distance of 100mm. The Q45BW13CV4Q emits visible red light at a wavelength of 680 nm and can operate in both Light-ON and Dark-ON modes. It provides a single digital output (Solid-state AC output; SPST contact type) and boasts a rapid response time of 2ms / 0.002 s. This sensor is designed for M30 threaded mount installation and is protected to IP67 NEMA 6P standards, ensuring durability in challenging environments.
