Q45BW13FP
Banner
Product Lifecycle: Active
Banner Engineering Q45BW13FP is a photo-electric plastic fiber optic sensor designed for versatility and durability. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +55°C. The sensor is equipped with a potentiometer adjustment for precise control and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy integration. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it adaptable to various power supplies. The Q45BW13FP belongs to the Q45BW13 series and is housed in a thermoplastic casing with plastic fiber optics, ensuring IP67 NEMA 6P degree of protection against ingress. It emits visible red light with a wavelength of 660 nm for detection purposes and offers a single digital output (Solid-state AC output; SPST contact type) with a rapid response time of 2ms / 0.002 s, facilitating quick and efficient operation.

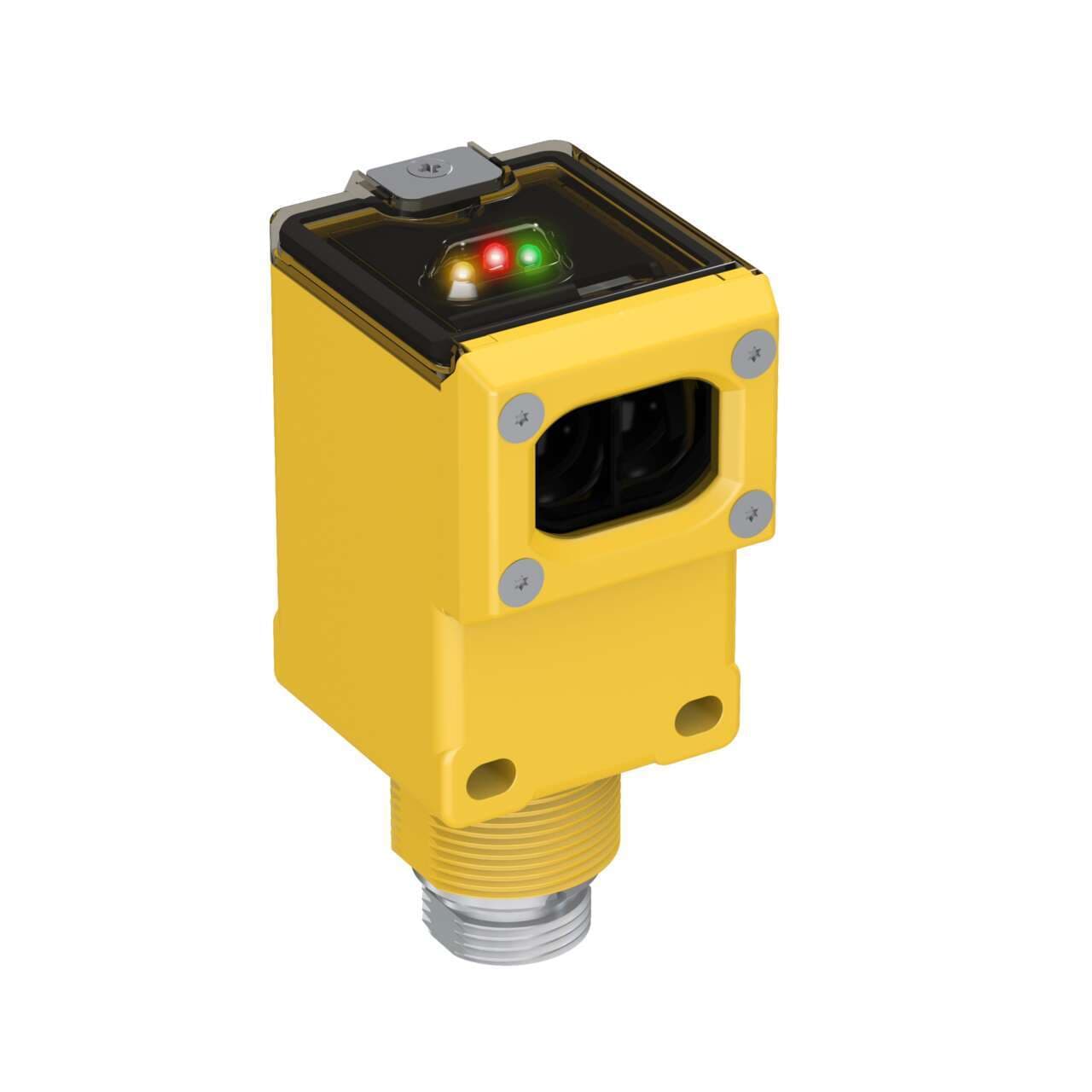

![Q45BW13FP](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F59ec6ef8-699a-40e6-b31b-b27908e8d6e2.jpeg&w=3840&q=75)
Banner Engineering Q45BW13FP is a photo-electric plastic fiber optic sensor designed for versatility and durability. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +55°C. The sensor is equipped with a potentiometer adjustment for precise control and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy integration. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it adaptable to various power supplies. The Q45BW13FP belongs to the Q45BW13 series and is housed in a thermoplastic casing with plastic fiber optics, ensuring IP67 NEMA 6P degree of protection against ingress. It emits visible red light with a wavelength of 660 nm for detection purposes and offers a single digital output (Solid-state AC output; SPST contact type) with a rapid response time of 2ms / 0.002 s, facilitating quick and efficient operation.
Product details
- IO LinkNo
- Feature: Hazardous AreaNo
- Housing MaterialThermoplastic
- Feature: AudibleNo
- Feature: Timing (Hold/Delay)Yes
- Special Feature: Bussable PowerNo
- Minimum response time (ms)2
- Indicator Display TypeIndicator LEDs
- Delay at Power-up (ms)100
- AdjustmentsPotentiometer
- Power Supply/Supply Voltage12-250 V dc or 24-250 V ac
- Intrinsically SafeNo
- Special Feature: Remote TeachNo
- Max Op. Relative Humidity (%)90% @ 50°C
- Min Op. Temperature (°C)-25
- Max Op. Temperature (°C)55
- NEMA RatingNEMA 6P
- Number of Pins4
- IP RatingIP67
- Output Type (Specific)Single Discrete
- Repeatability (µs)500
- Fiber TypePlastic and Glass
- Quick Disconnect TypeNo QD
- Cable Length (m)2
- Primary Housing MaterialThermoplastic
- ConnectionCable
- Input/OutputDiscrete
- Housing StyleRectangular
- OutputSolid-State AC Switch
- PowerAC/DC Universal
- Color LED - AmplifiersRed
- Light ColorVisible red
- Response time2ms / 0.002 s
- Materialthermoplastic housing Plastic fiber
- Sub-range nameQ45BW13
- Thread sizeM30
- Product series / family nameQ series
- Supply voltage (AC)24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Wavelength660 nm
- Digital outputs1 x digital output (Solid-state AC output; SPST contact type)
- Mounting modeThreaded mount
- Main functionSensor (Photo-electric)
- FunctionsPhoto-electric fiber optic sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Degree of protectionIP67 NEMA 6P
- Order code / Manufacturer SKU53989
- Primary brandBanner Engineering
- Supply voltage (DC)12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- ShapeRectangular
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation-25...+55 °C
- Compliant with standard(s)cURus cCSAus CE
