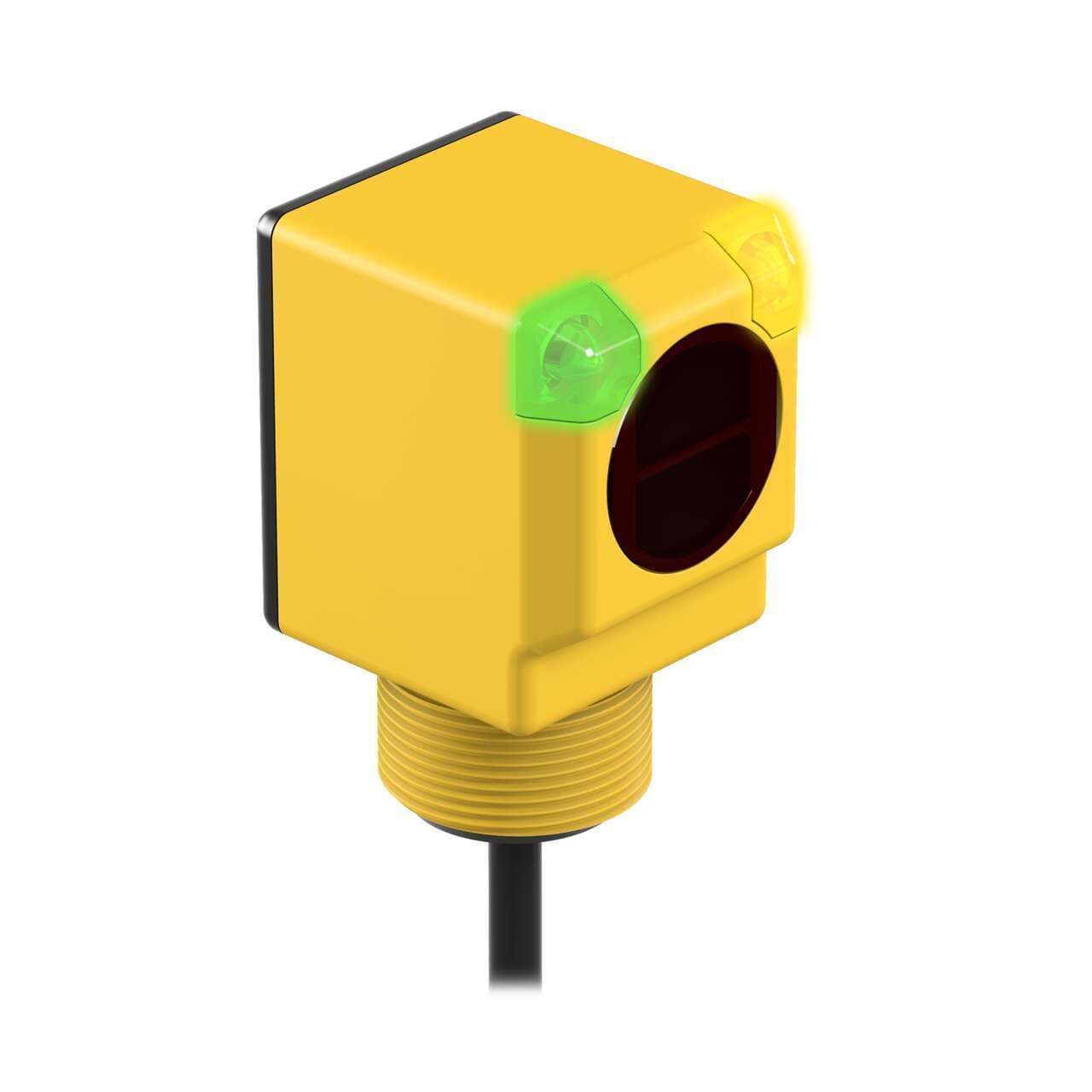

Q40SP6LP Banner Proximity Sensors
Part#:Q40SP6LP
Alt. Part#:32361
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM Q40 Series: Polarized Retro; Range: 6 m; Input: 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 240.857352 g
- Country Of Origin US
- Max Op. Relative Humidity [%] 90% @ 50°C
- Special Feature: Remote Teach No
- Feature: Encapsulated Yes
- IO Link No
- Feature: Hazardous Area No
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Feature: Health/ Marginal Signal Output Yes
- Feature: Chemical Resistant No
- Feature: Audible No
- Adjustments N/A
- Barrel Diameter (mm) 30
- Lens Material Polycarbonate
- Opposed Mode Emitter/Receiver N/A
- NEMA Rating NEMA 6P
- Indicator LEDs
- IP Rating IP67
- Number of Pins 4
- Delay at Power-up (ms) 100
- Repeatability (µs) 750
- Special Feature: Water Detection No
- Output response time (ms) 3
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 70
- Quick Disconnect Type No QD
- Operation Light/Dark Operate
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Min Op. Temp. (°C) -40
- Connection Cable
- Max Sensing Distance (mm) 6000
- Input/Output Discrete
- Power DC
- Housing Style Rectangular
- Primary Housing Material Thermoplastic
- Sensing Mode (Detailed) Polarized
- Sensing Beam Visible Red LED
- Cable Length (m) 2
- Sensing Mode (General) Retroreflective
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Product series / family name EZ-BEAM series
- Thread size M30
- Response time 3ms / 0.003 s
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Degree of protection IP67 NEMA 6P
- Primary brand Banner Engineering
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing
- Functions Polarized photo-electric sensor green LED (power ON) amber LED (output state)
- Order code / Manufacturer SKU 32361
- Sensing distance 6m
- Sub-range name Q40 DC series
- Wavelength 680 nm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -40...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Visible red
- Compliant with standard(s) cULus cCSAus CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q40SP6LP on Powermatic Associates is $131.00. Order now.
About the product
Banner Engineering Q40SP6LP is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M30 threaded mount for secure installation and a pre-wired 6.5ft / 2m cable with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing. It offers a sensing distance of up to 6m with a visible red light of 680 nm wavelength. The Q40SP6LP operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It is equipped with one digital output (PNP transistor; complementary NO/NC) and has a response time of 3ms / 0.003 s. The sensor's design ensures a degree of protection rated at IP67 NEMA 6P, making it suitable for various industrial applications.
