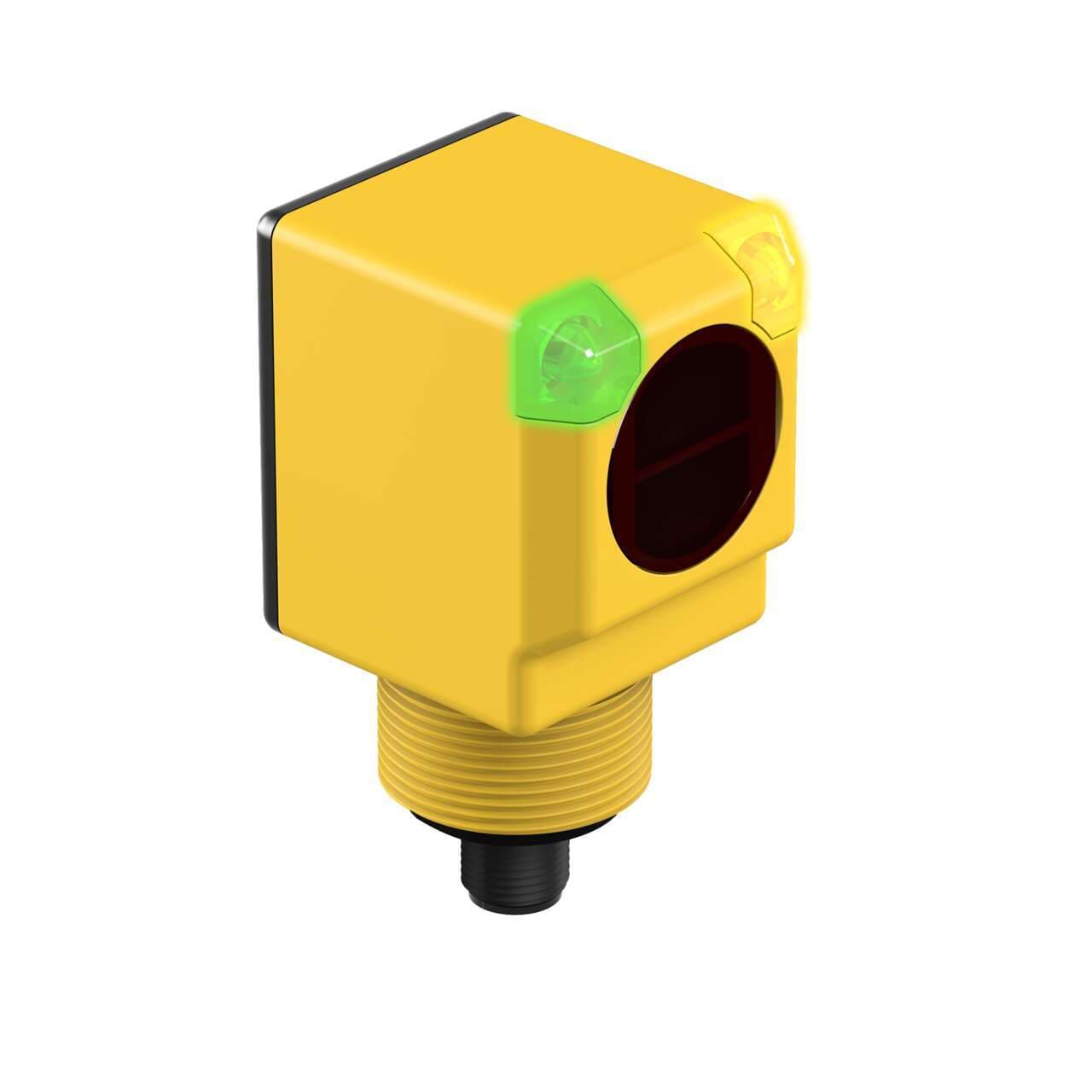

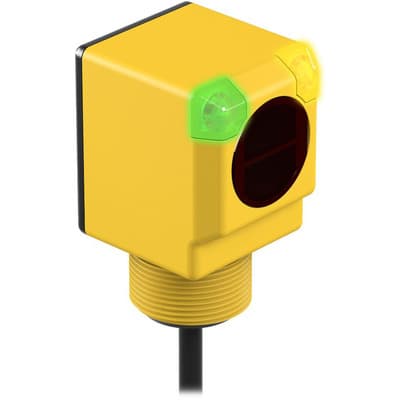

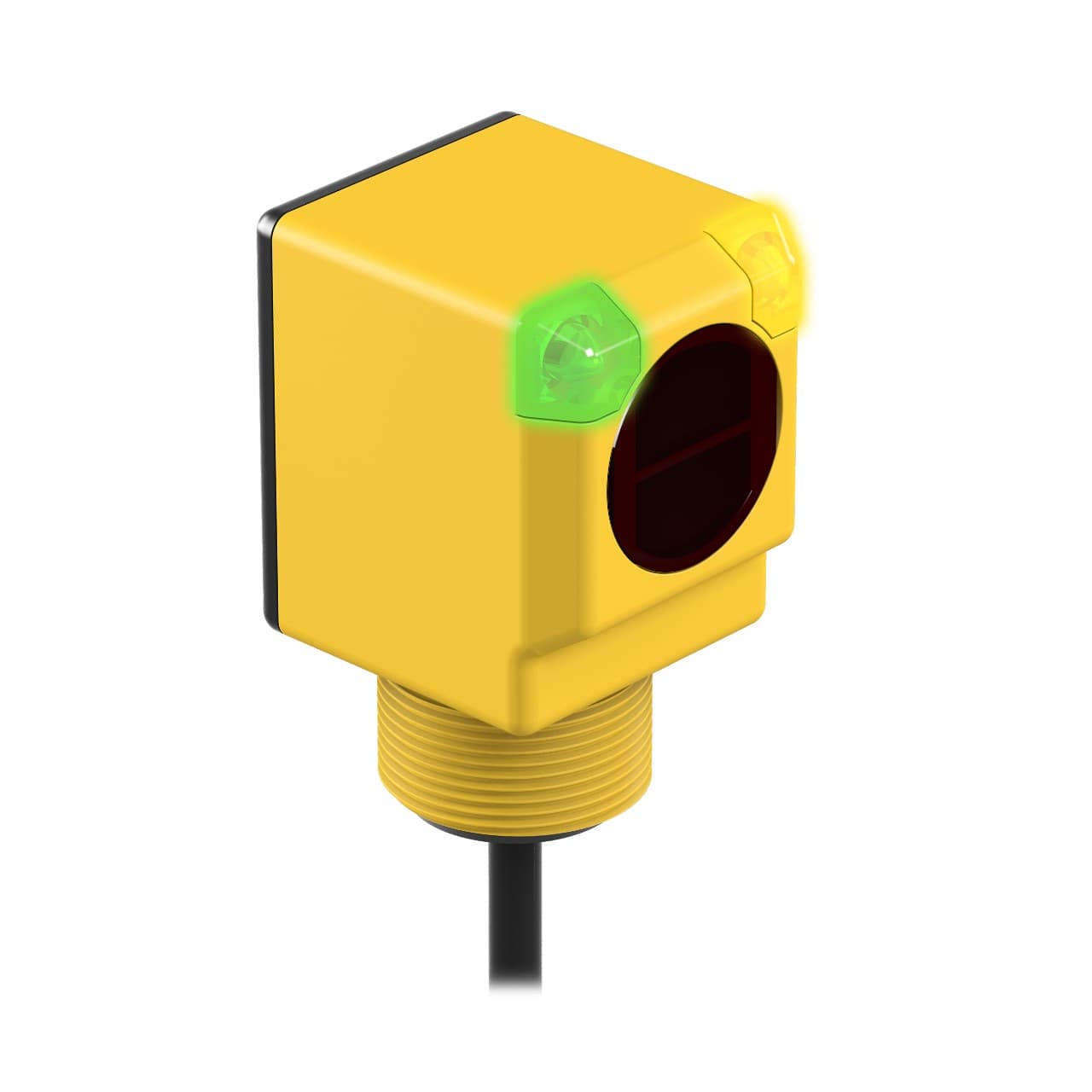

Q40S2P6FF200Q Banner Proximity Sensors

Name: Q40S2P6FF200Q
Brand: Banner
Price: 174 USD
Availability: BackOrder

Banner Q40S2P6FF200Q EZ-BEAM Q40 Series: Fixed Field; Range: 200 mm; Input: 10-30 V dc; Output: PNP - Light Operate; 4-pin M12 Integral QD

Part#:Q40S2P6FF200Q

Manufacturer:Banner

Alt. Part#:45171

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM Q40 Series: Fixed Field; Range: 200 mm; Input: 10-30 V dc; Output: PNP - Light Operate; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q40S2P6FF200Q Banner price in the box on the right side or send a quick quote.

Product Details

Weight
172.36496 g
Country Of Origin
US
Feature: Chemical Resistant
No
Opposed Mode Emitter/Receiver
N/A
IO Link
No
Feature: Health/ Marginal Signal Output
Yes
DeviceNet
No
Feature: Hazardous Area
No
Feature: Audible
No
Feature: Ecolab Certified
Yes
Feature: Timing (Hold/Delay)
No
Feature: Washdown Rated
Yes
Feature: Encapsulated
Yes
Indicator
LEDs
NEMA Rating
NEMA 6P
IP Rating
IP67, IP69
Adjustments
N/A
Barrel Diameter (mm)
30
Lens Material
Polycarbonate
Max Op. Relative Humidity [%]
90% @ 50°C

Number of Pins

Repeatability (µs)

750

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Power Supply/Supply Voltage

10-30 V dc

Special Feature: Intrinsically Safe

Output response time (ms)

Max Op. Temp. (°C)

Operation

Light Operate

Min Op. Temp. (°C)

-40

Quick Disconnect Type

M12 (Euro)

Connection

Integral QD

Outputs

PNP

Input/Output

Discrete

Max Sensing Distance (mm)

200

Housing Style

Rectangular

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Background Suppression (Fixed)

Sensing Mode (General)

Proximity

Power

Sensing Beam

Infrared LED

Main function

Sensor (Photo-electric)

Functions

Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)

Product series / family name

EZ-BEAM series

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Thread size

M30

Response time

3ms / 0.003 s

Material

thermoplastic housing Acrylic lns.

Sub-range name

Q40 DC series

Sensing distance

200mm

Operating mode

Light-ON

Compliant with standard(s)

cULus cCSAus CE

Primary brand

Banner Engineering

Shape

Rectangular

Degree of protection

IP67 NEMA 6P

Design

background suppression system

Light Color

Infrared (IR)

Ambient air temperature for operation

-40...+70 °C

Connection type

Pre-equipped with 4-pin Euro-style M12 connector

Digital outputs

1 x digital output (PNP transistor)

Order code / Manufacturer SKU

45171

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q40S2P6FF200Q Description

Banner Engineering Q40S2P6FF200Q is a fixed-field photo-electric sensor designed for precise detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is equipped with a background suppression system and comes pre-equipped with a 4-pin Euro-style M12 connector for easy connection. Part of the Q40 DC series, it offers a high degree of protection rated at IP67, IP69K, and NEMA 6P, suitable for demanding environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. The sensing distance is set at 200mm, utilizing infrared (IR) light for detection. It operates in Light-ON mode and includes 1 x digital output (PNP transistor; complementary NO/NC) with a quick response time of 3ms / 0.003 s.
