Q25SN6LPQ Banner Proximity Sensors

Q25SN6LPQ on Powermatic Associates
Banner

Part#:Q25SN6LPQ

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:31933

Product Lifecycle:Active

Get a quick Quote!

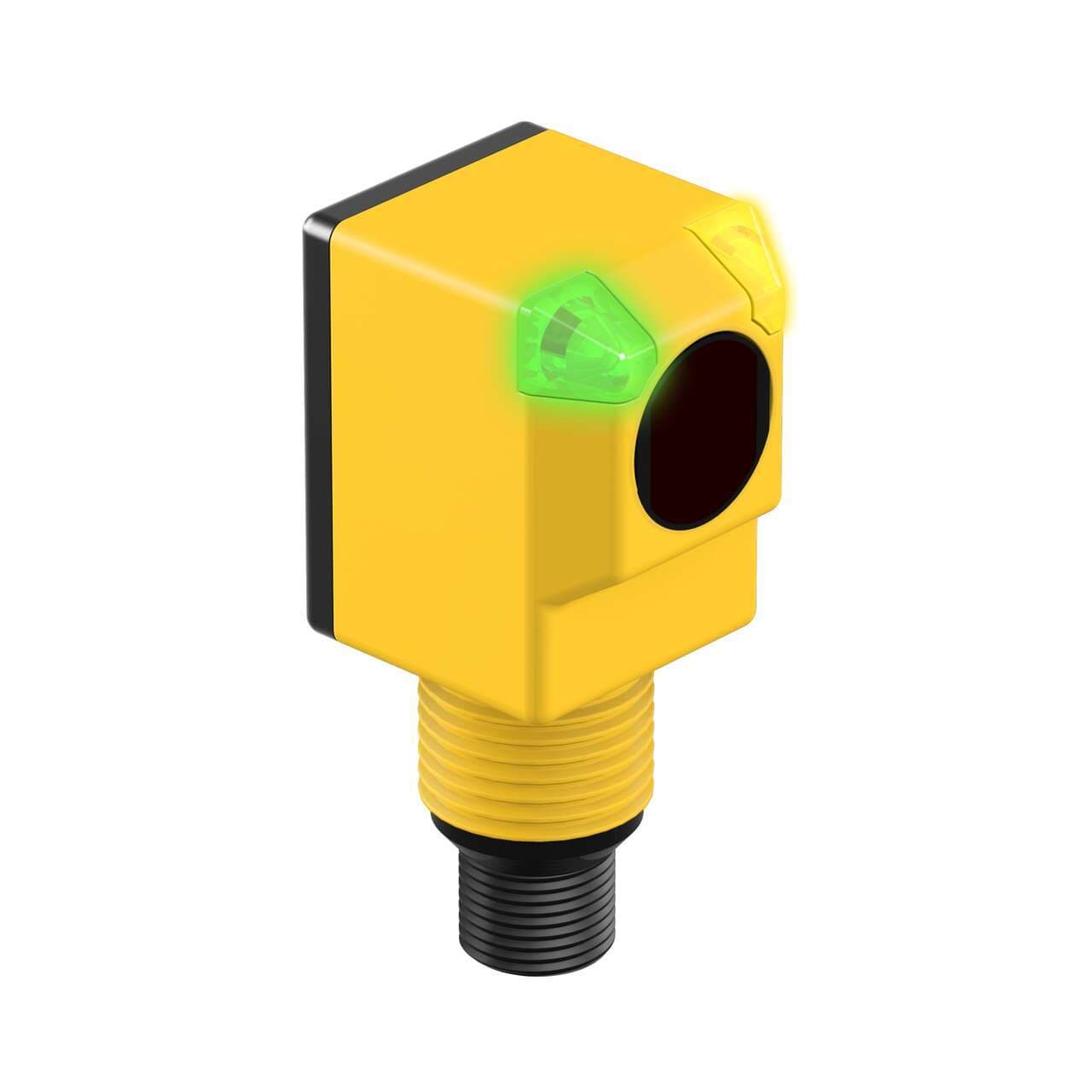

EZ-BEAM Q25 Series: Polarized Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q25SN6LPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    58.059776 g
  • Country Of Origin
    US
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IP Rating
    IP69
  • Delay at Power-up (ms)
    100
  • Repeatability (µs)
    750
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    3
  • Number of Pins
    4
  • Special Feature: Remote Teach
    No
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -40
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Sensing Mode (Detailed)
    Polarized
  • Sensing Mode (General)
    Retroreflective
  • Housing Style
    Rectangular
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    2000
  • Outputs
    NPN
  • Sensing Beam
    Visible Red LED
  • Input/Output
    Discrete
  • Product series / family name
    EZ-BEAM series
  • Sensing distance
    2m
  • Material
    thermoplastic housing Acrylic lns.
  • Main function
    Sensor (Photo-electric)
  • Functions
    Polarized photo-electric sensor green LED (power ON) amber LED (output state)
  • Sub-range name
    Q25 DC series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    680 nm
  • Light Color
    Visible red
  • Degree of protection
    IP69K NEMA 6P
  • Primary brand
    Banner Engineering
  • Design
    retro-reflective mode
  • Thread size
    M18
  • Digital outputs
    1 x digital output (NPN transistor)
  • Compliant with standard(s)
    cULus cCSAus CE
  • Shape
    Rectangular
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -40...+70 °C
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Response time
    3ms / 0.003 s
  • Order code / Manufacturer SKU
    31933

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q25SN6LPQ Description

Banner Engineering Q25SN6LPQ is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M18 threaded mount for secure installation and is equipped with a 4-pin Euro-style M12 connector for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens. It belongs to the Q25 DC series and offers a sensing distance of up to 2m with a visible red light of 680 nm wavelength. The Q25SN6LPQ provides a digital output (NPN transistor; complementary NO/NC) and supports both Light-ON and Dark-ON operating modes. It has a quick response time of 3ms / 0.003 s and is powered by a supply voltage ranging from 10Vdc to 30Vdc (12Vdc / 24Vdc nom.). This sensor is protected to IP69K NEMA 6P standards, ensuring its durability in demanding environments.

Related documents Q25SN6LPQ Specs

Q25SN6LPQ 121518.pdf
