Q25SP6FF100 Banner Proximity Sensors

Q25SP6FF100 on Powermatic Associates
Banner

Part#:Q25SP6FF100

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:31932

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM Q25 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q25SP6FF100 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    159.210792 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Lens Material
    Acrylic
  • IP Rating
    IP69
  • Output response time (ms)
    3
  • Max Op. Temp. (°C)
    70
  • Outputs
    PNP
  • Connection
    Cable
  • Max Sensing Distance (mm)
    100
  • Input/Output
    Discrete
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Housing Style
    Rectangular
  • Cable Length (m)
    2
  • Sensing Beam
    Infrared LED
  • Sensing Mode (General)
    Proximity
  • Feature: Audible
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    Yes
  • Feature: Ecolab Certified
    Yes
  • Adjustments
    N/A
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Special Feature: Intrinsically Safe
    No
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    4
  • Repeatability (µs)
    750
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Power
    DC
  • Product series / family name
    EZ-BEAM series
  • Sensing distance
    100mm
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Order code / Manufacturer SKU
    31932
  • Sub-range name
    Q25 DC series
  • Light Color
    Infrared (IR)
  • Degree of protection
    IP67 NEMA 6P
  • Compliant with standard(s)
    cULus cCSAus CE
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    880 nm
  • Operating mode
    Light-ON Dark-ON
  • Material
    thermoplastic housing Acrylic lns.
  • Design
    background suppression system
  • Thread size
    M18
  • Digital outputs
    1 x digital output (PNP transistor)
  • Main function
    Sensor (Photo-electric)
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
  • Shape
    Rectangular
  • Response time
    3ms / 0.003 s
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q25SP6FF100 Description

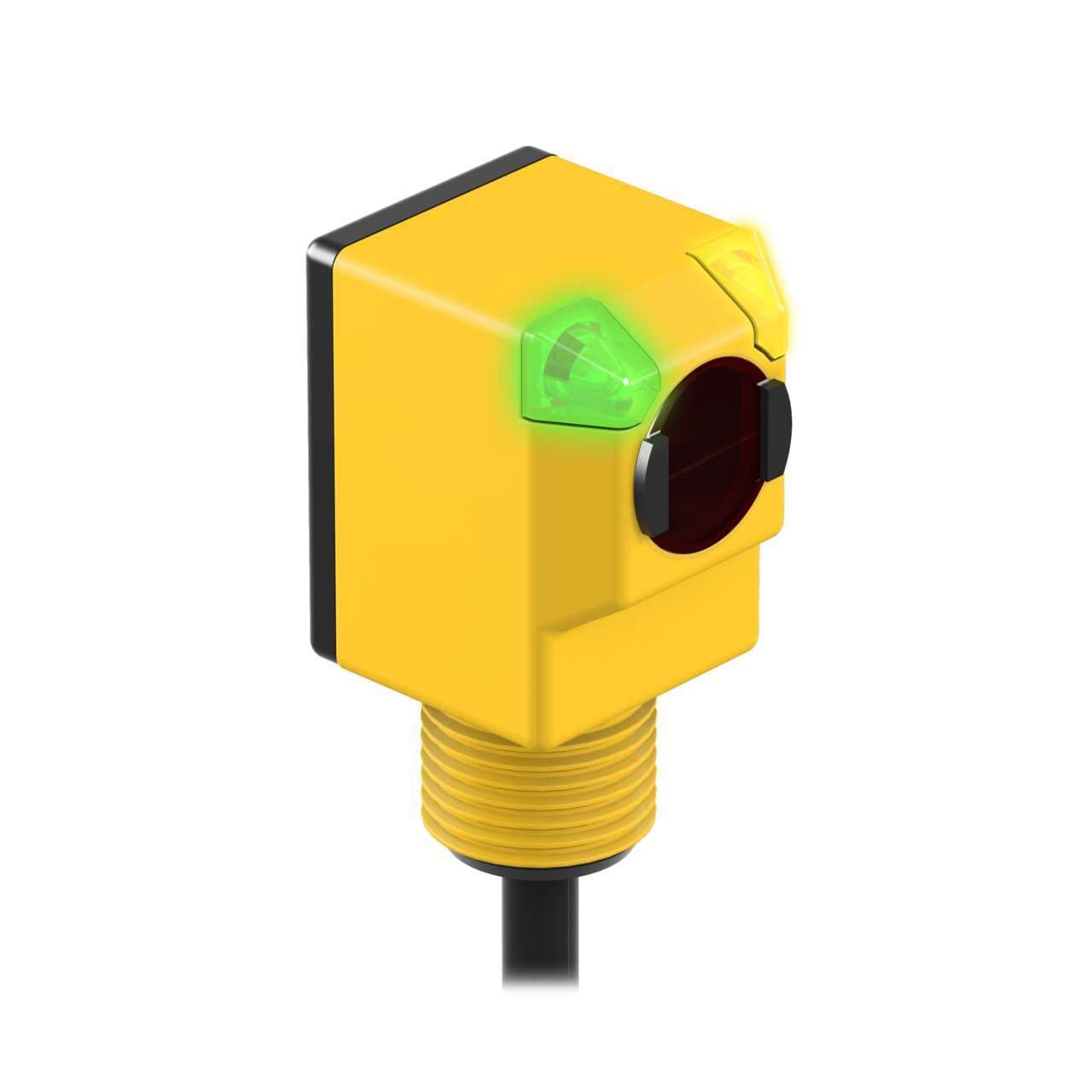

Banner Engineering Q25SP6FF100 is a fixed-field photo-electric sensor designed with a background suppression system. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q25 DC series and offers a high degree of protection rated at IP69K NEMA 6P, suitable for demanding environments. It is powered by a supply voltage ranging from 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The Q25SP6FF100 has a rectangular shape with a thermoplastic housing and an acrylic lens. It is capable of sensing objects up to 100mm away and utilizes infrared light with a wavelength of 880 nm. This sensor operates in both Light-ON and Dark-ON modes and includes a digital output (PNP transistor; complementary NO/NC) with a quick response time of 3ms. It is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for easy connection.

Related documents Q25SP6FF100 Specs

Q25SP6FF100 121518.pdf
