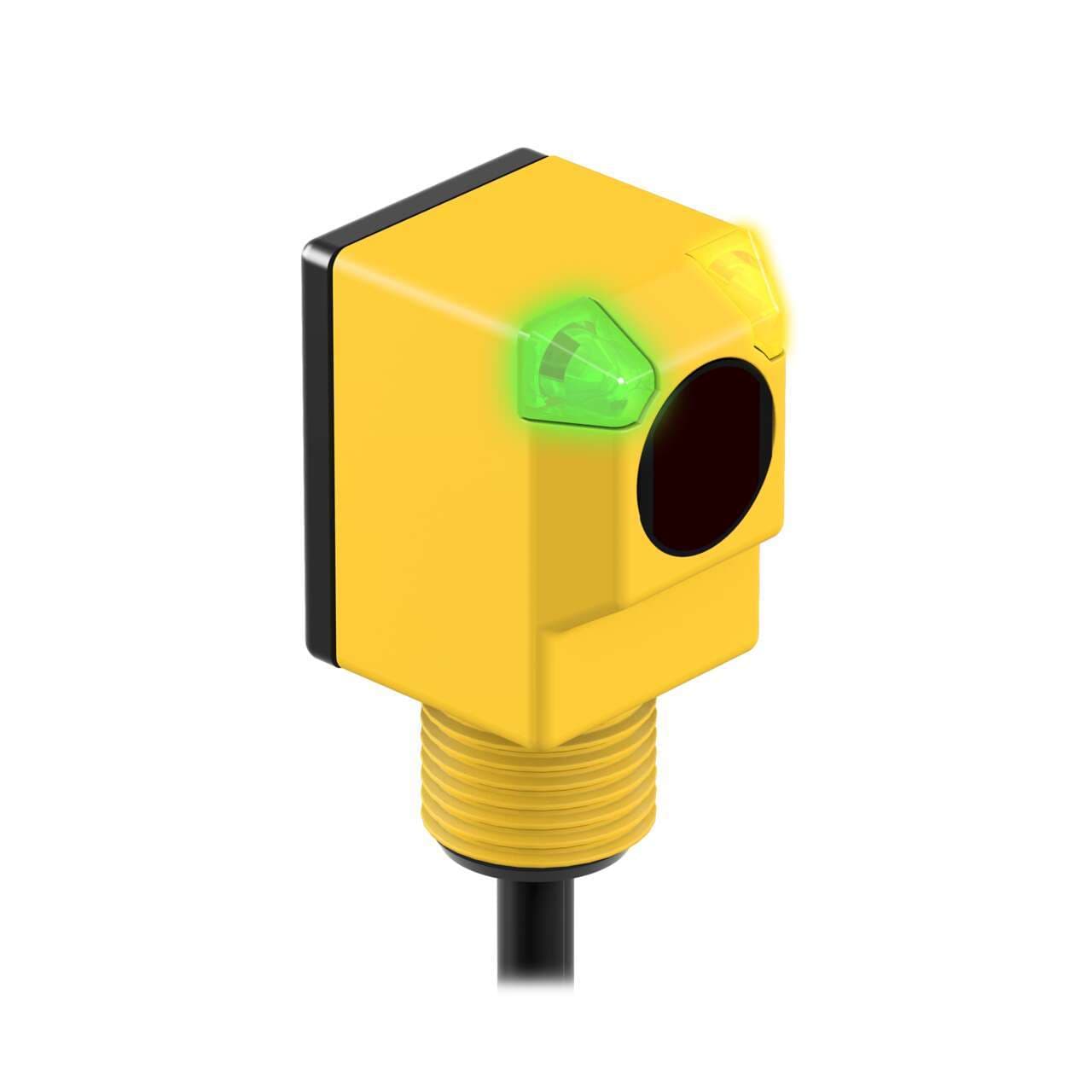

Q25SP6LP Banner Proximity Sensors

Q25SP6LP on Powermatic Associates
Banner

Part#:Q25SP6LP

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:31925

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM Q25 Series: Polarized Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q25SP6LP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    US
  • Delay at Power-up (ms)
    100
  • Sensing Mode (General)
    Retroreflective
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP69
  • Number of Pins
    4
  • Repeatability (µs)
    750
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3
  • Max Op. Temp. (°C)
    70
  • Outputs
    PNP
  • Connection
    Cable
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    2000
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Polarized
  • Housing Style
    Rectangular
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Cable Length (m)
    2
  • Primary brand
    Banner Engineering
  • Design
    retro-reflective mode
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    2m
  • Thread size
    M18
  • Material
    thermoplastic housing Acrylic lns.
  • Degree of protection
    IP67 NEMA 6P
  • Wavelength
    680 nm
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Operating mode
    Light-ON Dark-ON
  • Light Color
    Visible red
  • Product series / family name
    EZ-BEAM series
  • Response time
    3ms / 0.003 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cULus cCSAus CE
  • Shape
    Rectangular
  • Sub-range name
    Q25 DC series
  • Functions
    Polarized photo-electric sensor green LED (power ON) amber LED (output state)
  • Digital outputs
    1 x digital output (PNP transistor)
  • Order code / Manufacturer SKU
    31925

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q25SP6LP Description

Banner Engineering Q25SP6LP is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M18 threaded mount for secure installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. This sensor is part of the Q25 DC series and operates within an ambient air temperature range of -40 to +70°C. It boasts a thermoplastic housing with an acrylic lens and is capable of sensing distances up to 2m. The Q25SP6LP emits visible red light with a wavelength of 680 nm and offers both Light-ON and Dark-ON operating modes. It provides a digital output via a PNP transistor, supporting complementary NO/NC configurations, and has a quick response time of 3ms / 0.003 s. The sensor is protected to IP69K and NEMA 6P standards, ensuring durability in harsh environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values.
