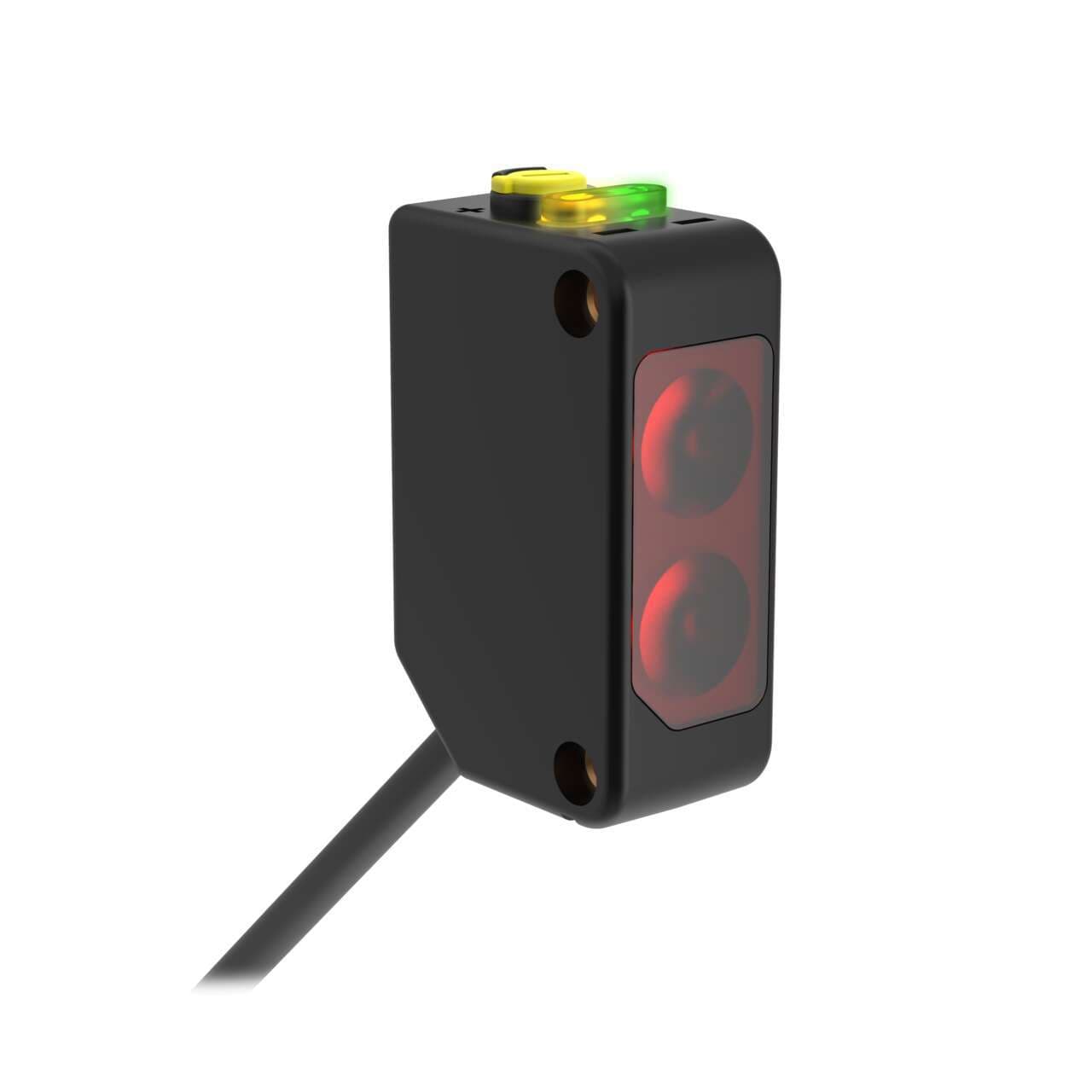

Q20PDLQ7 Banner Proximity Sensors

Q20PDLQ7 on Powermatic Associates
Banner

Part#:Q20PDLQ7

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:77754

Product Lifecycle:Active

Get a quick Quote!

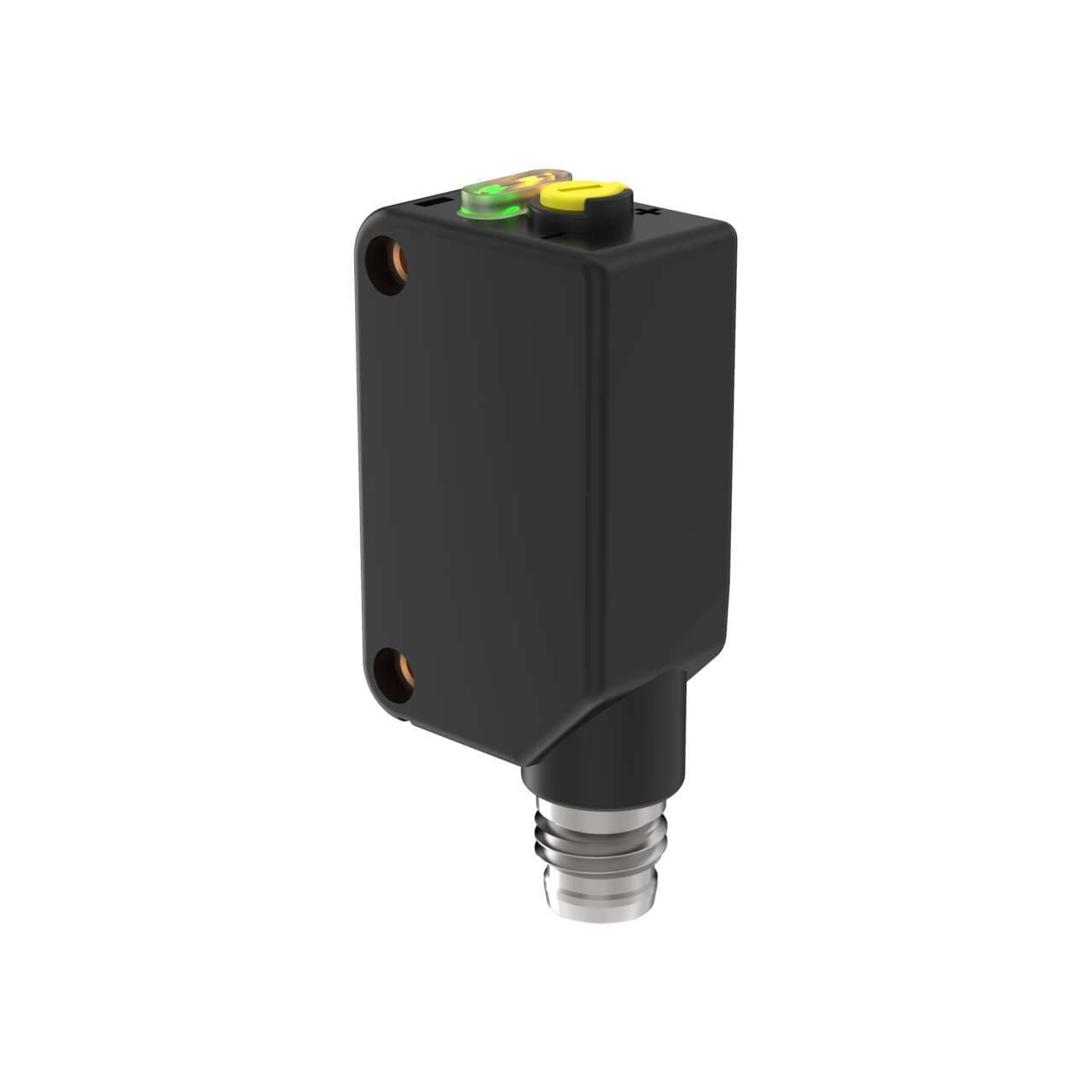

WORLD-BEAM Q20 Series: Long Range Diffuse (Red); Range: 800 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; M8 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20PDLQ7 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • EPLAN Cabinet Installable
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Barrel Diameter (mm)
    N/A
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Feature: Timing (Hold/Delay)
    No
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    NEMA 6
  • Special Feature: Remote Teach
    No
  • IP Rating
    IP67
  • Number of Pins
    4
  • Max Op. Temp. (°C)
    60
  • Min Op. Temp. (°C)
    -20
  • Repeatability (µs)
    155
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    655
  • Connection
    Integral QD
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    0.8
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    M8 (Pico)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    800
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular
  • Power
    DC
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20PDLQ7 Description

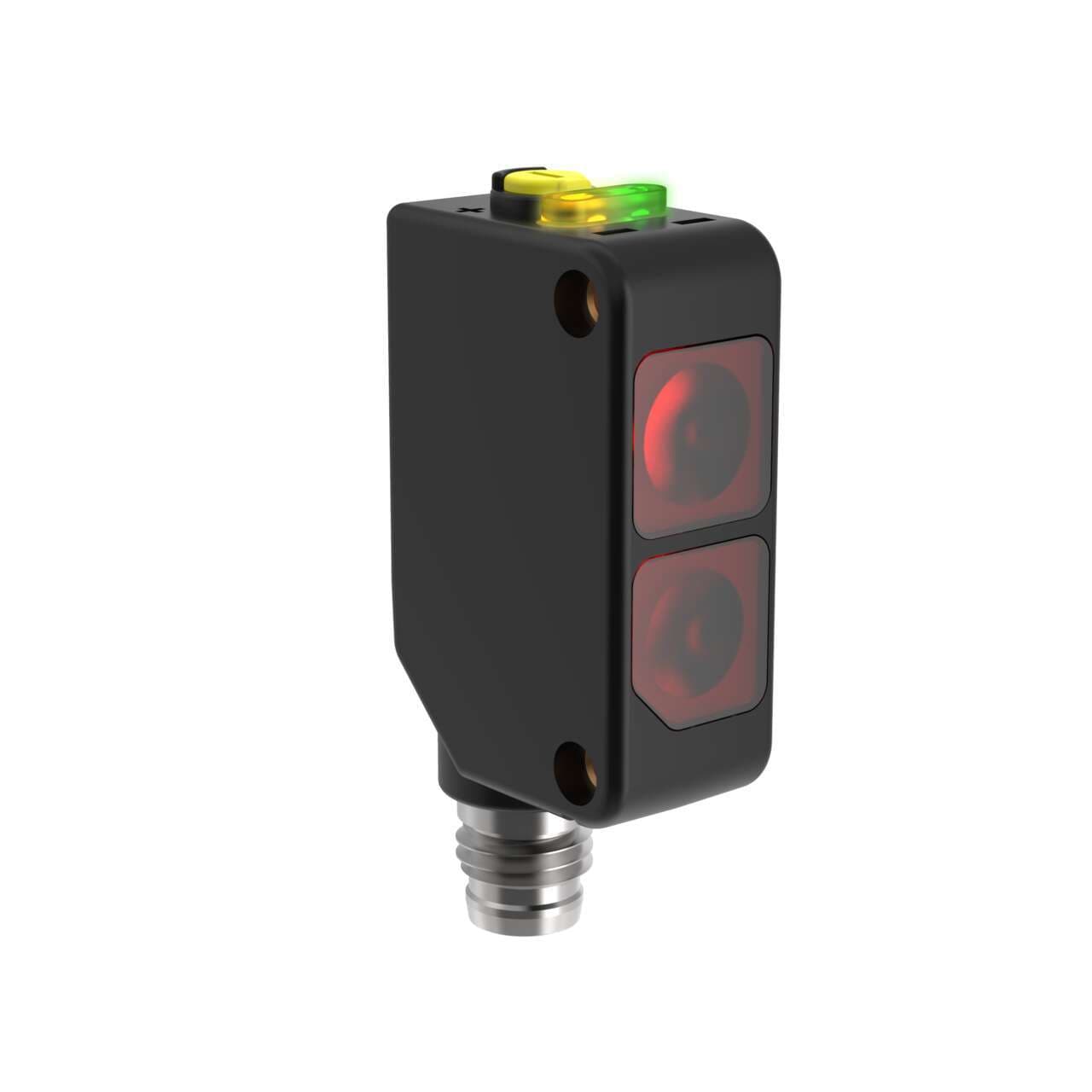

Banner Engineering Q20PDLQ7 is a long-range photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60 degrees Celsius and features a diffuse mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Pico-style M8 connector for easy installation. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing, offering a robust design. With a sensing distance of up to 800mm and utilizing visible red light at a wavelength of 624 nm, it supports both Light-ON and Dark-ON operating modes. The Q20PDLQ7 features a single digital output (PNP transistor) and responds rapidly with a response time of 0.8ms / 0.0008 s.

Related documents Q20PDLQ7 Specs

Q20PDLQ7 127816.pdf
