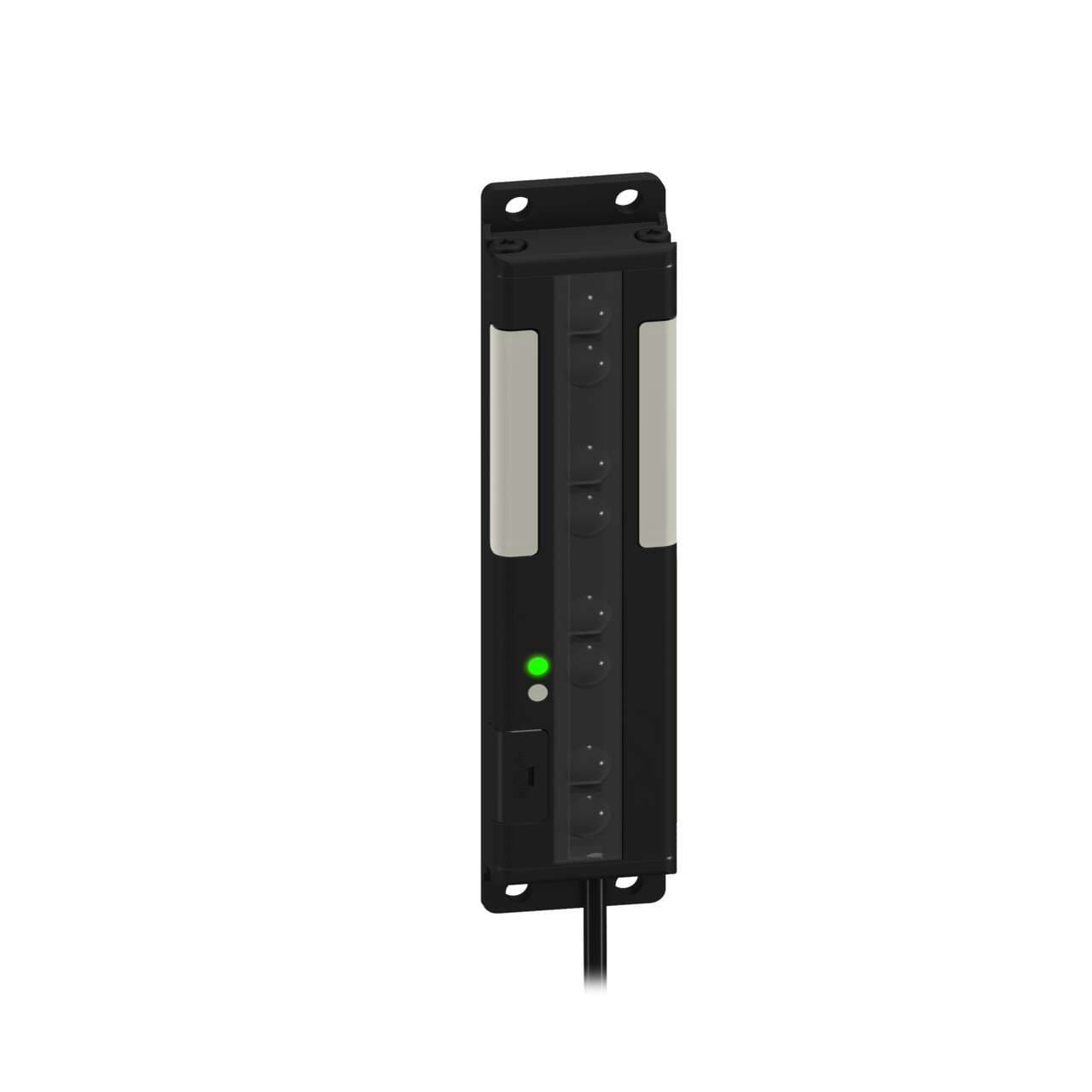

PVD100QPMA9 Banner Pick-to-Light Sensors

Banner Engineering PVD100QPMA9 is a photo-electric array sensor designed for a variety of applications requiring diffuse or retro-reflective sensing modes with custom settings. It operates within an ambient air temperature of up to +50°C and features a pre-wired 2m / 6.5ft cable with bare end flying leads for connection. This sensor has dimensions of 225mm in array length, 30mm in width, and 267mm in depth, housed in an aluminium body with an acrylic clear window, ensuring durability. It offers a sensing distance of up to 2m in retro-reflective mode and 400mm in diffuse mode. The PVD100QPMA9 operates on a supply voltage of 12Vdc-30Vdc (24Vdc nominal) and is equipped with a single digital output (PNP/NPN transistor). It provides a degree of protection rated at IP62 NEMA 2 and features a rectangular shape. The sensor emits light in green and red colors, with wavelengths of 525 nm and 625 nm, respectively, and supports both Normally Open (NO) and Normally Closed (NC) operating modes.
