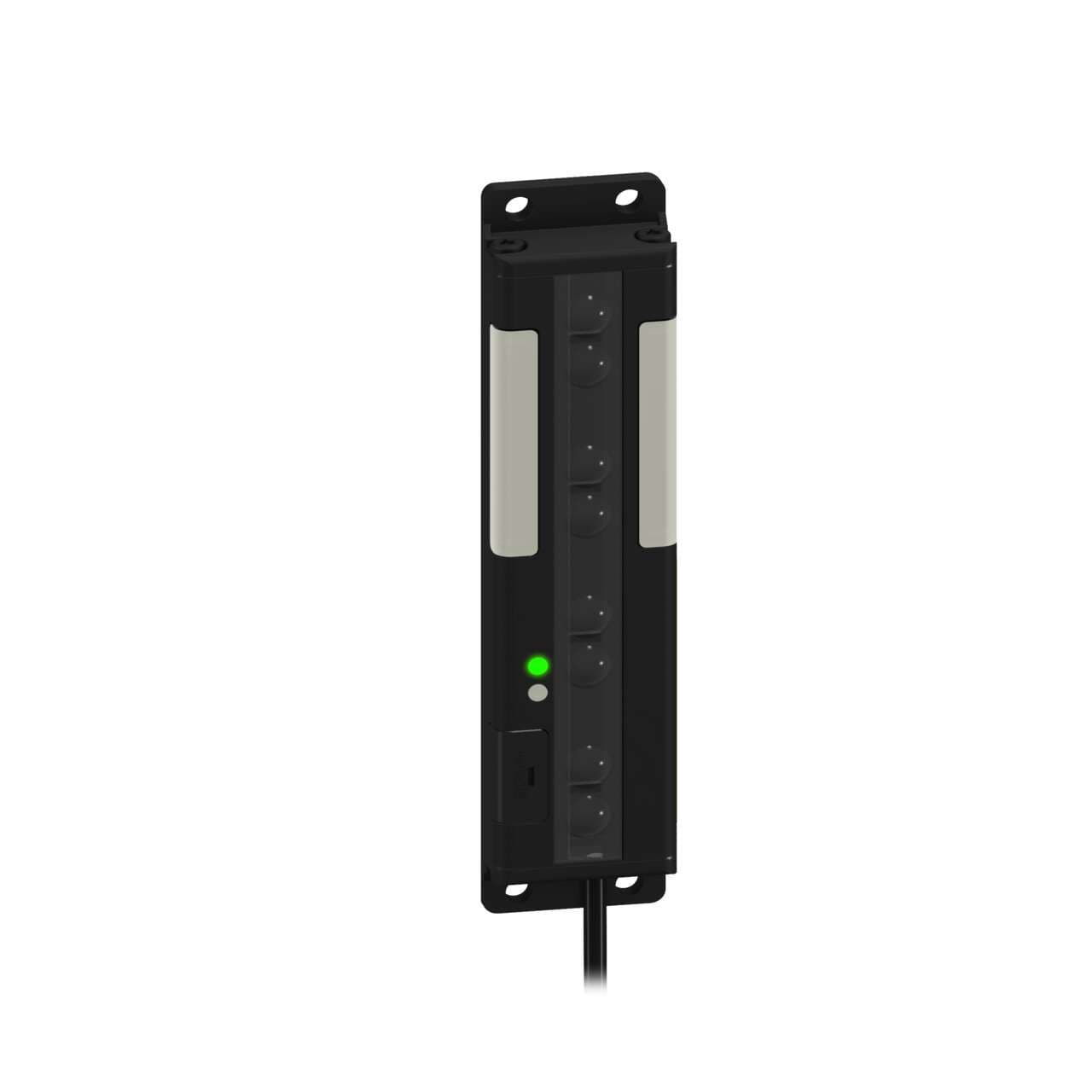

PVD100QNA-73475 Banner Pick-to-Light Sensors

PVD100QNA-73475 on Powermatic Associates
Banner
  • PVD100QNA-73475
  • PVD100QNA-73475

Part#:PVD100QNA-73475

Alt. Part#:73475

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

PVD Series: Parts Verification; 100 mm 4 channel; Range: up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 150 mm (6 in) 5-pin M12 PVC Pigtail QD; Custom Settings; See Literature Insert

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD100QNA-73475 on Powermatic Associates is $367.00. Order now.

About the product

Banner Engineering PVD100QNA-73475 is a photo-electric array sensor designed for a variety of applications requiring diffuse or retro-reflective sensing modes with custom settings. It operates within an ambient air temperature of up to +50°C and features a pre-wired 6-inch (150mm) pigtail terminated with a 5-pin M12 connector for easy installation. The sensor has dimensions of 100mm in array length, 30mm in width, and 138mm in depth, housed in an aluminium body with an acrylic clear window, ensuring durability. It offers a degree of protection rated at IP62 NEMA 2 and operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The PVD100QNA-73475 provides a sensing distance of up to 2m in retro-reflective mode and 400mm in diffuse mode, utilizing green and red light with wavelengths of 525 nm and 625 nm, respectively. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 1 x digital output (PNP/NPN transistor) with a current consumption of 88mA / 0.088 A.
