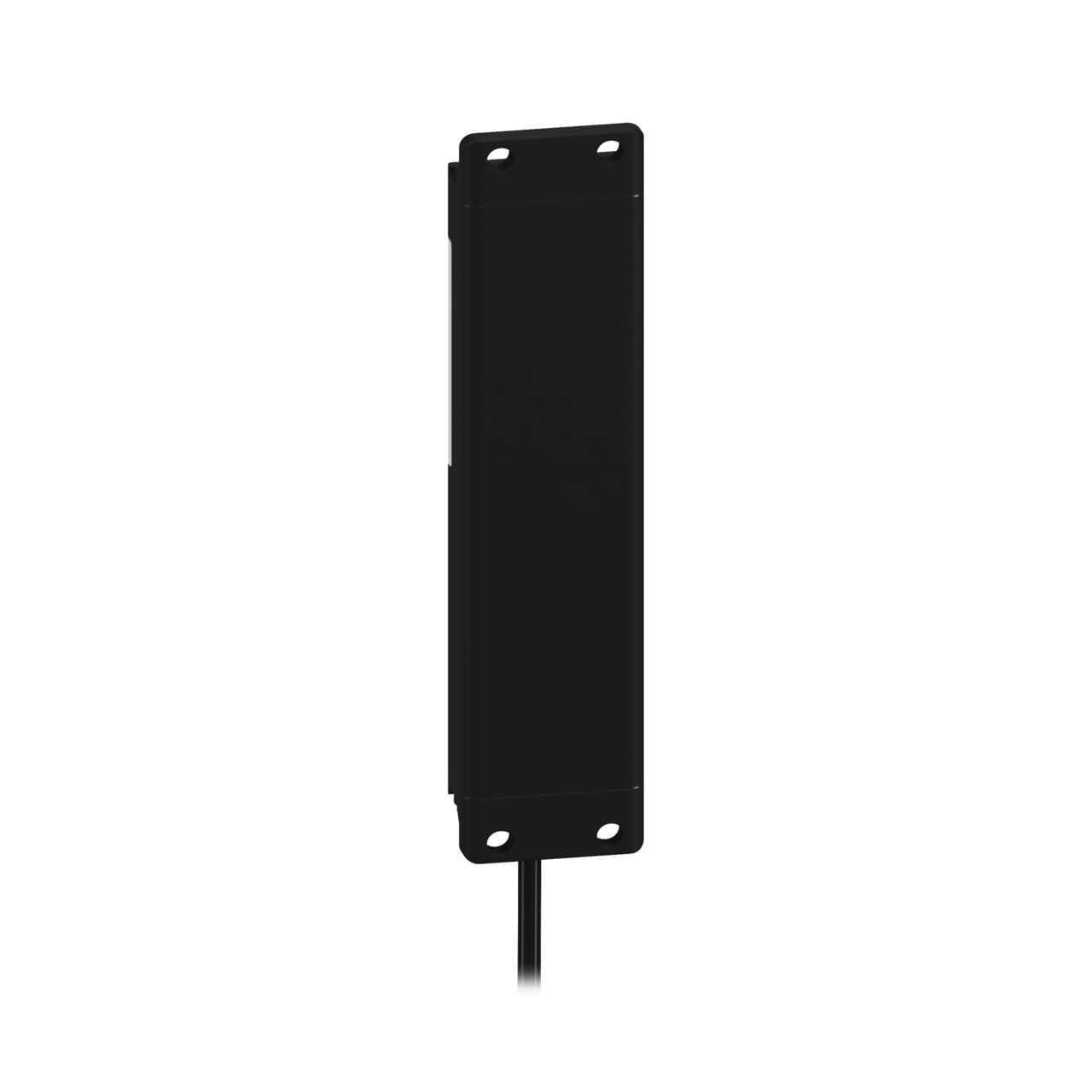

PVD100QPMA19 Banner Pick-to-Light Sensors

PVD100QPMA19 on Powermatic Associates
Banner
  • PVD100QPMA19
  • PVD100QPMA19

Part#:PVD100QPMA19

Alt. Part#:81120

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

PVD Series: Parts Verification; 100 mm 4 beams; Retroreflective Range: up to 2 m, Diffuse; up to 400 mm; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 150 mm (6 in) 5-pin M12 Pigtail QD; Custom switch settings

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD100QPMA19 on Powermatic Associates is $367.00. Order now.

About the product

Banner Engineering PVD100QPMA19 is a photo-electric array sensor designed for diffuse/retro-reflective sensing modes, modified specifically for automotive applications. It operates within an ambient air temperature of +50°C and features a net height of 15 mm. This sensor is pre-wired with a 2m / 6.5ft PUR cable that terminates with a 5-pin M12 connector. It has a 100mm array length and offers a degree of protection rated at IP62 NEMA 2. The supply voltage required ranges from 12Vdc to 30Vdc, with 24Vdc being nominal. Its rectangular shape is constructed from an aluminium housing with an acrylic clear window and a polyurethane (PUR) cable sheath. The net width and depth are 30 mm and 138 mm, respectively. The sensing distance is up to 2m in retro-reflective mode and 400mm in diffuse mode. It emits light in green and red colors, with wavelengths of 525 nm and 625 nm. The operating modes include NO (Normally Open) and NC (Normally Closed), and it has 1 x digital output (PNP/NPN transistor).
